    PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-E-80+40
    Certification : CE,ISO,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets/year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    PVC / PE Insulation Wires And Cable Extruding Machine Speed 300M/Min

    Wires And Cables Extruding Machinery With Speed Of 300 M/Min PVC/ PE Insulation

    Product Description

    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation

    This equipment is suitable for outer surface extrusion of wires and cables with insulation materials such as PVC/PE.

    Specification
    No.ItemsFeatures
    1Inlet Wire Diameter1~15 mm
    2Finished Wire Diameter2~20 mm
    3Cross Sectional Area1~10square mm
    4Extrusion SpeedMax300m/min
    5Extrusion Capacity200kg/h
    6Installed Capacity65kva
    7Voltage380V, can be customized
    8Weight4500 kg
    9Measurement (L*W*H)26*3.5*3.5 m
    10Workers recommendation3 workers
    Main Parts
    1400-630 motorized pay-off stand
    25-wheel Straightening device
    3
    1. wheel tension stand
    480 Host extruder
    580 Adjustable extrusion head
    6Φ40mm vertical injection machine
    775KG Automatic drying and feeding machine
    8PLC Electric control box
    91.5m Movable water tank with cover
    10Diameter tester
    11High speed printing machine
    1212m Fixed water tank with cover and leak-proof


    Details Images
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE InsulationThe straightening device
    1. Wheels 5*Φ60mm, dual grooves on each
    2. Treatment Chromed and anodized for long-term usage
    3. Bearing 6000, 6202
    4. Material Q-235-A/Q-245-A/#45



    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation The pay-off stand
    1.Bobbin size 400-630 mm
    2.Loading 500 kg
    3.Pay-off speed 500 m/min
    4.ension 5kg magnetic powder clutch
    5.Main motor+Lift motor 3.7 kw + 0.75 kw
    6.Material Q-235-A/Q-245-A/#45
    Factory Picture

    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation
    Company Profile

    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
    Our vision: To make wire & cable manufacturing and using more humanized.
    Our target: More professional customer service, struggle for employees' dreams.
    We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.

    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation

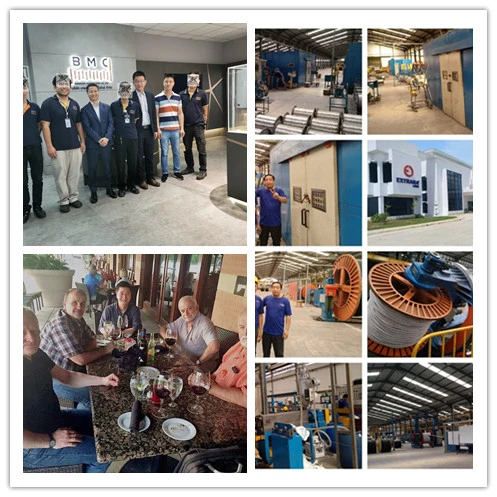

    Customer Cases
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation

    Exhibitions & Certifications
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation

    Product packaging
    Wires and Cables Extruding Machinery with Speed of 300 M/Min PVC/ PE Insulation
    FAQ

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
    Mid East(17.00%),
    Southeast Asia(16.00%),
    Eastern Asia(13.00%),
    South Asia(10.00%),
    South America(8.00%),
    Eastern Europe(4.00%),
    North America(3.00%),
    Northern Europe(3.00%),
    Southern Europe(3.00%),
    Oceania(2.00%),
    Western Europe(2.00%),
    Central America(2.00%),
    There are 5-10 professional workers in HOOHA.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After
    service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese
