    High Speed Copper Wire Bunching Machine 0.38-1.7mm 15-25HP Power

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 60/800/1000
    Certification : CE,ISO
    Price : 15000-40000 USD /unit
    Payment Terms : Western Union, MoneyGram
    Supply Ability : 20 units/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

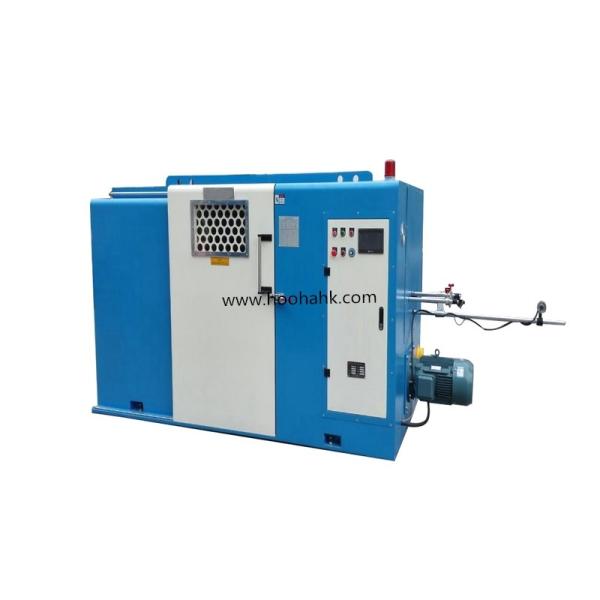

    High Speed Copper Wire Bunching Machine 0.38-1.7mm 15-25HP Power

    High Speed Copper Wire Bunching Machine For 0.38-1.7mm 15-25HP Power


    Algeria High Speed Copper Wire Bunching Machine For 0.38-1.7mm , 15-25HP Power


    Application of the wire bunching machine


    Suit for twisting copper wire , tin-plated wire , naked copper wire etc from 0.5mm2 - 16 mm2 conductor


    1.The specifications of 800-1000 bunching machine


    Machine model8001000
    TwistingApply to over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS,CCA etc supper fine conductor
    Twisting section1.5mm2-10mm26-16mm2
    Diameter of single wireΦ0.29-Φ1.0mmΦ0.38-Φ1.7mm
    Twisting distance27.71mm-130.56mm35-200mm
    Gross weightMAX 900kgMAX 1200kg
    Max highaxis rotation speed1200RPM(2400t/min)800RPM(1600t/min)
    Twisting directionTo left or right
    Flat cablePolish rod traverse unit, pitch&throw adjustable
    Taking-up tension trackTension adjustable, pulled wire no deformation
    Auto-stop machine1.Autonomic brake in case of broken wire interon or extenior
    2.When the couner has to your clesived our put length, warning sound will be heard and the machine stops.
    Machine using bearingMain bearing made in Sweden, others in Japan
    Power15HP controlled inverter25HP controlled inverter
    Noise levelApprox 75dBApprox 80dB
    Machine Dimension(mm)(L)3673×(W)1550×(H)1650(L)4473×(W)2200×(H)2300
    Net weightApprox 4500kgApprox 7500kg

    High Speed Copper Wire Bunching Machine 0.38-1.7mm 15-25HP Power

    High Speed Copper Wire Bunching Machine 0.38-1.7mm 15-25HP Power


    What kind of exhibition that HOOHA team are attending ?


    A : HOOHA is not only on shanghai , guangzhou , we are also attending India , Thailand , Russia ,

    Indonesia and German exhibition



    What can HOOHA do for us if we are the new one to the wire and cable field ?


    1.Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

    2.After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

    3.Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

    4.Production self-inspection team ( 5 ) , are over 15 years experience .



    PY-Φ300mm PLC High speed bunching machine
    Inlet wire dia0.04-0.28mm
    Stranding section area0.035-1mm2
    Lay length2.23-34.88mm(adjustable according to customer requirement)
    Direction of layOperation for right and left
    Take up bobbin sizeΦ300mm
    Max rotating speed3000RPM/min(6000TPM)
    Main motor power5HP
    Inverter power5HP
    Tension control methodMechanism friction
    Protection

    Automatically brake/stop

    A. Wire inside and outside is broken

    B. The preset length is arrived

    Brake modeElectromagnetic brake
    Traversing methodRolling wire with ring drive units, row pitch and breadth are adjustable
    Operation typePush button control/Operate on the touch screen
    Bobbin liftingManual hydraulic lifting
