Electrical Copper Wire Making Machine , 3HP / 5HP Cable Twisting Machine

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	HH-200/300
Certification :	CE ISO
Price :	negotiable
Payment Terms :	L/C, T/T, Western Union, MoneyGram
Supply Ability :	20 sets/month
Delivery Time :	20 working days

Add to Cart

Product Details
Company Profile

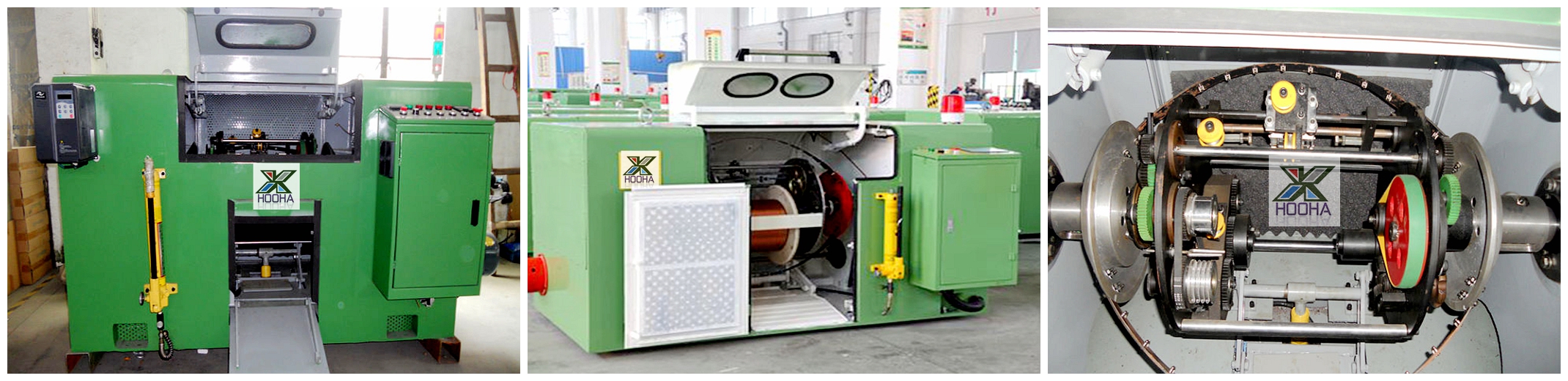

Electrical Copper Wire Making Machine , 3HP / 5HP Cable Twisting Machine

Copper wire stranded 200/300mm high speed twisting machine mainly used for 19-32AWG
Wire Bunching Machine Electrical Copper Wire Making Machine Cable Twisting Machine

1. Application of the equipment

Auto high speed twisting machine apply to copper wire twisting for computer flat cable,earphone cord,electronic wire,power cable,telephone cable,automatic cable etc.

2. The specifications of 650-1000 bunching machine

Machine model	HH-200	HH-300
Twisting	Apply to twising of over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS, CCA etc or cored wire twisting
Finished wire range	19-32AWG
Twisting section	0.0014-0.0035mm^2	0.0137-0.45mm^2
Diameter of single wire	0.016-0.08mm	0.05-0.16mm
Twisting distance	0.8-4.0mm	1.6mm-17.1mm
Gross weight	Max 20kg	Max30kg
Highest axis rotation speed	5000rpm(10000t/min)	3000rpm(6000t/min)
Twisting direction	to left or right
Traversing	Polish rod traverse unit, pitch & throw adjustable
Taking-up tension	Tension adjustable, pulled wire no deformation
Auto-stop machine	1, automatic brake in case of broken wire interon or extenior 2, automatic meter counting, and automatic brake when it reaches the meter.
Machine using bearing	Main bearing made in Sweden, others in Japan
Power	3HP controlled inverter	5HP controlled inverter
Noise level	Approx 75dB
Machine Dimension(mm)	(L)1800X(W)750X(H)850	(L)1900X(W)750X(H)950
Net Weight	Approx700kg	Approx850kg

3. Timely delivery

Our shipments are very timely and the process is very systematic.

4. Know about us

Company name	HOOHA Co.,Ltd
Established	2003
Main products	Upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
Value added service	Include factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
Factory location	Humen Town,Dongguan City,Guangdong province.
Manufacturing Center	4000 sqm
Showroom	More than 2000 sqm.

5. FAQ1:What is your product brand to support different customer in market ?

All configurations are first-rate, we don't like to talk about configuration because, as a company that considers quality first, a first-class brand is its basic requirement.
Motor: Siemens
Inverter : available to Japan Yaskawa, Siemens, America Emerson
Temperature Control Meter : Japan RKC, Omron
PLC : German Siemens , Japan Misubishi
Auxiliary Relay: Japan Omron
Ammeter and Voltmeter: Taiwan Risesun
Indicator, Switch and Button : Taiwan TEND
Contactor: Taiwan Shihlin ,Schneider
Relay: Japan Omron
Line Speed Meter: Taiwan FOTEK/Yangming
Bearing : NSK, SKF

6. FAQ2:What is your company payment terms ?

Terms of Payment : T/T , L/C,Western Union

The detailed payment method can be negotiated according to different situation.

having 24 years experiences on wire and cable making machines, we have a wire and cable factory which can provide more professional advise for customer in their wire and cable project.With ten years of export experience, we can support customers successfully with various payment terms.

7. FAQ3:Does your team have rich experience?

Our team has 12 years of export experience, which can greatly help your purchase to proceed smoothly. Our technical team and engineer team can flexibly provide overseas support.

1).Our Pre-sales team:machine designers ( 5 member) and wire and cable engineers(5) are over 15 years experience
2).Dedicated service team:who is specialized in wire and cable engineering field (10) , are over 8-10 years experience
3).After service team:electricity engineers (10), mechanical Engineers(8),software engineer(5) are over 10 years experience
4).Production self-inspection team:production self-inspection engineers(5) , are over 15 years experience.

8. Choose Us

1.We are the cable equipment manufacturer.
2.Professional engineer team with long-term research and development in the field of cable equipment.
3.Provides high frequency capacity manufacturing machines. Keep the machine running all day.
4.Our machine use the international qualified brand components,like Siemens,Omron,Nsk,lg etc
5.Technical support and spare parts service.
6.Rich experience in overseas technical training and operation training.
7.Professional and responsible team to ensure efficient communication,help to save time and human cost for customers.
8.Systematic experienced foreign trade team to ensure service quality.
9.Working hard to meet customers’ needs.

9. Detailed address

Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China

Hongkong airport to Humen by boat 2 hours
Guangzhou airport to Humen by car 2 hours
Shenzhen airport to Humen by car 1 hour
Guangzhou South high speed train station to Humen 20 minutes
Shenzhen North high speed train station to Humen 20 minutes
