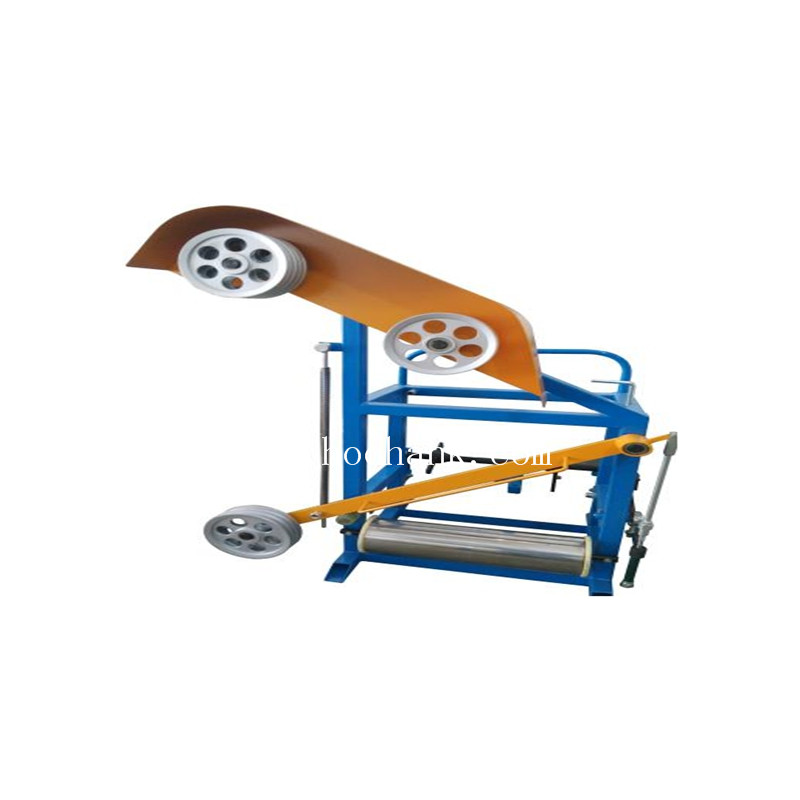

    630/1250 Semi-automatic Cable Coiling Machine winding machinery

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-630
    Certification : ISO, CE, SGS
    Price : USD65000/set
    Payment Terms : T/T
    Supply Ability : 1unit30days
    Delivery Time : 60days
    • Product Details
    • Company Profile

    630/1250 Semi-automatic Cable Coiling Machine winding machinery

    Product Description
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Application:
    630 Coiling Machine is mainly used for the coiling of 0.5-6mm2 electric wire and small section cable.The product has high production efficiency and the quality of the cable is at the advanced level of the same type of products at home and abroad.

    1250 cable coiling machine is mainly used for the coiling of 10-70mm2 electric wire and medium section cable.The product has high
    production efficiency and the quality of the cable is at the advanced level of the same type of products at home and abroad.
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630 Model:
    Suitable Wire Range
    0.5-6mm2
    Main Machine Rotation Speed
    MAX 600 rpm
    Motor Power
    3 HP
    Wire Coil Outer Diameter
    <= Φ320mm
    Wire Coil Height
    30-100mm
    Capacity
    700 Coils(Per 8 Hours)
    1250 Model:
    Suitable Wire Range
    10-70mm2
    Main Machine Rotation Speed
    MAX 500 rpm
    Motor Power
    4 HP
    Wire Coil Outer Diameter
    <= Φ 450mm
    Wire Coil Height
    40-100mm
    Capacity
    500 Coils(Per 8 Hours)
    Specification
    Other Model:
    Machine Model
    Height
    Outside Diameter
    Inside Diameter
    C0836
    40-80
    180-360
    120-200
    C1246
    50-120
    200-460
    140-220
    C1860
    60-180
    220-600
    180-250
    C2480
    80-240
    300-800
    250-320
    630/1250 Semi-automatic Cable Coiling Machine winding machinery

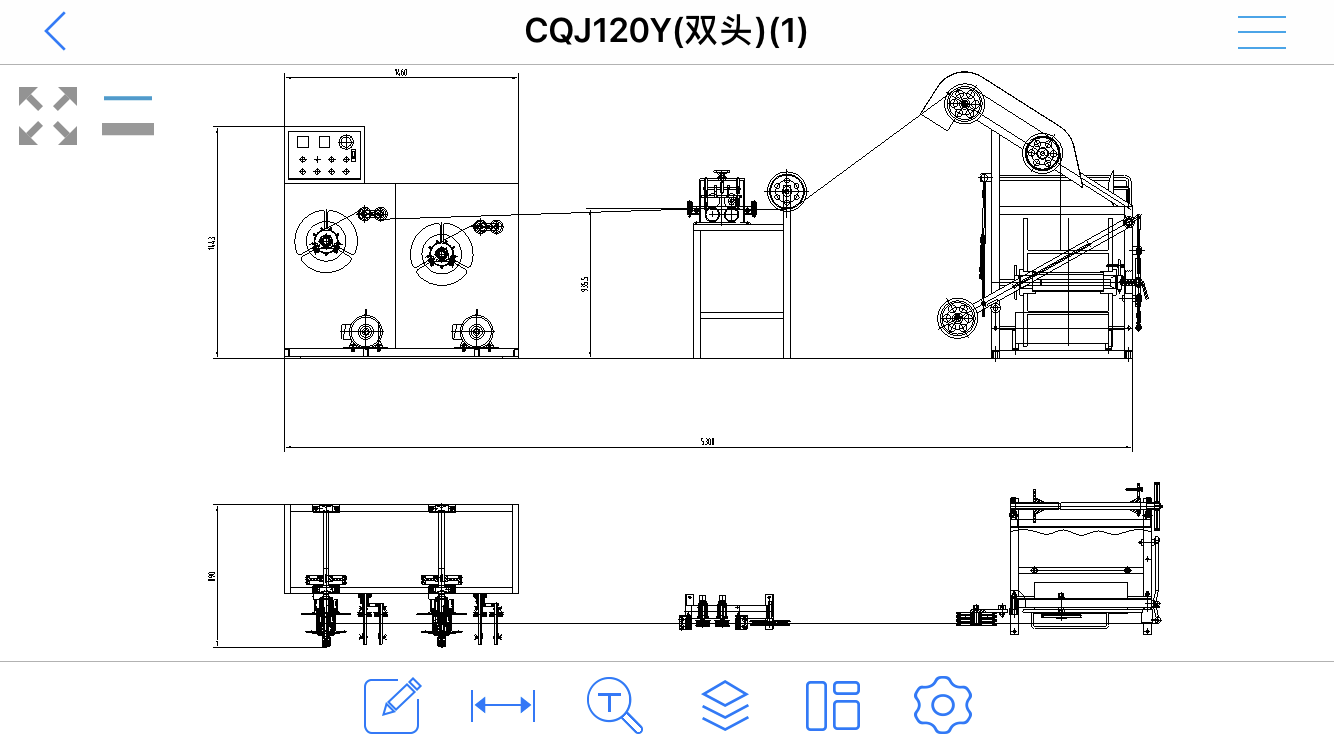

    630 Model Equipment Layout
    1250 Model Equipment Layout
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    The Technical Team
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery

    Chen Senior Engineer
    Machine design for 30 years

    Hu Machine Designer
    20 years engineering design experience

    Bi Head Engineer
    Responsible for project engineering

    Why choose us?

    1. We are the cable equipment manufacturer.
    2. Professional engineer, long-term to research and development for to cable equipment .
    3. High frequency capacity manufacturer machine is provide. Guarantee the machine all weather running .
    4. Our machine use the international qualified brand, like Siemens, Omron, NSK, Lg, etc.
    5. Technical support and spare parts service.
    6. Well-experienced in overseas to support customer with technical,training,operating.
    7. Responsible and Good communication and customer service skills,and save time and human cost for customers.
    8. Complete Foreign Trade Team.
    9. Working efficiently,quickly response to customer needs.
    Professional Engineers and Experienced Sales Team
    Name
    Education
    Position
    Mainly responsible for project
    Specializing in project
    Working history ( year )
    Zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15
    Xiaohua Hu
    college
    Vis general engineer
    The total project design and planning
    net cable,data cable machine
    10
    Changhong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25
    Xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15
    Lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16
    Zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15
    Jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7
    Xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10
    Changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10
    Haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8
    Sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Our professional sales and engineering team
    Customer Cases
    HOOHA provides technical support to overseas customer service
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Dubai
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Algeria
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Syria
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Egypt
    Pre-sale
    1.Professional engineer team provide customized design and machine arrangement drawing service 2.Professional engineer team can
    visit customers's company in person and provide face-to-face service 3.Professional trading system provide high-efficient communication 4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
    managers,cable. making engineers would give you more detailed consultant service.
    Mid-sale
    1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly.
    3.Quality checking will be provided with professional quality
    inspection report before machine delivery.
    After-sale
    1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training.
    2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
    4.Extend service support, such as raw material or accessory suggestions etc.
    Exhibitions & Certifications
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    2018 Bombay, India Fair
    Our company took part in Bombay Exhibition in 2018
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Russia Exhibition
    The communication of Russia exhibition
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    2019 Thailand Exhibition
    A successful interchange at the Exhibition in Thailand
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    2020 International Cable & Wire Fair
    The Shanghai exhibition is gain a lot
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Our Certificate
    Packing & Delivery
    Streatchable PE film wrapped, wooden frame packed, loaded into container for shipping. Special packaging way as per discussed.
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Carton package
    wooden package
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Wrap in plastic film to prevent wetting
    630/1250 Semi-automatic Cable Coiling Machine winding machinery
    Container transportation
