    Full Automatic Cable Coiling And Wrapping Machine Finished Cable Packaging Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-1040
    Certification : CE ISO
    Price : 18000 USD
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 10 units per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Full Automatic Cable Coiling And Wrapping Machine Finished Cable Packaging Machine

    Output sample

    Heat Shrink Hollow Type Cable Packaging Machine Full Automatic Cable Coiling Machine with Robotic Arm

    Product Description
    Application

    This machine is suitable for the automatic processing of the full shrinkage film packaging and binding after the construction wire is rolled .

    Configuration

    No.ItemModelQty.FunctionRemark
    1Shaftless pay-off stand800-1000 mm1Wire feeding
    2Vertical accumulator (Φ300)2 m1Storage wire while switching coil and tension control
    4AC Spark Tester15KV1Surface detecting
    5Automatic Coiling and Tying Mainframe12461Coiling wireTwo-point
    7Belt conveyor (1.7 M)1Deliver the coiler
    8Automatic labeling machine1label
    9Heat shrink film wrapping machine1Sleeve type packing(Hollow type)
    10Heat shrink film furnaceApplying heat for heat shrink film
    11Robotic armA72501Finished coil placement
    12Safety fence1Safety
    13Spare parts1
    Specification
    Technical parameters of key parts
    Heat Shrink Hollow Type Cable Packaging Machine Full Automatic Cable Coiling Machine with Robotic Arm

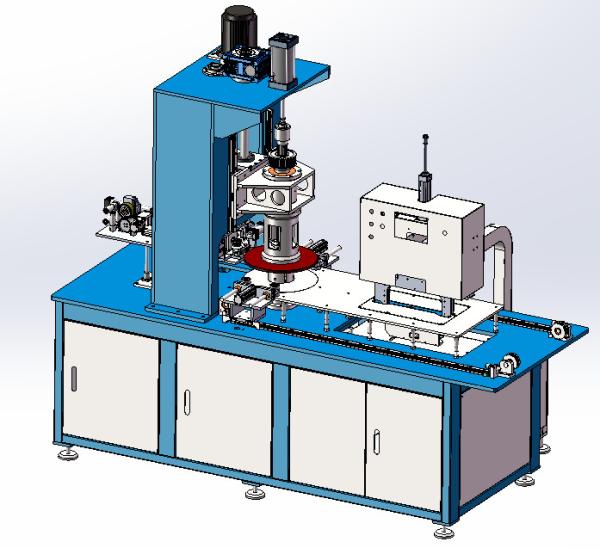

    1246 Coiling mainframe
    1. Applicable cable types: 1.5-6 mm² building wires; The range of cable allowed is Φ1.5-8mm (Flexible)
    2. Design speed of the work head: 780 RPM/MAX.
    3. Wire coil dimension:
    Outside diameter Max. Φ400 mm,
    height 50-100 mm;
    the inside diameter of wire coil : Φ120-Φ200mm
    4.Driving motor:
    Coiling system: 5.5 kw × 4 P AC variable frequency motor + inverter. Traverse system: Mitsubishi 400 W servo motor + servo driver.
    Touch screen : 10 inch Siemens

    Heat Shrink Hollow Type Cable Packaging Machine Full Automatic Cable Coiling Machine with Robotic Arm
    Belt conveyor (PDSS-1700)
    1.Specification: 1700 L*740 W*550 H (height adjustable ±50 mm) 2.Rack: Carbon steel spray paint treatment
    3.Belt specification: 600 W*3 mm PVC belt 4.6.4.Belt color: black 5.Motor: 0.4 kw Taiwan Chengbang gear motor
    6.Power: 3 P AC 380 V 50 HZ
    7.Conveying speed: 10 m/min( fixed speed)
    Heat Shrink Hollow Type Cable Packaging Machine Full Automatic Cable Coiling Machine with Robotic Arm
    Sleeve type heat shrink film wrapping machine
    Automatic sleeve type heat shrink film wrapping machine is a fully automated unmanned packaging machine, automatic providing film and coil conveyor system, all the action finished by the robot independently without human intervention
    1.Packing is sleeve type, hollow in middle, heat shrinkable packer around
    2.Automatic heat shrinkable film machine features:
    a.When the coil size changes, the adjustment is very simple, just replace the film
    b.Automatic feeding material, the length and diameter are adjusted by the combination of electric eye and time automatically , with induction motor, automatic coiling waste.
    c.Thermostat adopts imported digital thermostat, sealing knife adopts US DuPont fluoroplastic coating anti-sticky high temperature aluminum alloy knife, sealing line is strong, not crack, not coking, do not
    smoke, zero pollution.
    d.Equipped with imported detection of photoelectric, horizontal and vertical detection each one group, easy to switch options, can easily complete sealing
    Heat Shrink Hollow Type Cable Packaging Machine Full Automatic Cable Coiling Machine with Robotic Arm
    Robotic arm
    1.The robot is 6-axis industrial robot, adopt high-speed small inertia servo motor and high-precision control technology, compact structure, high joint speed, High dynamic response, high precision, overload capacity, the use of bus structure, easy to expand application. Mainly used to carry out the fixed volume of the coil collection, move, packing, heat shrinkage and finished palletizing processes.
    Main parameters:
    1.Effective load: Max.50 KG
    2.Structure: tandem
    3.Axis number: 6 axis
    4.Repeated positioning accuracy: <±0.15
    5.Max working range (the first axis): ±180°
    6.The second axis: +80°/-135°
    7.The third axis: +225°/-80°
    8.The fourth axis: ±360°
    9.The fifth axis: ±120°
    10.The sixth axis: ±450°
    11.Max angel ( the first axis): ±130°
    12.The second axis: ±130°
    13.The third axis: ±130°
    14.The fourth axis: ±250°
    15.The fifth axis: ±250°
    16.The sixth axis: ±355°
    17.Body weight: 550KG
    18.Way of installation: floor / rack
    19.Around temperature: 0-45 ºC
    Features
    Major assemblies brand
    1.Variable frequency motor: Chinese famous brand
    2.Inverter: Chinese famous brand
    3.Low voltage appliance: German / Japan brand
    4.PLC: Siemens
    5.Touch screen: Siemens
    6.Temperature controller: Japan RKC
