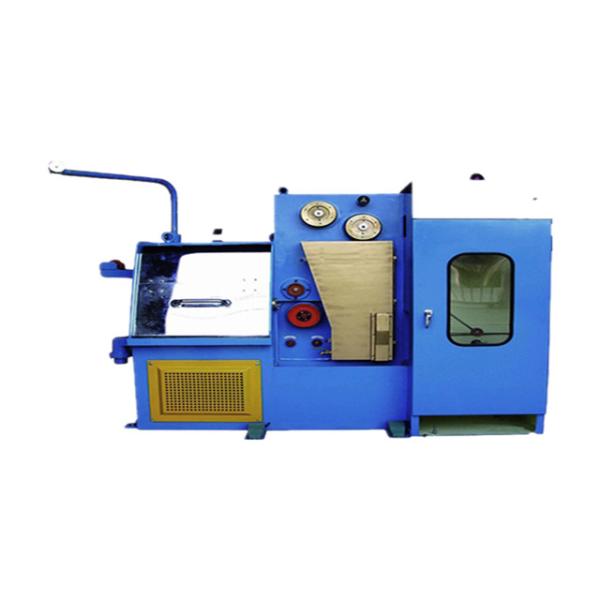

    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-24DHAT
    Certification : CE,ISO,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets/year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing

    Product Description
    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing
    FEATURES:
    ●Automatic tension control by dual-inverter.
    ●Low power consumption, a reduction of 20% - 25% compared with the traditional type of machine.
    ●Widely use imported advanced parts and components to ensure high relabilily.
    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing
    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing
    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing

    The Annealing process:

    The first is Preheating, it can let the wire heating, Reducing the wire loss due to direct annealing,
    the second is annealing, it can make the wire softening ,
    the third is Cooling and drying, Because of the high temperature and speed, wires can’t cooling to normal temperature rapidly, so our machine design this part .
    the Advantage: it can relies online continuous annealing, automatic annealing speed tracking.
    Low annealing cycle, high yield.
    Size 0.08mm-0.32mm Small Copper Wire Drawing Machine Annealing
    Equipment Layout
    Specification
    Inlet diameter
    Φ 0.8~Φ1.2mm
    Outlet diameter
    Φ 0.08~Φ0.32mm
    Drawing speed
    2000 M/Min
    Annealing power
    15KVA
    Suitable diameter of spool
    Φ 300mm
    Annealer method
    DC. three-section annealing
    Main motor power
    15Kw
    Annealing current
    200A
    Take-up motor
    5.5Kw/3.7Kw
    Power source
    380 V
    Capacity for wire receiving
    50KG
    Machine weigh
    3000KG
    Machine dimension
    2568L*1538W*2974H
    Brake
    Magnetic brake
