    Wire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-S-630-1+6+12+18+24
    Certification : CE,ISO,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Delivery Time : 60 days
    • Product Details
    • Company Profile

    Wire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

    1. Application of Rigid Frame Stranding Machine


    This machine is mainly used for stranding copper and aluminum wires with 1+6+12+18+24 structure.


    It is suitable for the production of large-length bare aluminum, bare copper wire, steel core aluminum stranded wire and aluminum alloy wire, sector-shaped conductor stranding and pressing, round conductor stranding, drawing and pressing, and special-shaped conductor stranding. The equipment adopts 36-stage traction variable speed gear box, dual active and dual traction devices. The splitter wheel uses natural splitting to avoid the wire core grazing during the stranding process. It is equipped with a complete disconnection automatic stop device, and the disconnection stop is directly controlled To each pay-off reel, the host will automatically stop immediately when the disconnected reel stops.

    Wire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine



    2. General Parameters of Rigid Frame Stranding Machine


    No.ItemsFeatures
    1Single wire DiameterΦ 1.2 - Φ 5mm
    2Max stranded DiameterΦ 45mm
    3Max cage rotate speed

    6B:150RPM 12B:140RPM

    18B:125RPM 24B:110RPM

    4Capstan wheel diameterФ2000mm
    5Central pay-off bobbinФ630mm
    6Pay-off bobbin in cageФ630mm
    7Take-up bobbinФ1250mm-Ф2500mm
    8Main motor power132KW,AC,380V,50Hz
    9Stranding pitch range65-1125mm
    10Central height of machine1500mm



    3. Components of Rigid Frame Stranding Machine


    No.ItemsQuantityReference Photo
    1Φ 630mm Manual type pay-off1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    2630/6+12+18+24 Bobbins cages1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

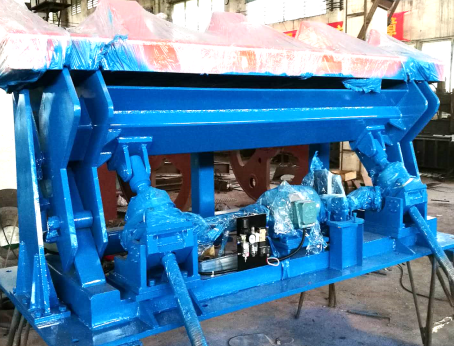

    3Side loading system for each cage1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    4Wire-stranded mould stand1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    5Wire-stranded and Wire-compacted mould stand1 GroupWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    6Meter counter1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

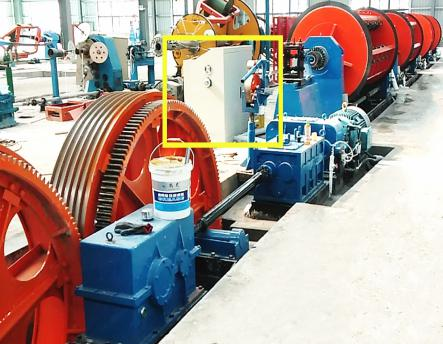

    7Φ 2000mm Double capstan wheels1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

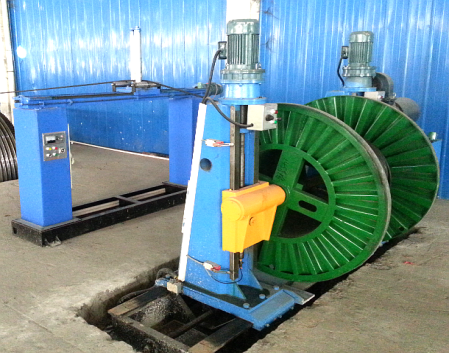

    8Φ 2500mm Column type take-up with traverse1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    9Transmission system1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
    10Electric control system1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine

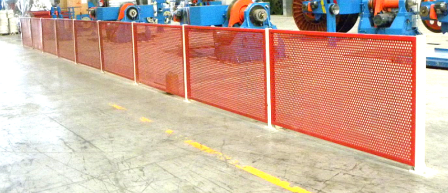

    11Safe fence1 SetWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine



    4. Standard Accessories of Rigid Frame Stranding Machine


    (1) Toolkit 1 Set

    (2) Operating instruction 1 Set

    (3) Drawings 1 Set




    5.Layout of Rigid Frame Stranding Machine

    Wire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine



    6.Wires samples of Rigid Frame Stranding Machine

    Wire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making MachineWire Cable Rigid Frame Stranding Machine , 150RPM Power Cable Making Machine
