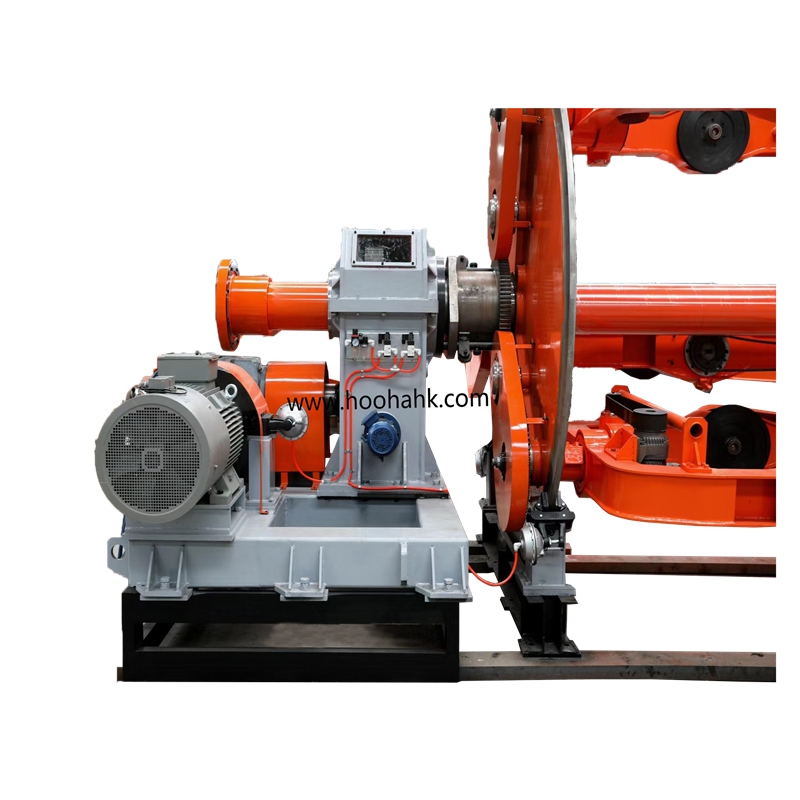

Cable And Wire Lay Up Machine For Power Cables Insulated Cores

    Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers

    Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers
    • Buy cheap Cable And Wire Lay Up Machine For Power Cables Insulated Cores from wholesalers

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores

    Ask Lasest Price
    Brand Name : Hooha
    Model Number : HH-S-1000-1+1+3
    Certification : CE,ISO,SGS
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10000 Sets/year
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores

    Professional Wire And Cable Machinery 1000-1+1+3 Laying Up Machine

    Product Description

    1. Application of Laying Up Machine

    The machine is suitable for stranding and lay-up various sizes and various specifications of 3-7 cores. This is mainly used for power cables,insulated cores, which can be round or sector.

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores


    2. General Parameters of Laying Up Machine

    No. Items Features
    1 Single cross section 10~150 mm
    2 Strand cage rotation speed 17~42 rpm
    3 Max lay-up diameter 60mm
    4 Lay-up pitch 102~1830 mm
    5 Taping head rotation speed 188~419 rpm
    6 Armour speed 188~419 rpm
    7 Outlet wire speed 4.327~32 m/min
    8 Traction wheel diameter φ1600 mm
    9 Main motor power 30kw(AC)
    10 Pay-off frame in cage PN1000
    11 Take-up frame PN2500
    12 Take up motor 6kg.m
    13 Torque motor 6kg. M

    Cable And Wire Lay Up Machine For Power Cables Insulated CoresCable And Wire Lay Up Machine For Power Cables Insulated Cores


    3.Components of Laying Up Machine

    No. Items Quantity
    1 2/1000 Center Pay-Off Frame 1 Set
    2 3/1000 Bobbin strand cage 1 Set
    3 Double row mold base 1 Set
    4 400/3 Taping head 1 Set
    5 630 Armour machine 1 Set
    6 Transmission system 1 Set
    7 Mechanical meter counter 1 Set
    8 1600 Traction system 1 Set
    9 2500 Shaftless take-up frame 1 Set
    10 Traverse device 1 Set
    11 Electric control system 1 Set
    12 Safety protection device 1 Set

    Cable And Wire Lay Up Machine For Power Cables Insulated CoresCable And Wire Lay Up Machine For Power Cables Insulated Cores

    Packing and Delivery

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores

    Company Profile

    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.

    Our vision: To make wire & cable manufacturing and using more humanized.

    Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Hu Machine Designer
    20 years engineering design experience
    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Bi Leading Engineer
    Responsible for project engineering
    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Chen Senior Engineer
    Machine design for 30 years
    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    Professional and Strong Manufacture and Sales Team
    Name
    Education
    Position
    Mainly responsible for project
    Specializing in project
    working year
    zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15 years
    xiaohua Hu
    college
    Vice- general engineer
    The total project design and planning
    net cable,data cable machine
    10years
    Changhong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25 years
    xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15 years
    lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16 years
    zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15 years
    jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7 years
    xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10 years
    changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10 years
    haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8 years
    sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5 years

    FAQ

    Cable And Wire Lay Up Machine For Power Cables Insulated Cores
    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
