    Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 500
    Certification : CE
    Price : 43750-45000 USD
    Payment Terms : L/C, T/T
    Supply Ability : 10 units/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine

    Lan cable CAT6 UTP,S/UTP,STP,S/FTP Triple Twisting Machine


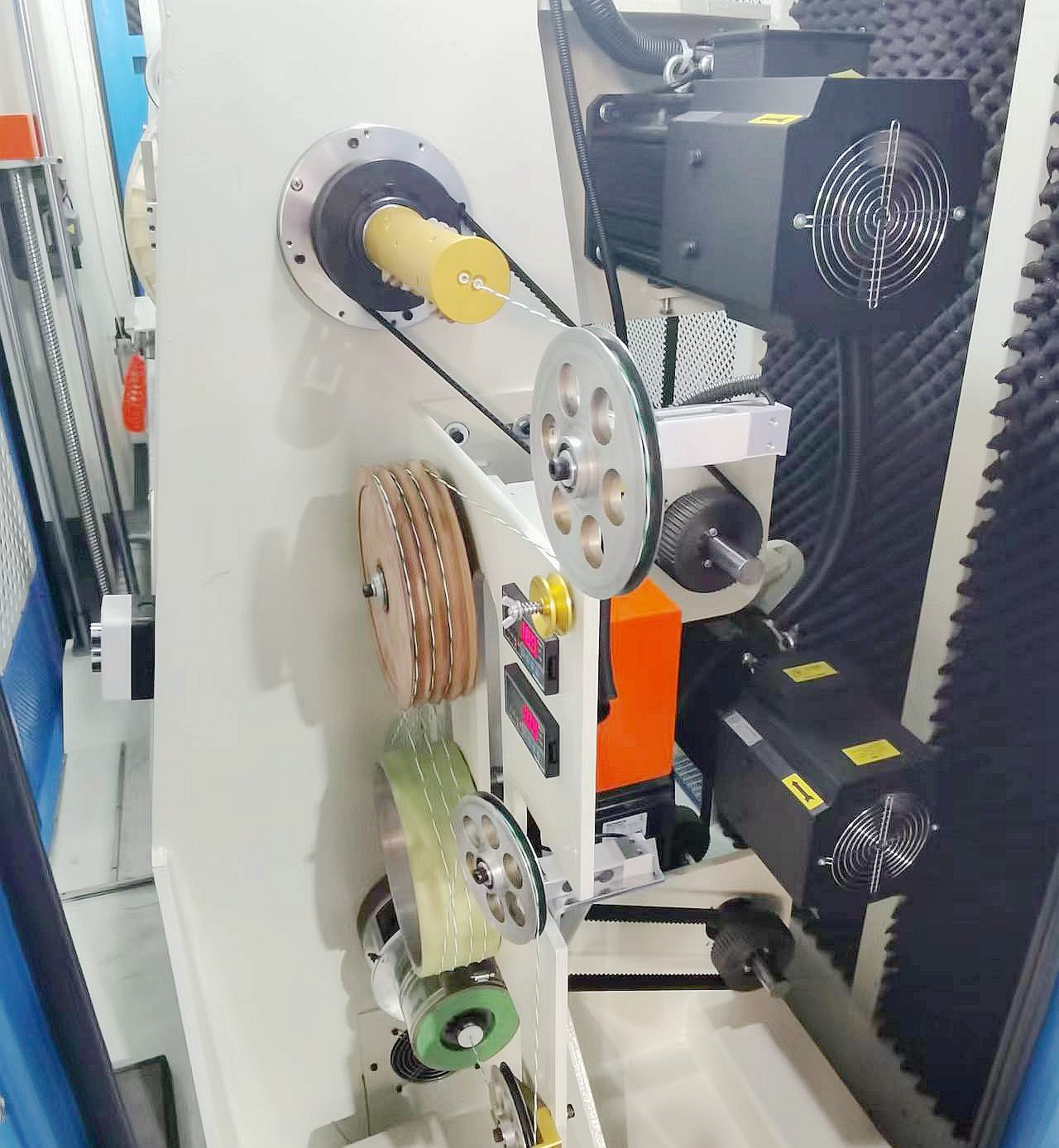

    1.Equipment composition


    NoName
    1Upper layer: Single twist back machine
    2Down layer: Pair twisting machine

    2. Performance


    NoAdvantages
    1Applicable to the twisting of LAN cable, you can set the back-twist rate according to the requirements of the wire in the range of 0-100%, so that the wire can meet the requirements of CAT 5 and CAT 6 cables etc
    2Due to the unqualified raw materials, resulting in The ones that can't reach the test standard are not included in this range and the speed is increased by more than 30% compared with the previous back-twisting machine.
    3The back-twisting machine is set to 33%. The traditional twist-back pair twisting speed is assumed to be 1400 rpm, the pitch is 10MM, and the output per minute is 42 meters.
    4The triple twist is assumed to have a rotation speed of 2000 rpm and a twist pitch of 10 mm. And the output is 60 meters per minute.
    5Compared with the traditional model, the output of the triple twist machine is 30% more than the traditional output.

    3. Single twist back-twist machine


    3.1 External power pay-off

    NoSpecificationParameters
    1Applicable drumΦ500mm*375*Φ56
    2Applicable wireproduction of insulated core wire
    3Applicable wire diameter0.8mm-1.5mm
    4Wire tension when untwisted0.6-3Kg
    5Max linear speed130 m/min
    6Braking devicemotor and dancing wheel
    7Pay-off tension0.6-3KG (tension is adjustable)

    3.2 Internal rotary horizontal power pay-off

    NoSpecificationParameters
    1Applicable drumΦ500mm*375*Φ56
    2Applicable wireproduction of insulated core wire
    3Wire tension when untwisted0.6-3Kg
    4rotating speed of rotating object2000RPM, actual use: 1800RPM
    5Max linear speed130m / min
    6Power pay-off brakemotor and dance wheel

    Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine


    4.Power


    NoSpecificationParameters
    1Motor7.5 HP + PG card tracking line speed, to ensure that the wire is within 2% mm of the set range

    5.Extraction device


    NoSpecificationParameters
    1typeHorizontal
    2Cable tesnsion3 Kg
    3Max linear speed250 m/min
    4Diameter of extraction wheelΦ237.1
    5Type of extraction wheelmulti-groove
    6Power750W Vekoda motor + controller

    6.Pair twist machine


    NoSpecificationParameters
    1Application drumΦ500mm * 375 * Φ56
    2Maximum rotation speed2000RPM (4000 twist),because the quality of the wire requires the test to pass, and the speed of the work is 1400RPM (4200 twist)
    3Maximum linear speed130 m/min
    4Pitch1mm-60mm
    5Maximum row pitch10 mm
    6Main motor power7.5 HP
    7Data displayfeedback to power pay-off or take-up motor correction
    8back torque ratemaximum 100% (arbitrarily set within 0-100)
    9PLCSiemens

    7.Production

    1Standard configuration: white body, black security door
    2Machine direction from left to right
    3Easily damaged items: carbon brush head, this piece is purchased by the buyer, the supplier provides samples and related information
    4

    Tool box , machine electric diagram , installation layout, operation manual


    5L x W x H=3.2 m x 1.6 m x 2 m
    6Weight : 4500 Kg


    CAT6 cable making productivity
    NoNameApplicationUnit KW/HrUnit /
    Line speed(max)
    Capacity/8 hourQTYSuggest
    1PLC 50+35 PE insulation machineHDPE55 kw500 m/min240,0001
    2PLC 50+35 Chemical foaming insulation machineFOAM PE60 kw400 m/min192,0001
    3PLC 500 triple twist machinepair twist10KW60 m/min28,80024
    4PLC 800 Cantilever Twist Machine4 pairs cabling30KW100 m/min48,0001
    5PLC 16 spindle braiding machinebraiding2 KW10 m/min4800210
    6PLC 70 sheath machineSheath60KW200 m/min96,0001
    78 Figure Lan Cable Winding Machine305 m/coil5 KW200m/min96,0001
    A.CAT6,CAT6A U/UTP, 305 m/100 coil at 8 hours , if the PLC triple twist machine at 4 , can be 305m/160 coils a day .
    B.CAT6A S/FTP 305 m/ 20 coils , if braiding to 10 units can be 305m/160 coils a day


    Lan Cable CAT6/CAT6A UTP FTP S/FTP Triple Twisting Machine


    1.Who are we?
    Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.

    2.How can we guarantee quality?
    1.Online inspect facotry,production,shipment,and aftersales services.
    2.pre-production sample before mass production.
    3.Highstandards and strict requirements, key accessories of cable equipment only use imported parts.
    4.Mechnical parts gurantee 12months, elcctrical parts 12 months.
    5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.
    3.What can you buy from us?
    1.material for wire and cable
    2.turkey project for wire and cable
    3.extrusion line/bunching/twisting
    machine for wire and cable
    4.accessorries for cable equipments

    4.How long is your delivery time?
    1.Generally, 3-7 days for goods in stock
    2.30 days for goods after realsing order.
    3.project will take 60-90 days

    5. Will the price be cheaper if the order is placed in bulk?
    Yes,Of course,it will make 10%-12% discount

    6.What services can we provide?
    1.Plant solution and machine design.
    2.technical support at machines and cable.
    3.Installtion and commmsioning,after sales service.
    4.Packaging customization 5.Customized,saving 10%-20% year-on-year cost

    7.HOOHA cable equipment technical advantages
    1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
    2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable.
    3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared with
    the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
