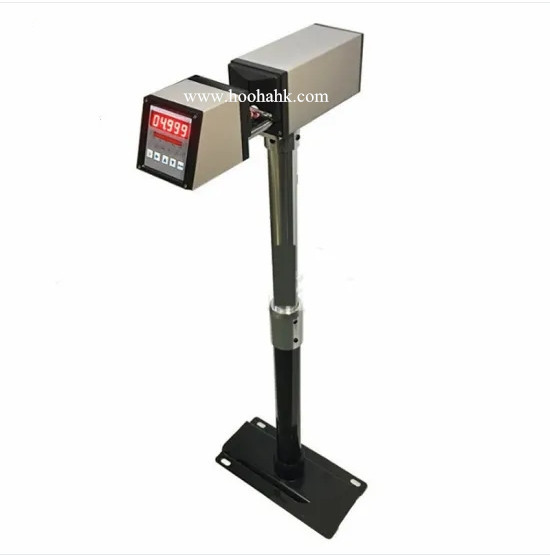

Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine

    Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers

    Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers
    • Buy cheap Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine from wholesalers

    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50/70/80/90
    Certification : CE
    Price : USD 450
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000
    Delivery Time : 20 days
    • Product Details
    • Company Profile

    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine

    Hooha Digital Measuring Instrument Diameter Gauge

    Description:

    Applications
    Transparent, translucent objects such as glass tubes and glass rods
    local area network (LAN) cable
    Coaxial cable
    Optical fiber, flat cable
    Frequency cable, communication cable
    Power cable, pipe, wire
    Product description
    Non-contact optical measurement
    Multi-angle display of operation panel
    Laser or LED long life light source
    Adopt advanced DSP processing technology
    Excellent dust resistance and anti-pollution design
    Protection class IP65, NEMA4
    S232/485 communication interface
    Fully automatic closed-loop control technology, automatic feedback control wire diameter
    Measurement is not affected by speed and vibration, and the line diameter is automatically delayed.
    Scanning speed 600 times / sec (up to 1400 times / sec)
    Main technical parameters
    HH-3025 HH-3040 HH-70/90/100/140
    Effective measuring range 0.2-25mm 0.5-40mm 1-70/120/140mm
    Measuring Precision ±0.002mm ±0.003mm ±0.004mm
    Resolution 0.001mm 0.001mm 0.001mm
    L*W*H 290*66*170mm 400*68*175mm 504*86*230mm
    Weight 5KG 8KG 10KG

    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine

    Wire and Cable Testing Equipment Laser Diameter Gauge HH-50
    Applications:
    1.Various transparent and translucent objects such as glass tubes and glass rods
    2.Local area network (LAN) cable
    3.Coaxial cable
    4.Optical fiber, flat cable
    5.Frequency camera cable, communication cable
    6.Power cables, pipes, wires

    Remote display product description:

    Installation opening size: 91.5*43; Features: not only has a remote display function, but also has a number; Interface:
    RS485/232;Feedback voltage output: 0-10V; PID control output: ±0.1-2.1V; Out of tolerance alarm output voltage (12V), the maximum distance up to 300 meters.
    Product machine line:
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Specifications:
    Type
    HH-3025
    HH-3040
    HH-70/90/100/140
    Effective measuring range
    0.2-25mm
    0.5-40mm
    1-70/120/140mm
    Measuring Precision
    ±0.002mm
    ±0.003mm
    ±0.004mm
    Resolution
    0.001mm
    0.001mm
    0.001mm
    L*W*H
    290*66*170mm
    400*68*175mm
    504*86*230mm
    Weight
    5KG
    8KG
    10KG
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    After Service:
    1).Delivery dates: 60 days
    2).Payment: TT or L/C
    3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online

    Contact Information:

    Project assistant:Zoey
    Te:+8690243509
    Wechat: hoohaengineer
    Email: zoey_wu@electricalequipment.com.cn
    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China
    If the machine is not suitable for your wire spec., please contact me.

    Why Choose Us?
    1. We are the cable equipment manufacturer
    2. Professional engineer,long term to research and development for to cable equipment .
    3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
    4. Our machine use the international qualified brand,like Siemens ,Omron,NSK,LG etc.
    5. Install and training service. Guarantee overseas install and cable manufacture training experience.
    6. Technical support and spare parts service.
    7. Every product with be with tailor-made sketch and drawing.
    8. Products can be engineered according to different configuration and plastic materials.

    Professional and Strong Manufacture and Sales Team:
    HOOHA R&D TEAMNamePositionworking experienceMain research successful projectzanyang XieGeneral engineer10 yearsDrawing and designerpower cable machinexiaohua HuVice general engineer8 yearsDesignercate5 cable machinejingxin Liucable technology engineer15 years cable making designerteflon cable machineweihua Lielectrical engineer7 yearselectrical researchover seas machine install kangyou Wuproduce manager6 yearsproduct producecar cable machineJacksells manager5 yearsexport service 3 times overseas after service
    HOOHA R&D TEAM
    Name
    Position
    working experience
    Main research
    successful project
    zanyang Xie
    General engineer
    10 years
    Drawing and designer
    power cable machine
    xiaohua Hu
    Vice general engineer
    8 years
    Designer
    cate5 cable machine
    jingxin Liu
    cable technology engineer
    15 years
    cable making designer
    teflon cable machine
    weihua Li
    electrical engineer
    7 years
    electrical research
    over seas machine install
    kangyou Wu
    produce manager
    6 years
    product produce
    car cable machine
    Jack
    sells manager
    5 years
    export service
    3 times overseas after service
    Exhibitions & Certifications
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    2018 Thailand Exhibition
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    2019 Moscow Exhibition
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    2016 ShangHai Exhibition
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    The Technical Team
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Oversea service
    HOOHA Always provide the technical support for clients
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Chief project engineer
    Mr. Bi has 30 years experience in this industry
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Professional sales team
    They has 10 years experience, they are not only a sales, but also know technical
    Customer Cases
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Hooha in customer's factory
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Korea client visit China
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Visited American clients
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Algeria Project
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Tanzania Project
    Packing & Delivery
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine
    1. Film packing
    2. Wooden package
    3. Enclosed wooden package

    Quality Hooha Digital Measuring Instrument Diameter Gauge Laser Cable Diameter Guage Machine for sale
