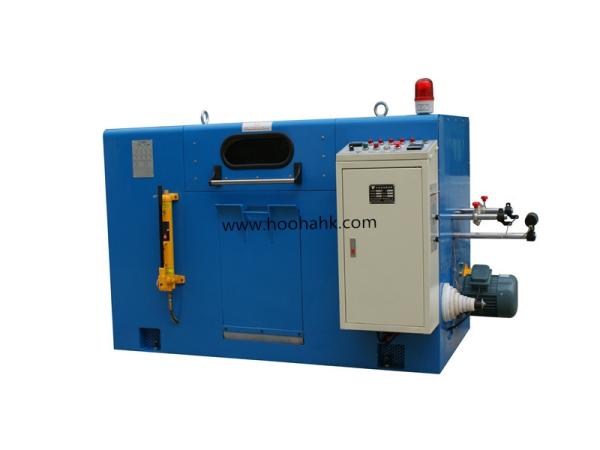

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-300/500/650/800/1000
    Certification : CE ISO
    Price : 69500 USD
    Payment Terms : L/C, , T/T, Western Union, MoneyGram
    Supply Ability : 10 units per month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    MORE INFORMATION ON Youtube

    Official channel : https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
    Senior engineer : https://www.youtube.com/channel/UCEkpAscJk7ozHInrU-fgshA
    Suitable Manufacturing Cable
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Products Description
    Main parameters
    Model
    Right-hand model. The operator faces its front and the wires enter it from its right side
    Rotation speed of arched band
    Max: 1800RPM. The bow strap is a guide wheel bow strap
    Twisting pitch
    15-60.24mm (can be adjusted appropriately according to customer needs), manual gear change twisting pitch
    Stranded wire length calculation
    How many meters per minute = twisting distance *2/1000* twisting bow speed per minute
    Twisting direction
    Arbitrary selection of left and right twisting direction
    Single wire diameter
    Ø0.16mm-Ø1.0mm
    Stranding area
    0.4 mm2-5.5 mm2
    Traverse
    German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted
    Spindle lubrication
    Use manual grease gun to inject oil
    Drive motor
    AC 380V 1400RPM 10HP Siemens +10HP Japan Yaskawa inverter. Stepless speed regulation
    Floor area
    L3100*W1500*H1600MM
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Application
    It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires,
    bare copper wires, network wires etc.
    HOOHA cable twsiting machine
    Model number
    HH-300
    HH-400
    HH-500
    HH-650
    Purpose
    for twisting more than 7 strands copper wire
    Rotation
    Max:4000rpm
    Max:3600rpm
    Max:3200rpm
    Max:1800rpm
    Inlet wire dia.
    φ0.06-φ0.28mm
    φ0.08-φ0.45mm
    φ0.08-φ0.45mm
    φ0.16-φ0.45mm
    Cross section
    0.03-0.4mm
    0.08-0.9mm
    0.14-0.21mm
    0.8-5.5mm
    Twisting pitch
    3-17mm
    4.08-31.5mm
    5.7-52.8mm
    11.4-100.02mm
    Taking up axis
    φ300mm
    φ400mm
    φ500mm
    φ650mm
    Motor
    3.7KW
    3.7KW
    5.5KW
    5.5KW
    Details Images
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Processing part
    Flexible core conductor for
    1. Electrical cable
    2. Lan cable
    3. USB cable
    4. Telecom cable

    Main parts
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    Main twisting unit

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    7 head pay-off

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Main brand of parts
    Bearing
    NSK , Japan
    Flat belt origin
    Swiss
    Triangle belt
    Japan
    Reduction motor
    Taiwan
    DC motor
    Hengli Motor Factory of Hangzhou

    Layout Chart

    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Installation Instructions
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The after service

    1.Engineer guide installation video
    2.The machine will doing the test before delivery and will send online test video
    3.The drawing for install, electrical,die,screw will send to client
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The technical support

    1.The machine arrangement in the factory
    2.The cable making production technical card
    3.The engineer guide the cable making solution
    4.The power, air,water arrangement guide
    Company Profile
    Dongguan Huha Electrical machinery Co., LTD
    With a registered capital of 1 million CNY, the company is based in Humen Town, Pearl River Delta, Dongguan city, Southeast China. Being an innovative Foreign trade enterprises for foreign high-quality enterprises and Chinese high-quality enterprises , we have been mainly engaged in wire and cable equipment spare, wire and cable and die casting parts export business. We are doing a good job as bridge docking of quality engineering projects. It has 3 business segments: wire and cable, wire and cable equipment and Cast aluminum hardware. Our major business is now in India, Dubai, Nigeria, Indonesia, The United States , among which there are agents and after-sales service , attending considerable number of expo every year .
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    00:00
    02:00
    Product packaging
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The plastic+wood packing

    1.The usually packing way is plastic packing
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The wood packing

    1.The wood package will according to the customer's inquiry then design to wood packing
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The fixed by steel or tap

    1.The machine will fixed by the steel rope and Tap in the container
    Why Choose Us
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The quality and service system

    1.10 years export experience will support our client
    2.The payment way more choice
    3.The delivery control by engineer team more on time
    4.The quality system control by engineer more reach our clients target
    5.The after service more humanization from HOOHA team
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    The supplier chain experience

    1. Save your time on the project
    2.More humanization solution for the project running
    3.16 years professional on the cable making solution supplier chain more competition price
    4.20 years working experience engineer team guide your cable making solution more safety and quick.
    Exhibition
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting
    Shanghai fair 2014
    1.The power cable making solution
    2.The Fep cable making solution
    3.The data cable making solution
    4.The network and lan cable making solution
    5.The auto cable making solution
    Certifications
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    MIC field certification

    1.HOOHA SGS field certification 2019 2.HOOHA quality and service is close to HK service standard
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    HOOHA HK certification

    1.HOOHA HK support hooha business booming and working more efficient with our clients
    Cable making machine high speed wire bunching machine for Cat 6/6e/7 lan cable twisting

    HOOHA each year Company commercial certification

    1HOOHA Company commercial certification
    FAQ
    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese
