    Hooha Cable Spark Tester for Extruder Production Line

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50/70/80/90
    Certification : CE
    Price : 350
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000
    Delivery Time : 20-30
    • Product Details
    • Company Profile

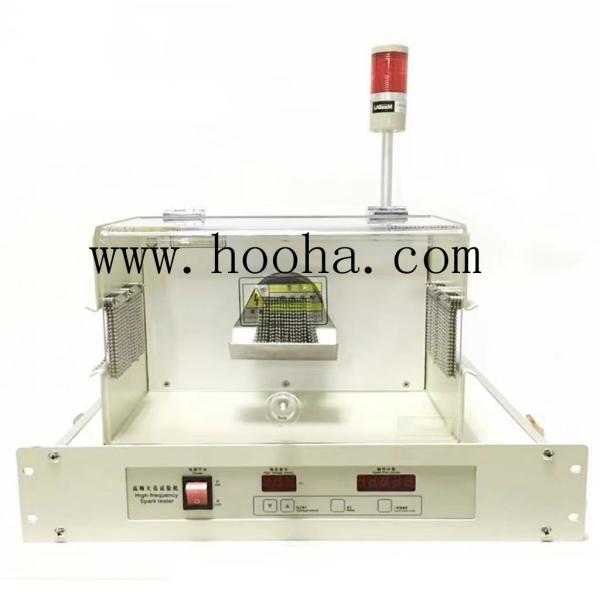

    Hooha Cable Spark Tester for Extruder Production Line

    Hooha Cable Spark Tester for Extruder Production Line


    HH-15AC high frequency spark machine is a fast and reliable quality inspection tool, which is used to detect pinholes, skin breakage, bare copper and other fine insulation points in all kinds of conductor insulation layers such as wires and cables on-line. It can quickly detect that the conductive body is defective without destroying the electrical conductor inside the outer quilt.
    Using high frequency (3KHz) high voltage electrode head instead of traditional (50, 60Hz) power supply frequency high voltage electrode head, the size of 50/120mm string bead can be selected, and the installation size can be greatly reduced. The detection speed (1200-2400m/min) is greatly improved. This high frequency spark testing machine is a quality control tool with high trust.

    Note A variety of practical patents are integrated, easier to operate, more durable, metal edge perspective, beautiful and durable. Especially suitable for line diameter ≤ 5mm line speed ≥ 200m/min and strict quality testing requirements.

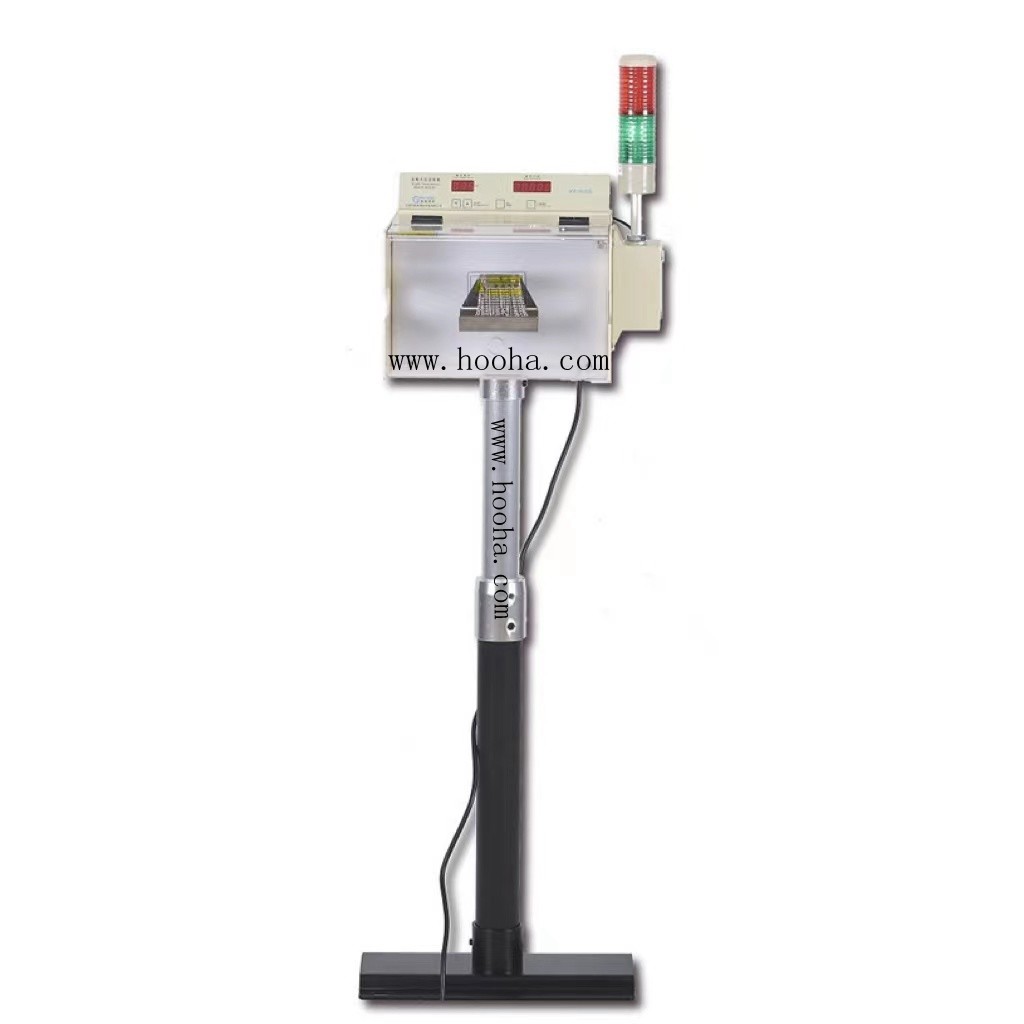

    Hooha Cable Spark Tester for Extruder Production Line

    Main technical parameters

    Power supply voltage: AC220V/250V+15% power supply frequency 50+2Hz

    Input power: 120VA

    Ambient temperature-10 ≤ 45C

    Relative humidity less than 85% (no condensate)

    Detection voltage AC 0-10-15KV order please indicate breakdown sensitivity

    1: 600 ≤ 50uA, t ≤ 0.005s

    Maximum moving speed of the subject line 1000/mm
    Output frequency 25-3
    Maximum outer diameter of cable under inspection 2

    Dimension:315*305*245mm(not included package)

    Hooha Cable Spark Tester for Extruder Production Line


    Packing Way

    1.Wooden support package

    2.Film packing

    3.Wooden packing
