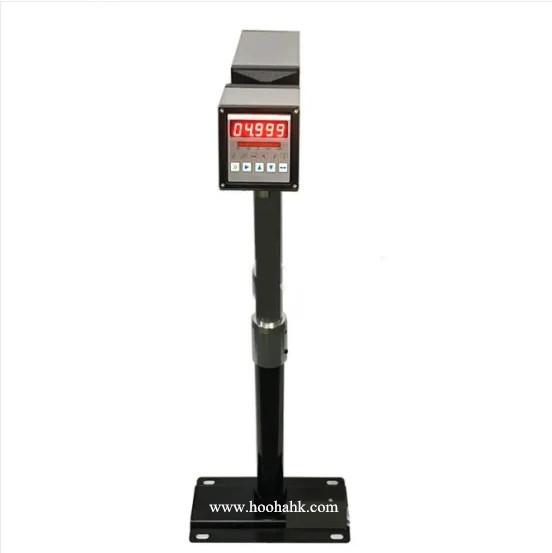

    Aluminum Alloy Precision Measuring Instrument Diameter Gauge

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50/70/80/90
    Certification : CE
    Price : 450
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 1000
    Delivery Time : 20-30
    • Product Details
    • Company Profile

    Aluminum Alloy Precision Measuring Instrument Diameter Gauge

    Hooha Digital Measuring Instrument Diameter Gauge


    Description:

    Applications
    Transparent, translucent objects such as glass tubes and glass rods
    local area network (LAN) cable
    Coaxial cable
    Optical fiber, flat cable
    Frequency cable, communication cable
    Power cable, pipe, wire
    Product description
    Non-contact optical measurement
    Multi-angle display of operation panel
    Laser or LED long life light source
    Adopt advanced DSP processing technology
    Excellent dust resistance and anti-pollution design
    Protection class IP65, NEMA4
    S232/485 communication interface
    Fully automatic closed-loop control technology, automatic feedback control wire diameter
    Measurement is not affected by speed and vibration, and the line diameter is automatically delayed.
    Scanning speed 600 times / sec (up to 1400 times / sec)
    Main technical parameters
    HH-3025HH-3040HH-70/90/100/140
    Effective measuring range0.2-25mm0.5-40mm1-70/120/140mm
    Measuring Precision±0.002mm±0.003mm±0.004mm
    Resolution0.001mm0.001mm0.001mm
    L*W*H290*66*170mm400*68*175mm504*86*230mm
    Weight5KG8KG10KG
