    Automatic Multi Wire Drawing Machine with Annealing

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : Hh-Dl18/24
    Certification : CE ISO
    Price : US$40,000-400,250/1set
    Payment Terms : L/C, T/T
    Supply Ability : 10set/1 month
    Delivery Time : 40 Working Days
    • Product Details
    • Company Profile

    Automatic Multi Wire Drawing Machine with Annealing

    Automatic Multi Wire Drawing Machine with Annealing


    Product description
    item
    value
    Place of Origin
    China
    Brand Name
    HOOHA
    Model Number
    HH-DL18/24
    Usage
    Drawing
    Overall Dimension
    22*6*5-24*10*5
    Automatic Grade
    Automatic
    Max. Speed
    30m/S
    Installed Capacity
    300-600kVA
    Inlet Dia
    9.5mm or 2*9.5mm
    Outlet Dia
    Outlet Dia
    HS Code
    8479400000
    Warranty
    12 months
    Transport Package
    Wood Package

    Automatic Multi Wire Drawing Machine with Annealing


    Good Quality with Competitive Price Multi Wire Drawing Machine with Annealling

    Features:
    1.Produce copper wires sized φ1.2-4.5mm from aluminum rods of φ8mm with online annealer;
    2.According to customer needs to provide 9, 11, 13 die wire drawing machine;
    3.Single motor drive or individual motor drive RBD machine with one wire or 2 wires.
    4.Optional: single spooler, double automatic spooler, vertical pay-off or combination of various take-up forms;
    5.Using MMI+PLC control system, production line synchronization control, online monitoring, process parameters can be modified, storage, reading in the touch screen with easy operation;
    6.Threading machine, heat exchanger, steam generator and filter are available for customer choic.
    Advantages :
    * Extremely flexible solutions with a wide range of possible configurations depending on the customer's requirements
    * Multimotor technology with intermediate slip recovery for energy saving and better wire quality
    * User-friendly design and full access to the work area for easy string-up
    * High-speed drawing (up to 40 m/sec)
    * Helical gears
    * No soundproof cabinet needed
    * Easy installation
    * Optimised energy consumption and production processes
    * Wide range of annealers with annealing current from 500 to 7000 A
    * Wide range of dynamic (manual and automatic) and static spooling systems
    * Profibus interconnection: less cabling required
    Automatic Multi Wire Drawing Machine with Annealing
    Spare Parts Brands:

    Motor: Dongguan Motor , Teco, ABB, Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin
    Line Speed Meter: Taiwan FOTEK/Yangming
    Bearing : NSK, SKF
    Specification

    Product Specification
    Machine type
    HH18/120.4
    HH18/120.8
    HH24/100.16
    Drawing wire No.
    4 wires
    8 wires
    16 wires
    Max .die No.
    25
    27
    27
    Max .inlet dia.(mm)
    1.6-2.0
    2.6
    2.6
    outlet dia.(mm)
    0.15-0.6
    0.15-0.4
    0.16-0.4
    Drawing capstan dia.(mm)
    150
    100/120
    100/120
    Max .drawing speed(m/s)
    30
    30
    30
    Equipment Layout:
    Automatic Multi Wire Drawing Machine with Annealing
    The machine is mainly used for copper cable, aluminum cable and alloy wire.

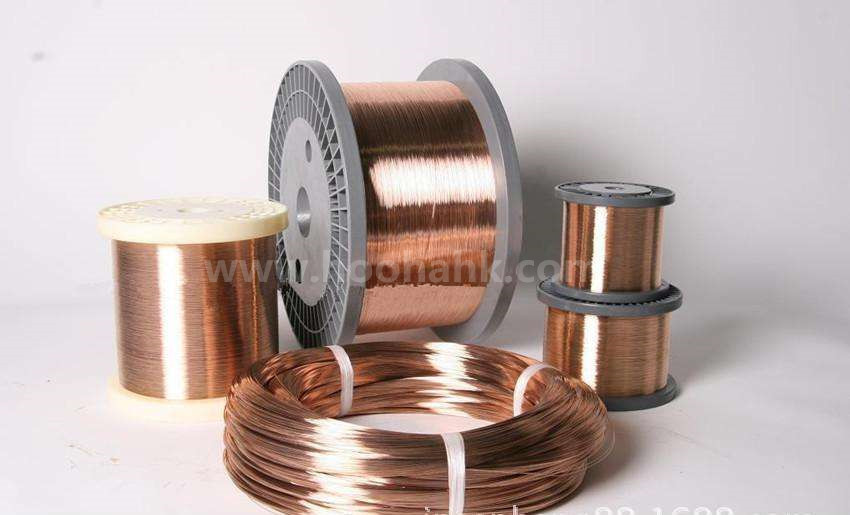

    The Wire Samples
    Automatic Multi Wire Drawing Machine with AnnealingAutomatic Multi Wire Drawing Machine with AnnealingAutomatic Multi Wire Drawing Machine with Annealing
    The machine is mainly used for copper cable, aluminum cable and alloy wire.
    Packing & Delivery
    The raw material packing

    1.The CCA copper will packing anti the oxidation way2.The PVC/PE/FEP packing will use the paper box and wood packing
    3.The tape also use the paper box add wood package
    The machine packing

    1.usually use the PE foam package2.The base need wood package
    3.The tape will fixed the machine on the container
    The machine package arrange

    1.The machine will arrange the drawing of each machine on the container before loading2.save the space for our client
    3.ensure the machine delivery 100% safty
