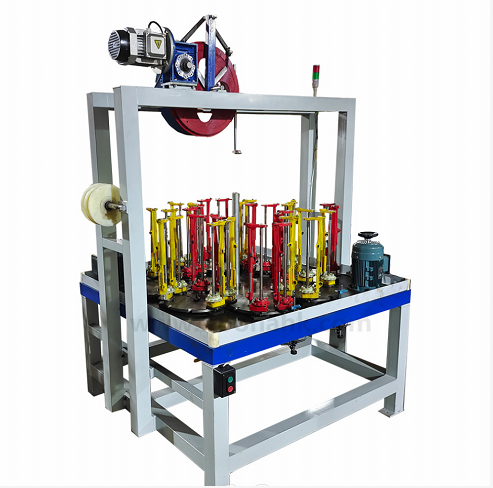

Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers

    Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers
    • Buy cheap Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided from wholesalers

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-48-110
    Certification : Sira CE Sgs
    Price : USD 19789
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 sets/per month
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Product Picture

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Application:

    Applicable to computers,mobile phones,televisions,tape recorders,audio systems,electronics,such as shielding circuit. The production of reinforced Products:e.g. high temperature wire, audio cable, shield wire and coaxial cable, braided water hose, braided rubber hose, etc.

    Components

    No. Name Picture
    1

    Bunching Machine Pay Off Stand

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    2 high speed stranding machine Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    3 Wire Pay-off Stand Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    4

    Tipping Machine

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    5

    Cable Braiding Machine

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    6 Cutting machine Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    7 Winding machine

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Wire Conduction Band Braiding Machine

    Model Carriers Heads Horngear size in mm Bobbin Size
    HH-16-4-90 16 4 90 48*140mm
    HH-24-4-90 24 4 90 48*140mm
    HH-32-2-90 32 2 90 48*140mm
    HH-48-1-160 48 1 160 86*206mm

    Specification for Cable Braiding Machine

    Model HOOHA
    Carriers/Spindles 48
    Heads 4
    Series/Horngear size in mm 90
    Bobbin Size in mm OD48*139mm
    Power in KW 0.75kw
    Horngear Speed in RPM 330RPM
    Material aviable Any textile yarn, such PP PE COTTON, NYLON, ETC.
    Products High temperature wire, audio cable, shield wire and coaxial cable, braided water hose, braided rubber hose
    Take-up device Optional

    Model

    No. Carries Heads

    Horngear size

    (mm)

    Motor Power

    (kw)

    Max RPM.Horngear

    Bobbin size

    (mm)

    HH-12-2-110 12 2 110 750 230 58*178
    HH-9-4-80 9 4 80 0.55 350 42*143
    HH-9-8-80 9 8 90 0.55 350 47*139
    HH-13-4-80(90) 13 4 80(90) 0.55 350-330 42*143/47*139
    HH-17-4-80(90) 17 4 80(90) 0.55 350-330 42*143/47*139
    HH-21-4-80(90) 21 4 80(90) 0.55 350-330 42*143/47*139
    HH--25-2-80(90) 25 2 80(90) 0.55 350-330 42*143/47*139
    HH-29-2-80(90) 29 2 80(90) 0.75 350-330 42*143/47*139
    HH-33-2-80(90) 33 2 80(90) 0.75 350-330 42*143/47*139
    HH-37-2-80 37 2 80 1.1 350 42*143
    HH-41-1-80 41 1 80 0.55 350 42*143
    HH-45-1-80 45 1 80 0.75 350 42*143
    HH-49-1-90 49 1 90 0.75 350 47*139

    Features

    1.It is functional,including meter counter,auto stop motion,recording,motor overload protection during production,and can be braiding with a variety of materials by replacing the spindles.
    2.Multiple configurations are available and can be custoized to meet a wide range of braiding needs.
    3.It is east to make different size of products by changing the pitch gears.
    4.Well designed auto stop system has a sensitive reaction, when the yarn is over or breaks, the machine will stop automatically, which reduce the waste of the yarn.
    5.We have 800kinds braiding machine for chosen.
    6.All spare parts are made by ourselves, and every parts have to pass strict inspection before they are installed on the machine.
    7.We R&D braiding machine for more than 30 years, and have gain dozens of patents .

    Factory Picture

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Company Profile

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution.
    Our vision: To make wire & cable manufacturing and using more humanized.
    Our target: More professional customer service, struggle for employees' dreams.
    We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.

    Technical team

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Chen Senior Engineer
    Machine design for 30 years

    Hu Machine Designer
    20 years engineering design experience

    Bi Head Engineer
    Responsible for project engineering
    Name Education Position Mainly responsible for project Specializing in project Working history ( year )
    Zanyang Xie college General Engineer The total project design and planning power cable machine 15
    Xiaohua Hu college Vis general engineer The total project design and planning net cable,data cable machine 10
    Changhong Cheng college Engineer Drawings and after-sales service Teflon,Optical fiber cable machine 25
    Xiuwu Chen college General Engineer The total project design and planning copper drawing machine 15
    Lixin Yuan college Engineer The project design and planning coppwer wire making technical 16
    Zhenghai Qiu college cable engineer After service cable making and cable factory management servie 15
    Jinxin Liu college Marketing engineer After service electrical engineer 7
    Xingguo Tang High school Electrical engineer After service electrical engineer 10
    Changqiang Li High school Maintain engineer After service machinal maintain and install service 10
    Haipin Li University Engineering director Marketing and sales project consulting 8
    Sen Yang University Engineering translator Marketing and sales project consulting 5

    Customer Cases

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Dubai
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Algeria
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Syria

    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided

    Egypt
    Pre-sale
    1.Professional engineer team provide customized design and machine arrangement drawing service 2.Professional engineer team can
    visit customers's company in person and provide face-to-face service 3.Professional trading system provide high-efficient communication 4.Professional sales team including pre-sale staffs,after-sale staffs,order supervisor,shipping managers, finance
    managers,cable. making engineers would give you more detailed consultant service.
    Mid-sale
    1.Professional follow-up system ensures high-quality service including live production video shooting,etc. 2.Quality control system with professional engineers ensures project goes smoothly.
    3.Quality checking will be provided with professional quality
    inspection report before machine delivery.
    After-sale
    1.Overseas on-site installation guidance and technical support including previous testing, operation instruction and talent training.
    2.Free online consultance service. 3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
    4.Extend service support, such as raw material or accessory suggestions etc.
    Exhibitions and Certificates
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    2018 Bombay, India Fair
    Our company took part in Bombay Exhibition in 2018
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Russia Exhibition
    The communication of Russia exhibition
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    2019 Thailand Exhibition
    A successful interchange at the Exhibition in Thailand
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    2020 International Cable & Wire Fair
    The Shanghai exhibition is gain a lot
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Our Certificate
    Packing and Transportation
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Carton package
    wooden package
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Wrap in plastic film to prevent wetting
    Manufacturer Yarn Wire Braided Multi-Model High Speed Copper Braiding Machine for Wire and Cable Braided
    Container transportation
    1. film packing
    2. wooden package
    3.enclosed wooden package
    FAQ
    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),
    Mid East(17.00%),
    Southeast Asia(16.00%),
    Eastern Asia(13.00%),
    South Asia(10.00%),
    South America(8.00%),
    Eastern Europe(4.00%),
    North America(3.00%),
    Northern Europe(3.00%),
    Southern Europe(3.00%),
    Oceania(2.00%),
    Western Europe(2.00%),
    Central America(2.00%),
    There are 5-10 professional workers in HOOHA.


    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese
    6: Do you have a video to show the machine running ?
    A. Yes , we have,our youtube channel :https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
