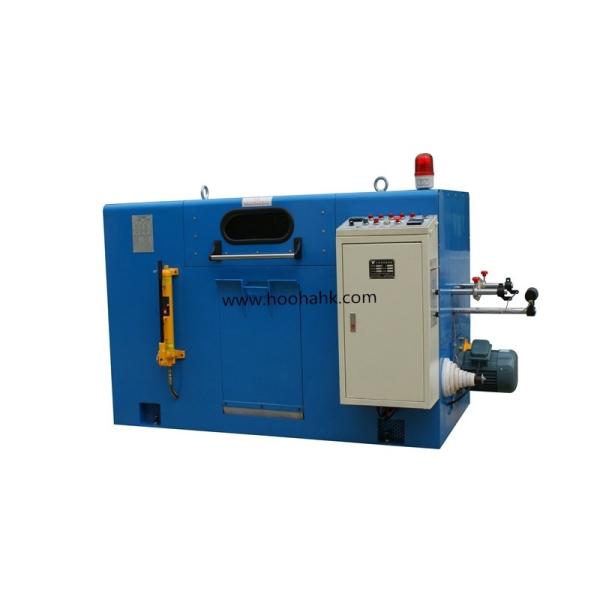

    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-300/500/650/800/1000
    Certification : CE/ISO
    Price : USD 62500/1
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units per month
    Delivery Time : 30 days
    • Product Details
    • Company Profile

    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    MORE INFORMATION

    Youtube: https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
    https://www.youtube.com/channel/UCKBDFWwJ8fuEs6P6T6CNF6g
    Products Description
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine
    Application:
    It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.

    Spare Parts Brands:
    Motor: Dongguan Motor , Teco, ABB, Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin
    Line Speed Meter: Taiwan FOTEK/Yangming
    Bearing : NSK, SKF
    Different models of HOOHA cable twsiting machine
    Model number
    HH-300
    HH-400
    HH-500
    HH-630
    Purpose
    for twisting more than 7 strands copper wire
    Rotation
    Max:4000rpm
    Max:3600rpm
    Max:3200rpm
    Max:1800rpm
    Inlet wire dia.
    φ0.06-φ0.28mm
    φ0.08-φ0.45mm
    φ0.08-φ0.45mm
    φ0.16-φ0.45mm
    Cross section
    0.03-0.4mm
    0.08-0.9mm
    0.14-0.21mm
    0.8-5.5mm
    Twisting pitch
    3-17mm
    4.08-31.5mm
    5.7-52.8mm
    11.4-100.02mm
    Taking up axis
    φ300mm
    φ400mm
    φ500mm
    φ650mm
    Motor
    3.7KW
    3.7KW
    5.5KW
    5.5KW
    Details Images
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    Multi-head(max 66) pay-off stand (inlet structure)

    1.After all the lines are released from the pay-off rack, they enter the splitter board through a set of guide wheels and enter the eye mold for twisting. 2.Distribution board gauge: Our standard distribution board has 19 holes (also can be customized according to customer requirements). 3.Inlet eye mold specification: (Outer circle) Ø25* (Height) 15, inner hole design according to customer requirements.
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    Wire rewinding structure

    1.Bobbin: Standard bobbin: (outer diameter) Ø800* (outer width) 600* (inner hole) Ø80; pine hole: Ø40; distance to the bobbin hole: 160mm (max.) or 120mm (min.) (customizable) 2.Tension: There is a manual mechanical tension regulation system that is mainly used for regulating the pressures of springs. 3.Loading and unloading of the bobbin: The bobbin has a hydraulic lifting iron shaft, convenient and flexible.
    Main specification
    Model
    Right-hand model. The operator faces its front and the wires enter it from its right side
    Rotation speed of arched band
    Max: 1200RPM. The bow strap is a guide wheel bow strap
    Twisting pitch
    22.51-152.32mm (can be adjusted appropriately according to customer needs), manual gear change twisting pitch
    Stranded wire length calculation
    How many meters per minute = twisting distance *2/1000* twisting bow speed per minute
    Twisting direction
    Arbitrary selection of left and right twisting direction
    Single wire diameter
    Ø0.4mm-Ø1.35mm
    Stranding area
    1 mm2-10 mm2
    Traverse
    German-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted
    Spindle lubrication
    Use manual grease gun to inject oil
    Drive motor
    AC 380V 1400RPM 15HP Siemens +15HP Japan Yaskawa inverter. Stepless speed regulation
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine

    Layout chart
    USB 2.0/3.0/3.1 cable manufacturing machine High speed conductor twisting machine
