    2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-Teflon Cable
    Certification : CE/ISO
    Price : Negotiable
    Payment Terms : L/C, T/T
    Supply Ability : 1 set / 60 days
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

    Complete Set Teflon Cable Making Machine with Installation and Commissioning Service



    Usage:

    Polytetrafluoroethylene can be formed by pushing or extruding; it can also be made into a film and then cut into a shaft-mounted PTFE tape when used in high-temperature wires. It is used to produce high-frequency cables and directly made into water dispersion. It can be used for coating, impregnation or fiber making.


    Polytetrafluoroethylene is widely used in industries such as nuclear energy, national defense, aerospace, electronics, electrical, chemical, machinery,instruments, meters, construction, textiles, metal surface treatment, pharmaceuticals, medical treatment, food, metallurgy and smelting etc. Corrosive materials, insulating materials, anti-stick coatings, etc. make it an irreplaceable product.


    Production Process and Related Machines


    1. Conductor Stranding---- HH-B-500 High Speed Bunching Machine


    2-5mm Teflon Cable Making Machine Electrical Wire Manufacturing Equipment

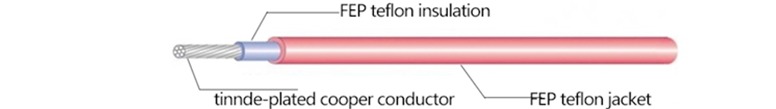

    2. Conductor FEP Insulation

    HH-E-35 Teflon Cable Extrusion Machine


    Components and Parameters


    1. HH-B-500 High Speed Bunching Machine


    Application:

    It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.


    Components:

    No.ItemsQuantity
    1500 Bunching machine1 set
    2Pay off stand multi-core copper wire1 set

    Parameters:

    No.ItemsValue
    1Single wire diameterØ0.08mm-Ø0.30mm
    2Stranding area0.3mm2-2.5 mm2
    3Stranded wire length calculationHow many meters per minute = twisting distance *2/1000* twisting bow speed per minute
    4Twisting pitch5.66 - 39.37mm
    5Rotation speed of arched bandMax: 2200RPM.
    6Spindle lubricationUse manual grease gun to inject oil


    2. HH-E-35 Teflon Cable Extrusion Machine


    Application:

    This equipment is suitable for outer surface extrusion of Teflon wires and cables with insulation materials such as FEP, FPA, ETFE, PVDF.


    Components:

    No.ItemsFeatures
    1400-630 motorized pay-off stand1 set
    25-wheel Straightening device1 set
    3Copper wire automatic sensor preheater1 set
    435 Teflon extruder1 set
    5U7 non-adjustable head1 set
    6Automatic drying and feeding machine1 set
    7PLC Electric control box1 set
    81.5m Movable water tank with cover1 set
    9Diameter tester1 set
    108m Fixed water tank1 set
    1110 m Slide rail type + anode guide wheel storage rack1 set
    12Dual-wheel capstan1 set
    13Meter counter1 set
    14High frequency spark tester1 set
    15400-630 Double-head take-up machine1 set
    16Spare parts

    Parameters:

    No.ItemsFeatures
    1Inlet Wire Diameter0.3~2 mm
    2Finished Wire Diameter0.5~3 mm
    3Cross Sectional Area0.5~2.5 square mm
    4Extrusion SpeedMax 150 m/min
    5Extrusion Capacity50 kg/h
    6Installed Capacity60 kva
    7Voltage380KV, can be customized
    8Weight3500 kg
    9Measurement (L*W*H)23*3*3 m
    10Workers recommendation3 workers
