    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-1000
    Certification : CE/ISO
    Price : 231500
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10 set/month
    Delivery Time : 60
    • Product Details
    • Company Profile

    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine

    Company Profile
    00:05
    02:00
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions
    Product Description
    Application
    It is suitable for the twisting and synchronous winding of insulated core wires such as LAN cable, CAT7 CAT8, etc. This single twisting machine is widely used in various types of wires and cables production process.
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Usage
    Cat5,cat6,cat7,cat8 network cables, data cables. Communication cables. Coaxial cables, etc. in multiple collections and continuous
    wrapping
    Applicable wire diameter
    Single wire diameter: ø0.75mm~2.0mm covered core wire.
    Stranded wire diameter
    15MM/max
    Range of strand distances.
    20~200mm(customized)[HMI, data setting type]
    Main engine speed
    MAX500RPM
    Applicable take-up bobbins
    Ø1000mm*750mm, out width*ø127mm Shaft Bore
    Detail show
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    5 Heads ø500 Active Pay-off
    Type
    Horizontal, shaftless. Double-sided operation
    Spool size
    ø400-630mm 5 heads; two heads per group for a total of three groups; the last 1 head is common to 400-630 bobbins, the other four
    heads are common to 500-630
    Power
    1HP*4PReduction motors + 1HP Phase volume inverters
    Swing-arm active pay-off, stable pay-off, swing-arm up and down angle not more than 2 degrees
    Vertical foil holder + hub
    Type
    Single head split type
    Turntable
    (1)Diameter: ø300mm.(2)Width: 15mm~30mm.(3)Aperture: ø50mm
    Applicable materials
    cotton paper, mylar tape, aluminium foil
    Tension adjustment: 1.2kg magnetic powder brake + electronic counter + automatic tracking of the tension control board. Tension
    can be set from empty to full disc, the tension value will change linearly with the change from empty to full disc, the output
    tension is stable and reliable, and will not break the belt.
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine

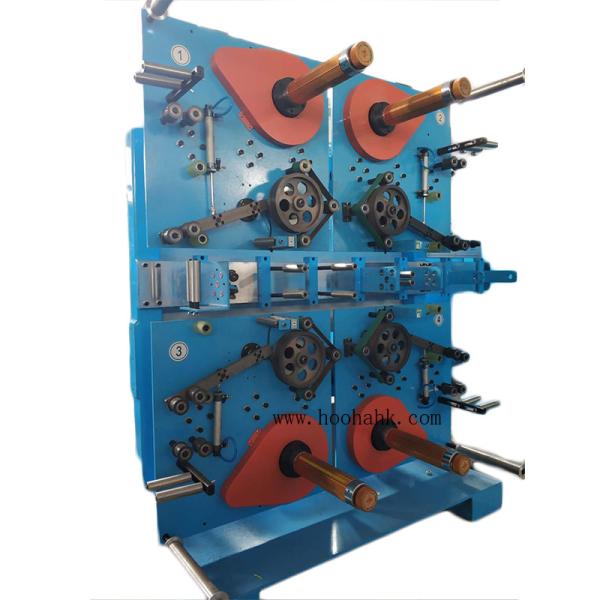

    4 head active-to-shielded bale hauler
    Form
    4 head , active aluminum foil belt , (central height of the input as the boundary )2 heads on both end
    Power/tension
    motor + frequency converter + tension pendulum control , tension stablized
    3.Barrel aluminum foil, aluminum foil shaft hole 75
    4.Locking mode of apex cone screw teeth
    5.Combined Guide bar , ensuring the quality of Aluminium foil wrapping
    Form
    dual wheel . Wheel diameter: ø400mm , Three channels to three channels
    Power
    servo motor + controller
    Stranding range
    50mm-300mm
    Traction wheel material
    cast aluminum, anodized surface treatment;
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    Cat5 Cat6 HDPE Lan Cable Twister 1000 Cantilever Single Twisting Machine
    1000 cantilever single twisting mainframe parameters
    1.Usage:
    .CAT5 CAT6 CAT7 CAT8 high end network cable control cable, communication cable,coaxial cable and other multiple collections and continuous banding
    2.Applicable single wire diameter:
    single wire diameter: ø0.75mm~2.0mm covered core wire
    3.Stranded wire diameter:
    ø15mm/max
    4.Range of stranding distance:
    Range of row distance:
    20~300mm [data setting, HMI setting type] 5~25mm [data setting, HMI setting type].
    5.Split line template arrangement:
    1+6+12+18 evenly distributed; eye mold material: ceramic
    6.Spindle speed:
    500RPM/MAX
    7. Wire speed:
    100m/min. (Max, depending on the strand distance)
