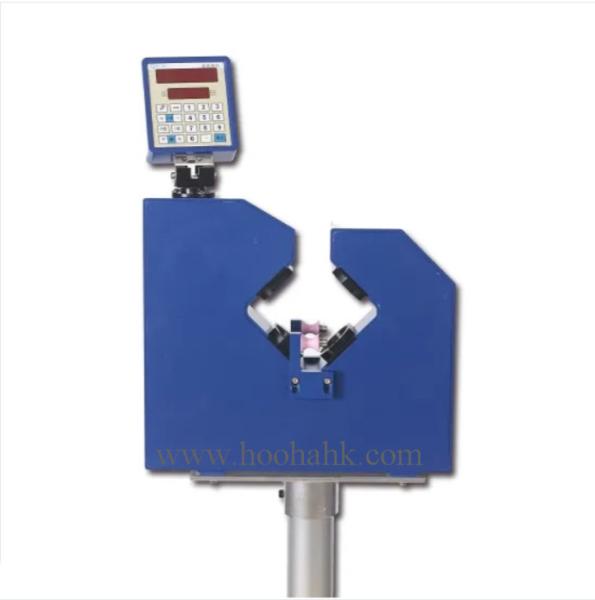

    Laser Cable Diameter Guage Measuring Device Dynamic External Diameter Guage Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-03
    Certification : CE/SGS/ISO
    Price : USD 2300
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1000 units/year
    Delivery Time : 15 days
    • Product Details
    • Company Profile

    Laser Cable Diameter Guage Measuring Device Dynamic External Diameter Guage Machine

    Product Description
    1. Features:
    •Laser two-dimensional scanning: Two bunches of lasers to do outer diameter measurement of non-contact ,non-damage from the different angle, it can effectively eliminate error caused by work vibration;
    •DSP data processing technique: The sampling speed is quick ,precision is high and the performance is stable;
    • The reaction control integration module with PID constitute the online outer diameter closed loop observation and control system
    (e.g.: diameter of the object measured is slight big or small, transmission rate is big or small), which can change the transmission rate to control the outer diameter be tested through adjusting the power supply with PID. It’s easy to operate, user can setup a boundary numerical value, main engine will give an alarm automatically while the test result exceeds the set value.
    2. Applications:
    The HH-1 Laser Diameter Instrument is a high accuracy one without contacting designed on the basis of the laser scan measuring principle. The 2-dimension measuring mode is applied to the instrument, and the 2-way laser beam is in the positive cross design in the measuring field, thus effectively eliminating testing errors caused by work piece shocks. It is special suitable for real-time measurement of the production field, and widely used in the test of round wire materials such as communication cables, optical cables, co-axial cables and power cables, and the test of various kinds of other round work piece diameters.
    3. Technical specifications
    * Measuring range: 0.2-30mm(HH-1)
    * Sensitivity: 1um
    * Measuring accuracy: ±2um(HH-1)
    * Ambient temperature: 4-40℃
    * Ambient humidity: <85% without condensed dew
    * Power consumption of instrument: less than 50W
    * Operating voltage: (AC220V 50Hz 110V 60Hz) ±10%
    * Scanning rate: greater than 50m/s
    * Dimension : 7.6*29*36.6(cm)
    * Weight:8.5kg
    * Colour: Black
    * Place of Origin: Guangdong, China (Mainland)
    4. standard delivery
    Main unit.....................……..……..……..……...1pc
    Manual......................……..…..……..……..…….1pc
    Optional delivery
    the serial communication cable……………..0m
    display control box…………..………………....…..1pc
    support……………………....……....……..………..…..1pc

    5. Services
    This instrument has one-year quality guarantee, maintenance for all life. If there are any problem of this product, please contact
    the dealer in time.
    Item
    Value
    Place of Origin
    China
    Guangdong
    Brand Name
    Hooha
    Model Number
    HH-1
    Usage
    Testing
    Name
    Diameter guage measuring instrument
    Dimension
    7.6*29*36.6(cm)
    Power
    220V(50Hz),110V(60Hz)
    Weight
    8.5kg
    Measure range
    0.2~30mm
    Sensitivity
    1um
    Color
    Customer Requirement
    Ambient temperature
    4-40℃
    Measuring accuracy
    ±2um(ETB-05C)
    Voltage
    AC220V 50Hz 110V 60Hz
