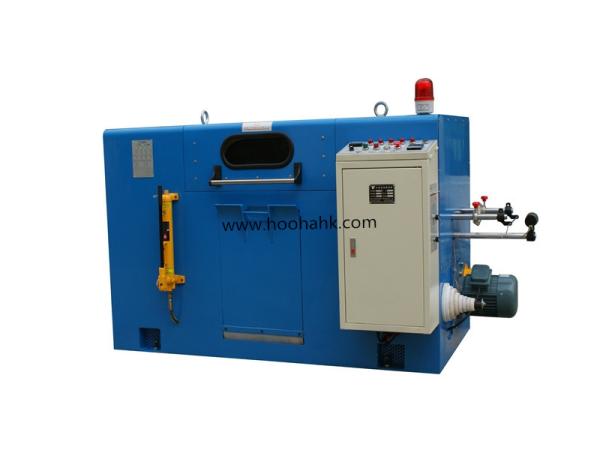

High Productivity Cable Twisting Machine For Bunching / Stranding

    Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers

    Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers
    • Buy cheap High Productivity Cable Twisting Machine For Bunching / Stranding from wholesalers

    High Productivity Cable Twisting Machine For Bunching / Stranding

    Ask Lasest Price
    Brand Name : Hooha
    Model Number : HH-300/500/650/800/1000
    Certification : ISO, CE, SGS
    Price : USD45000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1unit30days
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High Productivity Cable Twisting Machine For Bunching / Stranding

    Specification
    item
    value
    Place of Origin
    China
    Brand Name
    HOOHA
    Model Number
    HH-300/500/650/800/1000
    Usage
    Twisting
    Certificate
    ISO/Ce
    Motor
    Siemens
    Bearing
    NSK
    Inverter
    Siemens
    Electric Element
    Siemens and Omron
    Features
    Automatic
    Transport Package
    Plastic Package
    HS Code
    8479811000
    Warranty
    12 Months
    Product Description
    High Productivity Cable Twisting/ Bunching/ Buncher/ Stranding/ Strander Machine
    High Productivity Cable Twisting Machine For Bunching / Stranding
    Application:
    Mainly used for copper wire, copper clad aluminum wire , copper clad steel wire , tin-plated wire , sliver –plated copper wire etc , 7 or more than 7 stranded.
    Main Function :
    A. Inlet wire diameter : Φ0.08mm--Φ0.25mm B. Twist Cross section 0.035-1.0mm2 C. Twisting pitch:0.8-10mm (adjustable according to customer requests) D. Twisting limit : for twisting more than 7 strands copper wire E. Rotation : Stepless speed control , MAX . 3500rpm
    High Productivity Cable Twisting Machine For Bunching / Stranding
    Layout of the equipment
    High Productivity Cable Twisting Machine For Bunching / Stranding
    Inside of machine
    HOOHA cable twsiting machine
    Model number
    HH-300
    HH-400
    HH-500
    HH-650
    Purpose
    for twisting more than 7 strands copper wire
    Rotation
    Max:4000rpm
    Max:3600rpm
    Max:3200rpm
    Max:1800rpm
    Inlet wire dia.
    φ0.06-φ0.28mm
    φ0.08-φ0.45mm
    φ0.08-φ0.45mm
    φ0.16-φ0.45mm
    Cross section
    0.03-0.4mm
    0.08-0.9mm
    0.14-0.21mm
    0.8-5.5mm
    Twisting pitch
    3-17mm
    4.08-31.5mm
    5.7-52.8mm
    11.4-100.02mm
    Taking up axis
    φ300mm
    φ400mm
    φ500mm
    φ650mm
    Motor
    3.7KW
    3.7KW
    5.5KW
    5.5KW
    Twisting direction
    S or Z
    Flatting
    Bearing flatting, adjustable row distance and row breadth
    Brake
    Electromagnetic brake, and braking automatically when the wire inside or outside breaking
    The wire samples
    High Productivity Cable Twisting Machine For Bunching / Stranding
    *Apply for BV BVR RV wires
    High Productivity Cable Twisting Machine For Bunching / Stranding
    * Multistrand copper/aluminium/steel wire and cable
