Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Buy cheap Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct from wholesalers

    Buy cheap Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct from wholesalers
    • Buy cheap Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct from wholesalers

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-1250
    Certification : CE ISO RoHS
    Price : 208700 USD
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10sets/per month
    Delivery Time : 60
    • Product Details
    • Company Profile

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Product Description
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    HH-1250 Double Twist Bunching Machine
    Application:It is applied to the twisting of above 7 pcs of bare copper wires,tinned wires,
    silver jacketed wires and enamelled wires and double twisting for core wires.
    Conductor Inner Diameter
    BV Conductor
    7*1.34mm
    7*1.69mm
    7*2.12mm
    7*2.5mm
    19*1.78mm
    19*2.12mm
    BVR Conductor
    49*0.51mm
    49*0.64mm
    98*0.57mm
    133*0.58mm
    133*0.68mm
    RV Conductor
    77*0.40mm
    119*0.40mm
    189*0.40mm
    266*0.40mm
    378*0.40mm
    360*0.50mm
    Feature Descriptions
    1 High production speed, constant tension from empty to full bobbin, especially for high quality stranding wire. 2. Use shaft to calculate meters, less than 0.01% error for a certain wire&cable. 3. With FC-100 active back-twist pay-off machine to achieve bunching instead of twisting. 4. Especially for twisting small cross-section area. 5. Use synchronous belt drive, 6. Change guide wheel to change lay distance, easy to operate. Sample Picture

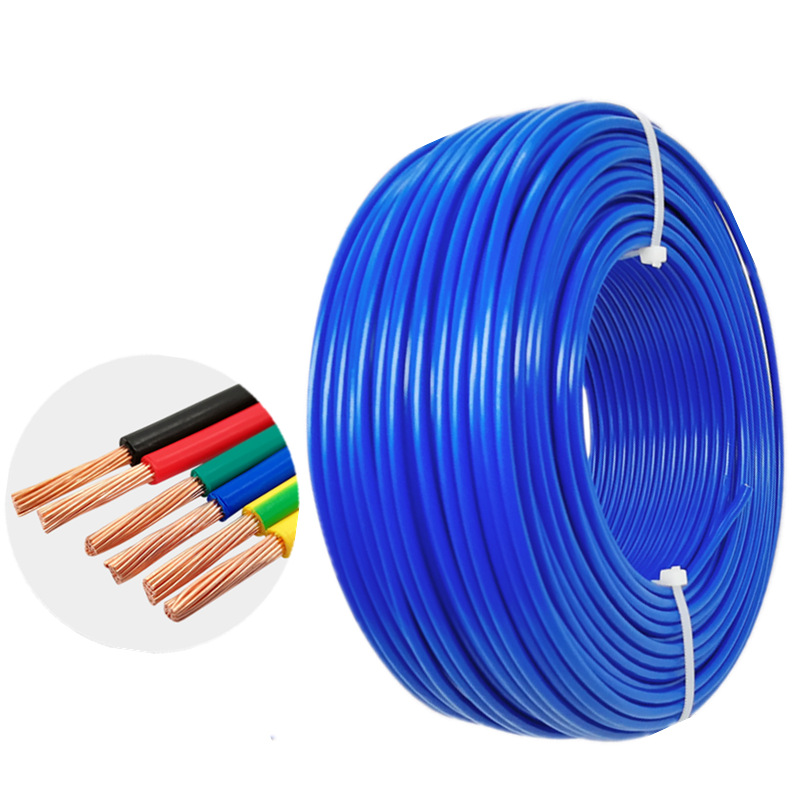

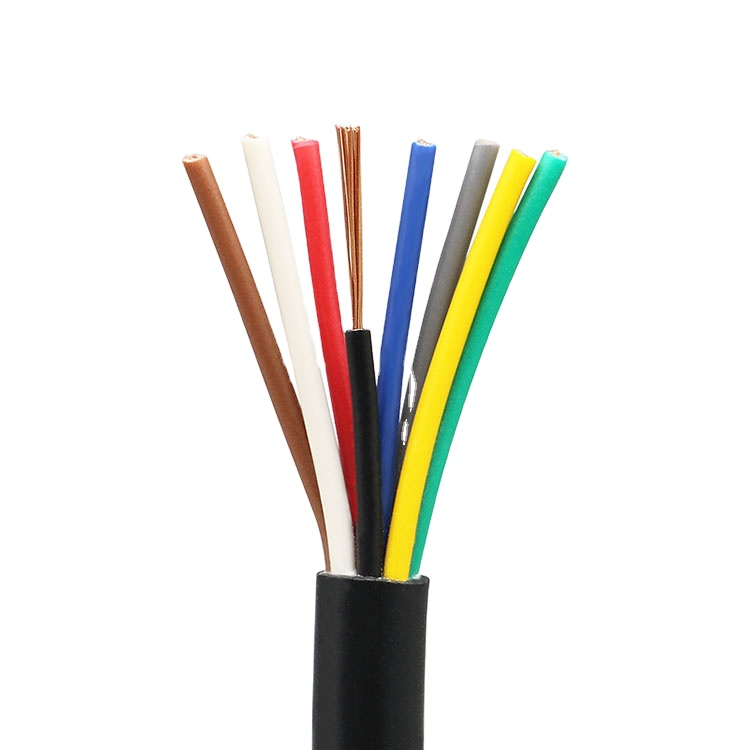

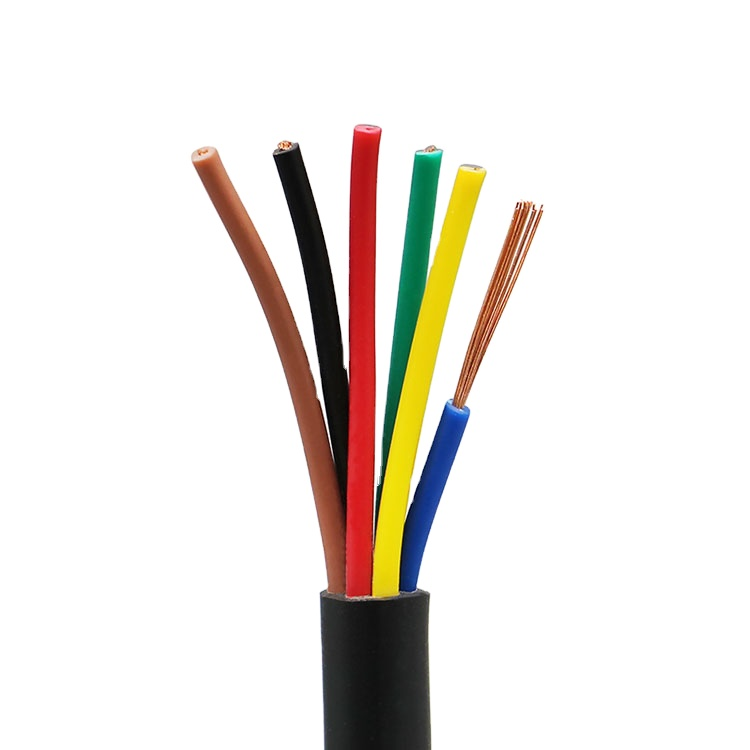

    Samples
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Specifications
    Single Wire Diameter
    Φ0.5~2.14mm
    Stranding Section Area
    10.0~50.0 mm2
    Core Wire Single Wire Diameter
    Φ3.0~8.0mm
    Core Wire Stranding Outer Diameter
    Φ6.0~16.0mm
    Pitch
    50-250mm(12sections)
    Direction of Lay
    optional for right or left
    Take-up Bobbin
    Φ1250*Φ80*950
    Max Rotating Speed
    800rpm(1600twist)
    Main Motor Power
    22KW
    Inverter Power
    22KW
    Magnetic Powder Clutch
    20kgf
    Brake Mode
    Electromagnetic Brake
    Dimension
    4500L*2600W*2500H mm
    Company Profile
    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong Kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions.
    Technical Team
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Hu,machine designer

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Bi,general engineer

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Wen,plant engineer

    Name
    Education
    Position
    Mainly responsible for project
    Specializing in project
    Working history ( year )
    Zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15
    Xiaohua Hu
    college
    Vis general engineer
    The total project design and planning
    net cable,data cable machine
    10
    Changhong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25
    Xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15
    Lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16
    Zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15
    Jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7
    Xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10
    Changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10
    Haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8
    Sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5
    Customer Cases
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Customer in Algeria

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Customer in India

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Customer in South Korea

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Customer in Egypt

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Customer in America

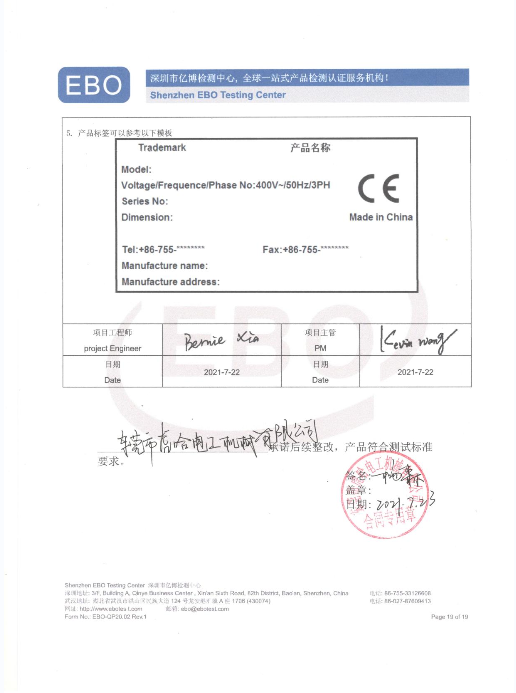

    Exhibitions & Certifications
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Exhibition in Thailand,2019

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Exhibition in India,2018

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Exhibition in Shanghai,2014
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    Packaging and Delivery
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Packing with Wood

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Packing with Carbon

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Packing with PE Plastic

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Shipping

    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct

    Arriving

    FAQ
    Wire and Cable Making Machine with 1250 Double Twist Stranding Machine to The Twisting of Above 7 PCS 0.4-2.12mm Conduct
    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
