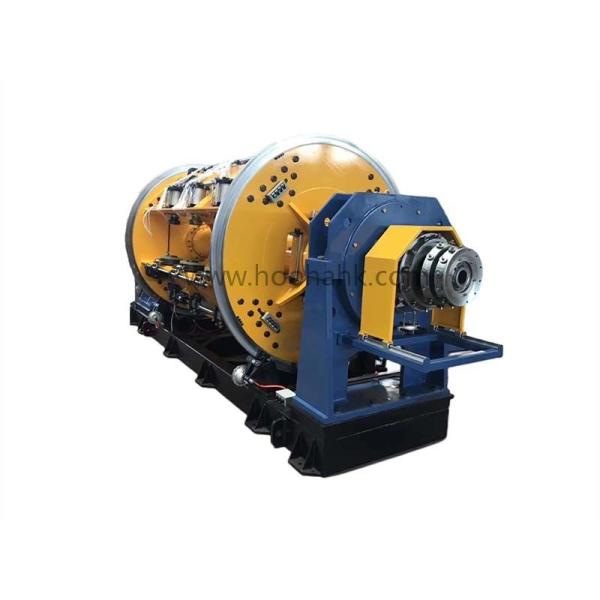

    High Speed Rigid Stranding Machine For Electrical Cable 190RPM

    Ask Lasest Price
    Brand Name : Hooha
    Model Number : HH-500-1+6+12+18
    Certification : ISO, CE, SGS
    Price : USD80000/unit
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 1unit30days
    Delivery Time : 60days
    • Product Details
    • Company Profile

    High Speed Rigid Stranding Machine For Electrical Cable 190RPM

    Product Description
    High Speed Rigid Stranding Machine For Electrical Cable 190RPM
    Application:
    It is used for the wring and compacting of fan-shaped conductor, wringing and drawing of circular conductor, and pre-wringing and wringing of conductor core. Mainly used for copper and aluminum conductor cables twisted wire system fan pressed,pressed and drawn round conductor segment conductor strands twisted pre-pressed.
    Trait:
    1. Design the top hole of special machine processing frame to ensure the concentric degree of two holes so as to avoid the
    concentric problem affecting the tension;
    2. Optimized clamping structure, more stable pneumatic tension, more reliable clamping bearing;
    3. Newly added upper disc mechanism at the lower hydraulic side enriches the upper disc varieties;
    4. The newly added electric clamping mechanism enriches the clamping form.
    High Speed Rigid Stranding Machine For Electrical Cable 190RPM
    Item
    Unit
    HH-500
    Stranding-single wire Dia.
    mm
    Copper
    Ø1.5~4.5
    Aluminum
    Ø1.8~5.0
    Max. section area
    mm2
    Copper
    500
    Aluminum
    630
    Cage rotating speed
    r/min
    63~148
    Hauling line speed
    m/min
    6.87 ~ 52.2
    Stranding pitch
    mm
    47 ~ 825
    Capstan Dia.
    mm
    Ø 2000*2
    Central payoff bobbin size
    mm
    PN1600
    Payoff bobbin size in cage
    mm
    PND500
    Takeup bobbin size
    mm
    PN 2500
    Machine center height
    mm
    1000
    Main motor power
    KW
    55
    Item
    Unit
    HH-630
    Stranding-single wire Dia.
    mm
    Copper
    Ø 1.5~4.5
    Aluminum
    Ø 1.8~5.0
    Max. section area
    mm2
    Copper
    300
    Aluminum
    400
    Cage rotating speed
    r/min
    6 Bobbins
    75~174
    12 Bobbins
    67~156
    18 Bobbins
    57~133
    24 Bobbins
    48~112
    30 Bobbins
    43~100
    Hauling line speed
    m/min
    6~45.6
    Stranding pitch
    mm
    34~1041
    Capstan Dia.
    mm
    Ø 2500*2
    Central payoff bobbin size
    mm
    PN1600
    Payoff bobbin size in cage
    mm
    PND630
    Takeup bobbin size
    mm
    PN2000
    Machine center height
    mm
    1000
    Main motor power
    KW
    45
    The wire samples
    High Speed Rigid Stranding Machine For Electrical Cable 190RPM
    High Speed Rigid Stranding Machine For Electrical Cable 190RPM
    The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.
