    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-T
    Certification : ISO/CE
    Payment Terms : L/C, T/T
    Supply Ability : 1000
    Delivery Time : 60 working days
    Price : negotiable
    • Product Details
    • Company Profile

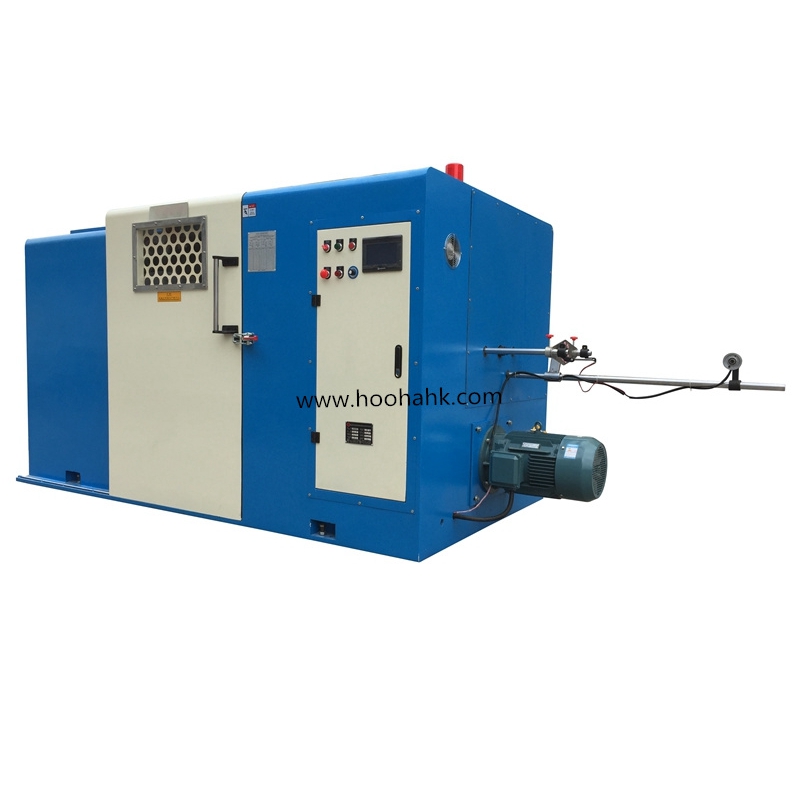

    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation

    HH-T-1000 High Speed Bunching Machine with high technical support and good guarantee

    1. Application

    It is suitable for stranding of the copper wires with more than seven strands, also suitable for electronic wires, power wires, bare copper wires, network wires etc.

    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation



    2. Recommendation


    No.ItemsQuantityReference Picture
    11000 Bunching machine1 unitHigh Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation
    2Pay off stand multi-core copper wire1 unitHigh Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation



    3. Wire Inlet Structure


    After all the lines are released from the pay-off rack, they enter the splitter board through a set of guide wheels and enter the eye mold for twisting.

    2.Distribution board gauge: Our standard distribution board has 19 holes (also can be customized according to customer requirements).

    3.Inlet eye mold specification: (Outer circle) Ø25* (Height) 15, inner hole design according to customer requirements.

    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation


    4.Wire rewinding structure

    (1) Bobbin: Standard bobbin: (outer diameter) Ø500* (outer width) 300* (inner hole) Ø56; pine hole: Ø25; distance to the bobbin hole: 99mm (max.) or 83mm (min.)

    (It may be customized too)

    (2) Tension: There is a manual mechanical tension regulation system that is mainly used for regulating the pressures of springs.

    (3) Loading and unloading of the bobbin: The bobbin has a hydraulic lifting iron shaft, convenient and flexible.




    5. Technical Specification


    ModelRight-hand model. The operator faces its front and the wires enter it from its right side
    Rotation speed of arched bandMax: 2200RPM. The bow strap is a guide wheel bow strap
    Twisting pitch5.66 - 39.37mm (can be adjusted appropriately according to customer needs), manual gear change twisting pitch
    Stranded wire length calculationHow many meters per minute = twisting distance *2/1000* twisting bow speed per minute
    Twisting directionArbitrary selection of left and right twisting direction
    Single wire diameterØ0.08mm-Ø0.30mm
    Stranding area0.3mm2-2.5 mm2
    TraverseGerman-style bearing polished rod Traverse, the Traverse range and Traverse distance can be adjusted
    Spindle lubricationUse manual grease gun to inject oil
    Drive motor5HP Siemens motor, 5HP inverter stepless speed regulation.
    BrakeElectromagnetic brake, automatic brake for internal and external disconnection
    Disconnection protectionWhen internal and external disconnection occurs, it will automatically stop and alarm
    InchingThe inching button outside the electrical console
    Speed displayTachometer on the control panel
    Electrical controlThe setting and operation of equipment electrical parameters are set through the control panel
    External power cordThe external power cord is pulled to the electric control box by the user
    Warning lightRed: shutdown due to failure
    Meter counterSix-digit electronic meter counter
    Electrical componentsNational or international high-quality brands
    BearingsBearings imported with original packaging from Japan and Germany (such as KOYO, NSK and FAG)
    Internal accessoriesNational or international high-quality brands
    Machine noiseBelow 75dp (measured 1000mm away)
    Ambient humidityCan not exceed 90%, if it exceeds, please dry it before turning on the machine
    Workshop temperatureCan not exceed 40℃, if it exceeds, the inverter will automatically protect and trip
    Floor areaL2400*W1300*H1450MM
    Box colorBlue (according to customer requirements)

    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM RotationHigh Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation



    6. Equipment Layout

    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation




    7. Factory Picture


    High Speed Wire Bunching Machine 4mm2-16mm2 800RPM Rotation




    8. Payment of 630 Cantilever Single Twisting Machine

    T/T




    9. Delivery Time of 630 Cantilever Single Twisting Machine


    60 days




    10. FAQ of of High Speed Bunching Machine

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3. what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese




    7. Why chose HOOHA


    Before sales

    1) 88 successful turnkey factory project .

    2) Help over 28 clients from around the globe build their program from the ground.

    3) Most humanized cable making solution provided by professional sales team with 10 years experience .

    4) Complete access for all aspect of supply chain in professional cable industry with 18 years experience , including manufacturing material , technology , testing equipment , etc .

    5) For 15 years , HOOHA stand alongside the client , considering and solving from the perspective of client’s marketing angle with all-around , precise and applicable solution .

    6) HOOHA help saving the communication time cost for dealing with over dozens of supplier in the supply chain , mean while clients can generate much more value with same amount of time .

    Middle sales

    7) 10 years experience engineer team for overseas cable and wire industry manufacturing and machinery installation and maintenance .

    8) 10 years experience engineer planing team for whole factory project including machinery , space layout , operational plan , water air electricity consume , raw material and such .

    9) 10 years experience professional team working on daily management and operation craft for cable and wire factory .

    Vision

    1) HOOHA is willing to grow with clients and achieve a mutual victory through business .

    2) HOOHA spare no efforts to work for the future that all people is able to use clean electricity energy .
