    Cable And Wire Coiling And Packing Machine 220V / 380V Winding

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-1040
    Certification : CE/SGS/ISO
    Price : 39700USD
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10unit/ month
    Delivery Time : 60
    • Product Details
    • Company Profile

    Cable And Wire Coiling And Packing Machine 220V / 380V Winding

    Wire And Cable Making Machine Cable Coiling And Wrapping Machine Wire Winding Machine
    Product Description
    Application
    This equipment is suitable for cable automatic coiling and wrapping, which would be packaged into a coil and can be connected to the cable extrusion machine for linkage use.
    Coiling Speed
    800 RPM
    Coiling Size
    Outside diameter is 200-460mm, height is 50-120mm, Inner diameter is 140-220mm
    Applicable Wire Range
    1.5-7mm
    Power Supply
    AC 380 V, three-phase, 50 HZ or customized
    Operation Direction
    Left or right side(Can be customized)
    Packaged Coil Weight
    MAX 35 kg

    Features

    1Automatic packaging, wrapping and labeling
    2

    Packing label capacity 7 times more than manual


    3

    200m per coil and coiling speed 4 times more than manual


    4

    Can be directly connected to the extrusion machine


    5

    Servo motor flat cable system, perfect packing


    6

    Automatic warning system, easy control of the operation


    7

    99 types of the coiling storage and can change as you like


    8Touch screen man-machine interface operation, all circuit control adopt microcomputer programmable controller
    9Cable row system adopt servo motor wiring system, the speed as the same as the main machine
    10The meter count is close to the accuracy of 0.01,forecast slow down the speed, automatic coiling renew. One coil can be set and close to 0.2% accuracy
    11The machine PLC contacts with power frequency spark machine for the spark of BV line detection, can automatic spark breakdown point or artificial mark continue knitting function or automatic increase 5 meters length into a circle
    12The machine PLC contacts with caliper gauge. Diameter is not up to standard can be automatically eliminate waste line or artificial marking after continue to function

    Technical Specification



    400-630 Magnetic Powder Type Payoff Stand


    1. Type:No axis cone

    2. Bobbin Lift:1HP Motor + Drive Screw Lift

    3. Shaft Diameter:PD400-630

    4. Tension:Magnetic powder tension control. The pay-off tension is controlled by adjusting the voltage of potentiometer


    Wire Straightening Device

    1. Wheels:Four grooves on each

    2. Treatment:Anodized for long-term usage

    3. Tension control:Middle wheels move up and down under the action of spring

    4. Material:Q-235-A/Q-245-A/#45




    PLC Automatic 1040 Coiling And Wrapping Main Machine



    1. Use PVC/PE film, high-speed coiling and wrapping

    2. The film roll loading method is pneumatic clamping

    3. PVC/PE/PP film size:Thickness 0.05-0.07mm * width 40-50mm

    4. Adopt touch screen interface (man-machine interface) operation is simple and convenient

    5. Wire arm type, driven by AC motor, rotating reel smoothly

    6. Use electric method to adjust the size of the holding arm, fast and convenient

    7. Equipped with automatic label feeding mechanism, which can automatically pick up a label and send it to the coil

    8. With PLC system, high stability and convenient operation, and 99 sets of different coil packaging specifications can be memorized. When the product specifications are changed, only the memory data needs to be read, and the production can be done immediately without adjustment and testing.

    9. There are convenient and stable instruments and switches on the operation panel: touch screen, speed adjustment button, emergency switch, etc.



    The Wire Samples
    Related products
    Cable And Wire Coiling And Packing Machine 220V / 380V Winding
    Spool/ Bobbin
    Cable And Wire Coiling And Packing Machine 220V / 380V Winding
    Film E

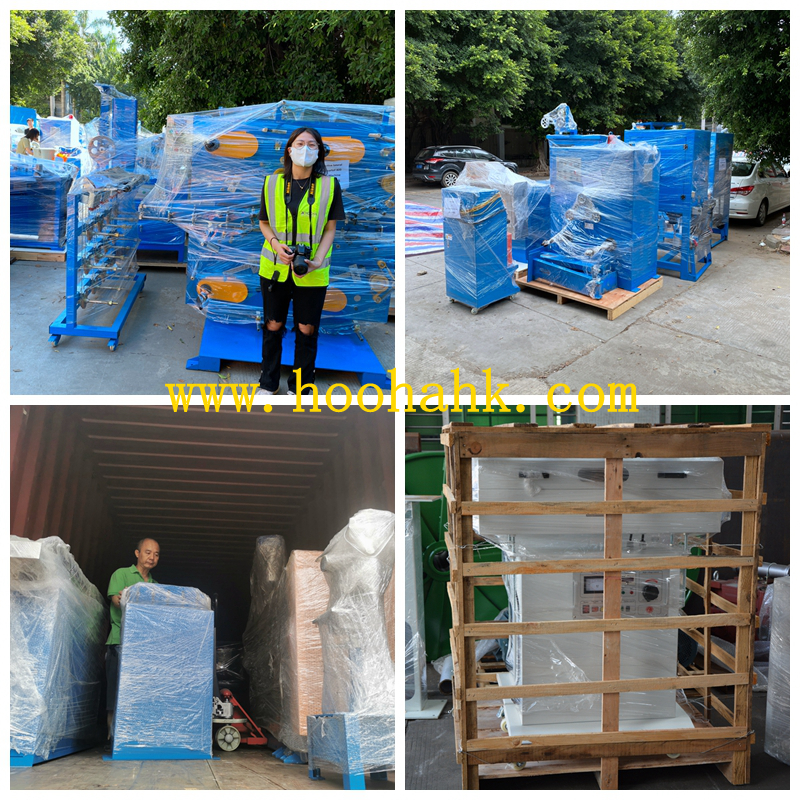

    Packing & Delivery
    Cable And Wire Coiling And Packing Machine 220V / 380V Winding
    Cable And Wire Coiling And Packing Machine 220V / 380V Winding
    1. film packing 2. wooden package 3. enclosed wooden package
