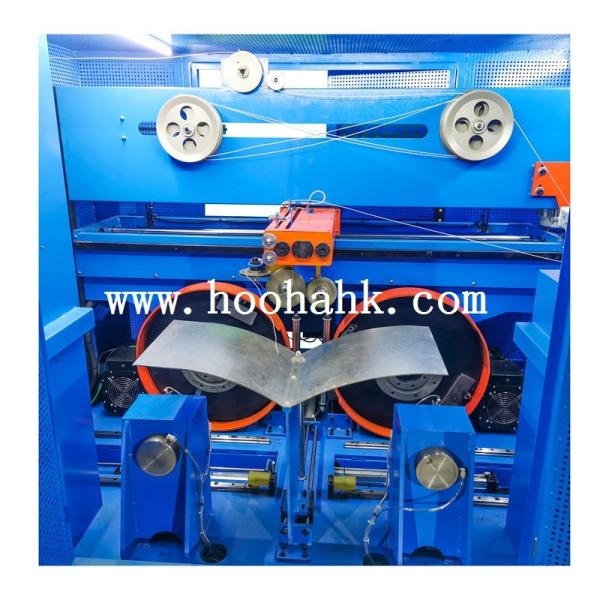

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-70+35 Extruder
    Price : 64500 $ per set
    Payment Terms : L/C, T/T
    Supply Ability : 100 pieces per month
    Delivery Time : 60 work days
    • Product Details
    • Company Profile

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Application



    It's used for the copper wire insulation coating, then the wire get cooling through water to finished products. The product can be power cable, automotive wire, communication cable, magnetic wire, LAN cable and so o


    production descraiption

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Power Wire Extrusion Machine
    Vedio Link on YouTube:

    Consisting Components:

    No.
    Items
    Features
    1
    Inlet Wire Diameter
    1~4mm
    2
    Finished Wire Diameter
    2~8 mm
    3
    Cross Sectional Area
    1~6 square mm
    4
    Extrusion Speed
    Max 400 m/min
    5
    Extrusion Capacity
    140 kg/h
    6
    Installed Capacity
    55 kva
    7
    Voltage
    380V, can be customized
    8
    Weight
    4000 kg
    9
    Measurement (L*W*H)
    24*3.5*3.5 m
    10
    Workers recommendation
    2 workers

    Note: The above parts can be selected according to the needs of the customer



    Main Parts Function:
    1. Inverter: The speed can be changed from zero to max
    2. Pay-off tension: Control automatically by electricity
    3. Take-up machine uses Polish rod, transverse and distance can be adjusted by plain shaft.
    4. Machine center height: 1 meter
    5. Diameter of screw: 70mm

    6. The surface of screw is carburized and quenched, electroplated with hard cr.
    7. Inside diameter of screw tube: 70mm.
    8. The surface is carburized and quenched.
    9. The material of insulation are PVC, XLPE, LSHF, PE, PP, TPEE, NYLON
    10. Production direction: Pay-off on the left. Take-up on the right. Customer's requirement

    11. Color of production line is light blue(automobile finish ), safe cover is yellow OR customer's requirement
    12. PROMOT SWITCH counter, set length freely.
    13. Automatically stop: When the counter has reached to your desired length, the Take up will stop automatically, if wire breaks
    abnormal and self-actuating brake.

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Siemens PLC electric control box
    1. PLC Siemens 2. Language English / Chinese 3. Operation Touch screen with quick response 4. Control Single / linkage 5. Monitoring and control Data can be set and display on the screen: host rotation speed, extrusion speed, temperature, actual outlet meters etc. Humanized design, simple, convenient and safe operation 6. Inverter Adopts full frequency conversion control, which greatly reduces the energy consumption and ensures the stability of the entire production line.
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    90 Host extruder
    1. Insulation material PVC, PE 100% plasticization 2. Extrusion capacity Max 280 kg/h 3. Rotation speed Max 70 rpm 4. Motor 37 kw 5. Heating section 8 6. Cooling section 5 7. Temperature control PID automatic control, 0-399 ℃ 8. Screw diameter 90 mm 9. Length/Diameter ratio 25/1 10. Center height 1000 mm 11. Material and process 38CrMoA1A alloy steel with nitriding treatment, chromed and polished
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    800-1600 gantry pay-off stand

    1. Bobbin diameter 800-1600 mm 2. Bobbin width 600-1180 mm 3. Loading Max 5000 kg 4 Pay-off speed 150 m/min 5. Slide motor 1.5 kw 6. Lift motor 1.1 kw 7. Tension control Pneumatic brake control

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    100 adjustable extrusion head

    1 Centrality Adjustable 2 Construction Single layer or color line 3 Material and process 40CrMoA1A alloy steel with nitriding treatment, chromed and polished

    The wire samples

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    1mm² power cable
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    power wire sampl

    Company Profile

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Hu Machine Designer

    20 years engineering design experience
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Bi Head Engineer

    Responsible for project type engineering
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    Chen Senior Engineer

    Machine design for 30 years
    Professional and Strong Manufacture and Sales Team
    Name
    Education
    Position
    Mainly responsible for project
    Specializing in project
    work year
    zanyang Xie
    college
    General Engineer
    The total project design and planning
    power cable machine
    15 years
    xiaohua Hu
    college
    Vis general engineer
    The total project design and planning
    net cable,data cable machine
    10 years
    Changhong Cheng
    college
    Engineer
    Drawings and after-sales service
    Teflon,Optical fiber cable machine
    25 years
    xiuwu Chen
    college
    General Engineer
    The total project design and planning
    copper drawing machine
    15 years
    lixin Yuan
    college
    Engineer
    The project design and planning
    coppwer wire making technical
    16 years
    zhenghai Qiu
    college
    cable engineer
    After service
    cable making and cable factory management servie
    15 years
    jinxin Liu
    college
    Marketing engineer
    After service
    electrical engineer
    7 years
    xingguo Tang
    High school
    Electrical engineer
    After service
    electrical engineer
    10 years
    changqiang Li
    High school
    Maintain engineer
    After service
    machina maintain and install service
    10 years
    haipin Li
    University
    Engineering director
    Marketing and sales
    project consulting
    8 years
    sen Yang
    University
    Engineering translator
    Marketing and sales
    project consulting
    5 years

    Our aim: To be a world-class supplier providing wire & cable manufacturing and using solution. Our vision: To make wire & cable manufacturing and using more humanized. Our target: More professional customer service, struggle for employees' dreams. We are a Hong kong company, focusing on in-depth cooperation with Chinese leading manufacturers to provide advanced wire&cable solutions

    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Modern workshop environment
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Large-scale standardized and automatic production
    Factory & Workshop &Warehouse
    Company name
    HOOHA Co.,Ltd
    Established
    2003
    Main products
    upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added service
    Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable
    testing laboratory construction.
    Factory location
    Dongguan, China
    Manufacturing Center
    4000 sqm
    Showroom
    More than 2000 sqm.
    Exhibition
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    2018 Bombay, India Fair
    Our company took part the exhibition in India in 2018.
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    2019 Thailand Exhibition
    Our company is attached to Thailand to participate in the exhibition in 2018
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35

    2020 International Cable & Wire Fair

    Our company will participate in the Shanghai International Cables and Wire Wire Exhibition in 2020
    Customer Cases
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Algeria
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Dubai
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Syria
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Houston, USA
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Egypt
    Packing & Delivery
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    Siemens generator Stable extruder two-color Cable manufacturing extruder 70+35
    To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
    FAQ

    1. who are we?
    We are based in Guangdong, China, start from 2017,sell to Africa(17.00%),Mid East(17.00%),Southeast Asia(16.00%),Eastern Asia(13.00%),South Asia(10.00%),South America(8.00%),Eastern Europe(4.00%),North America(3.00%),Northern Europe(3.00%),Southern Europe(3.00%),Oceania(2.00%),Western Europe(2.00%),Central America(2.00%). There are total about 5-10 people in our office.

    2. how can we guarantee quality?
    Always a pre-production sample before mass production;
    Always final Inspection before shipment;

    3.what can you buy from us?
    Drawing Machine,Stranding Machine,Cabling Machine,Extrusion Machine,Bunching Machine

    4. why should you buy from us not from other suppliers?
    1.10 year R&D working experience with over sea service 2.5 big LV/MV cable project over 5 million working experience 3.After service team has 30 country working experience 4. HOOHA team focus on the cable making and use solution supply chain.

    5. what services can we provide?
    Accepted Delivery Terms: FOB,CFR,CIF,EXW,Express Delivery;
    Accepted Payment Currency:USD,EUR,CNY;
    Accepted Payment Type: T/T,L/C,Credit Card,PayPal,Western Union,Cash;
    Language Spoken:English,Chinese

    6.After service
    1. Delivery dates: 45 days
    2. Payment: TT or L/C
    3. Packing: Plastic packing to ensure the goods safety on the transportation.
    4. Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5. After service phone number onli
    Consisting Components:
    No.
    Items
    Features
    1
    Inlet Wire Diameter
    1~4mm
    2
    Finished Wire Diameter
    2~8 mm
    3
    Cross Sectional Area
    1~6 square mm
    4
    Extrusion Speed
    Max 400 m/min
    5
    Extrusion Capacity
    140 kg/h
    6
    Installed Capacity
    55 kva
    7
    Voltage
    380V, can be customized
    8
    Weight
    4000 kg
    9
    Measurement (L*W*H)
    24*3.5*3.5 m
    10
    Workers recommendation
    2 workers

    Note: The above parts can be selected according to the needs of the customer
