    Tin - Plated Or HDMI Copper Wire Twisting Machine With Low Noise

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-300/500
    Certification : ISO,CE
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

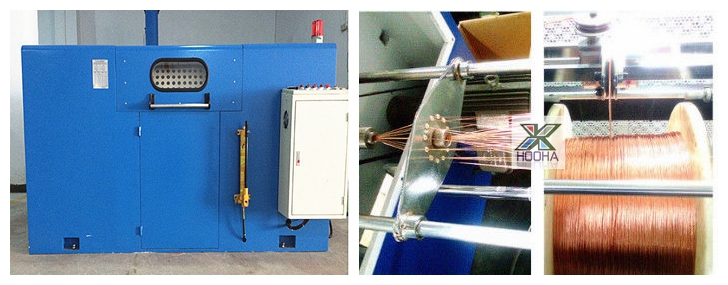

    Tin - Plated Or HDMI Copper Wire Twisting Machine With Low Noise

    Tin - Plated Or HDMI Copper Wire Twisting Machine With Low Noise


    1. Bunching machine application


    Apply to HDMI copper wire bunching , such as tin-plated wire , bare copper wire etc.



    2. Bunching machine technical parameter


    Machine modelHH-300HH-500
    TwistingApply to over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS,CCA etc super fine conductor and cored wire twisting.
    Finished wire range19-32AWG18-30AWG
    Twisting section0.0137-0.45mm²0.05-2.5mm²
    Diameter of single wire0.05-0.16mm0.08-0.41mm
    Twisting distance1.6mm-17.1mm(24)4.22mm-39.64mm(30)
    Gross weightMax30kgMax250kg
    Max high axis rotation speed3000rpm(6000t/min)3000rpm(6000t/min)
    Twisting directionTo left or right
    Flat cablePolish rod traverse unit, pitch and throw adjustable
    Taking-up tension trackTension adjustable, pulled wire no deformation
    Auto-stop machine

    (1) Automatic brake in case of broken wire interon or extenior

    (2) When the counter has to your clesived output length, warnings will be heard and the machine stops.

    Machine using bearingMain bearing made in Sweden, others in Japan.
    power5HP controlled inverter5HP controlled inverter
    Noise levelApprox 75dBApprox 75dB
    Machine Dimension(mm)(L)1900x(W)750x(H)950(L)2690x(W)1060x(H)1230
    Net weightApprox 850kgApprox 2000kg

    3. Spare Parts Brands

    Motor: Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin


    4. Factory & Workshop &Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsUpcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.

    5. After sales service


    1). Delivery dates: 45 days
    2). Payment: TT or L/C
    3). Packing: PE plastic packing, ensuring the goods safety on the transportation.Negotiable according to customer needs
    4). Installation and training service: 2 professional engineers who has over 10 years overseas installation and operation training experience
    5) Phone instant contact service after sales

    6) Service of consumable parts

    7) Follow-up advice on equipment advancement


    6. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment TermsT/T,L/C,Western Union
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    7. Know more about us


    HOOHA GROUP provide a series of solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine and can enjoy such services and save time.


    1.We are the cable equipment manufacturer.

    2.Professional engineer team with long-term research and development in the field of cable equipment.

    3.Provides high frequency capacity manufacturing machines. Keep the machine running all day.

    4.Our machine use the international qualified brand components,like Siemens,Omron,Nsk,lg etc

    5.Technical support and spare parts service.

    6.Rich experience in overseas technical training and operation training.

    7.Professional and responsible team to ensure efficient communication,help to save time and human cost for customers.

    8.Systematic experienced foreign trade team to ensure service quality.

    9.Working hard to meet customers’ needs.


    8. How to come to our company?


    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes


    FAQ
    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
