Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed

    Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers

    Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers
    • Buy cheap Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed from wholesalers

    Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 800
    Certification : CE ISO
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

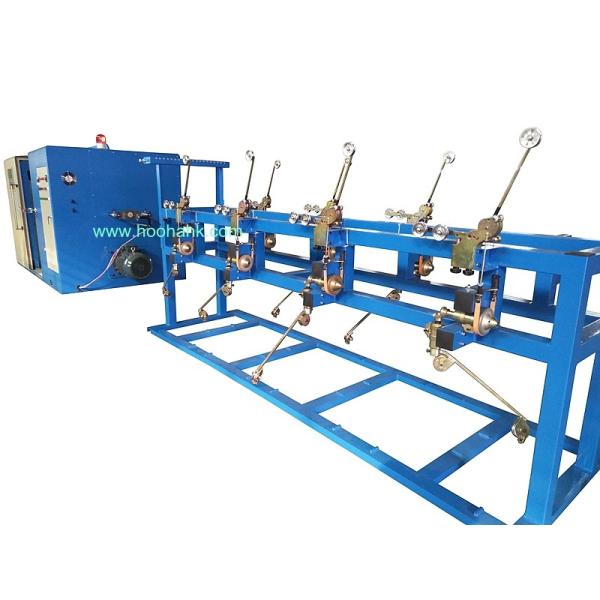

    Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed

    Electronic Wire And Cable Copper Wire Twisting Machine With 1200 RPM Speed


    1. Application of the equipment


    Auto high speed twisting machine apply to copper wire twisting for computer flat cable,earphone cord, electronic wire, power wire, telephone cable,Automotive cable, Network cable etc.



    2. The specifications of 800-1000 bunching machine


    Machine model800
    TwistingApply to over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS,CCA etc supper fine conductor and cored wire twisting.
    Twisting section7-17mm2
    Diameter of single wireΦ0.29-Φ1.0mm
    Twisting distance27.71mm-130.56mm
    Gross weightMAX 900kg
    Max highaxis rotation speed1200RPM(2400t/min)
    Twisting directionTo left or right
    Flat cablePolish rod traverse unit, pitch&throw adjustable
    Taking-up tension trackTension adjustable, pulled wire no deformation
    Auto-stop machine1.Autonomic brake in case of broken wire interon or extenior
    2.When the couner has to your clesived our put length, warning sound will be heard and the machine stops.
    Machine using bearingMain bearing made in Sweden, others in Japan
    Power15HP controlled inverter
    Noise levelApprox 75dB
    Machine Dimension(mm)(L)3673×(W)1550×(H)1650
    Net weightApprox 5000kg

    3. Timely delivery


    Our shipments are very timely and the process is very systematic.



    4. Know about us


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsUpcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.


    5. FAQ1:What is your product brand to support different customer in market ?


    All configurations are first-rate, we don't like to talk about configuration because, as a company that considers quality first, a first-class brand is its basic requirement.

    Motor: Siemens

    Inverter : available to Japan Yaskawa, Siemens, America Emerson

    Temperature Control Meter : Japan RKC, Omron

    PLC : German Siemens , Japan Misubishi

    Auxiliary Relay: Japan Omron

    Ammeter and Voltmeter: Taiwan Risesun

    Indicator, Switch and Button : Taiwan TEND

    Contactor: Taiwan Shihlin ,Schneider

    Relay: Japan Omron

    Line Speed Meter: Taiwan FOTEK/Yangming

    Bearing : NSK, SKF


    6. FAQ2:Do you have any certificates for your products?



    7. FAQ3:Does your team have rich experience?


    Our team has 12 years of export experience, which can greatly help your purchase to proceed smoothly. Our technical team and engineer team can flexibly provide overseas support.


    1).Our Pre-sales team:machine designers ( 5 member) and wire and cable engineers(5) are over 15 years experience

    2).Dedicated service team:who is specialized in wire and cable engineering field (10) , are over 8-10 years experience

    3).After service team:electricity engineers (10), mechanical Engineers(8),software engineer(5) are over 10 years experience

    4).Production self-inspection team:production self-inspection engineers(5) , are over 15 years experience.


    Team structureNumberExperience
    Pre-sale service team

    5 machine designer

    5 wire and cable engineers

    over 15 years
    Dedicated service team10 dedicated serviceover 8-10 years
    After sales team

    10electricity engineers

    8 mechanical Engineers

    5 software engineer

    over 10 years
    Production self-inspection team5 production self-inspection engineersover 15 years

    8. Choose Us


    1.We are the cable equipment manufacturer.

    2.Professional engineer team with long-term research and development in the field of cable equipment.

    3.Provides high frequency capacity manufacturing machines. Keep the machine running all day.

    4.Our machine use the international qualified brand components,like Siemens,Omron,Nsk,lg etc

    5.Technical support and spare parts service.

    6.Rich experience in overseas technical training and operation training.

    7.Professional and responsible team to ensure efficient communication,help to save time and human cost for customers.

    8.Systematic experienced foreign trade team to ensure service quality.

    9.Working hard to meet customers’ needs.



    9. Detailed address


    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes


    Quality Electronic Wire And Cable Copper Wire Twisting Machine With 800-1200 RPM Speed for sale
