    Automotive Wire Cable Extrusion Line 380 Voltage

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-80+35MM
    Certification : CE/ISO
    Price : US$53470-56890/1set
    Payment Terms : L/C,Western Union, T/T
    Supply Ability : 10set/1 month
    Delivery Time : 35 Working Days
    • Product Details
    • Company Profile

    Automotive Wire Cable Extrusion Line 380 Voltage

    Automotive Cable Manufacturing Machine , Car Wire Making Machine 380 Voltage


    Automotive cable : PVC insulated single or multiple copper conductors, sheathed with PVC layers.


    1. Construction : Solid Bare Copper Conductor or copper wire stranded , PVC Insulated ( yellow + green , black , white etc )


    A. bare copper conductor stranded :


    Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .


    B. 80+35 cable extrusion line


    PVC insulated --- 80 +35 cable extrusion machine


    Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation


    2. Consisting Components

    1. double head tension pay off stand
    2. Dancer / straigter

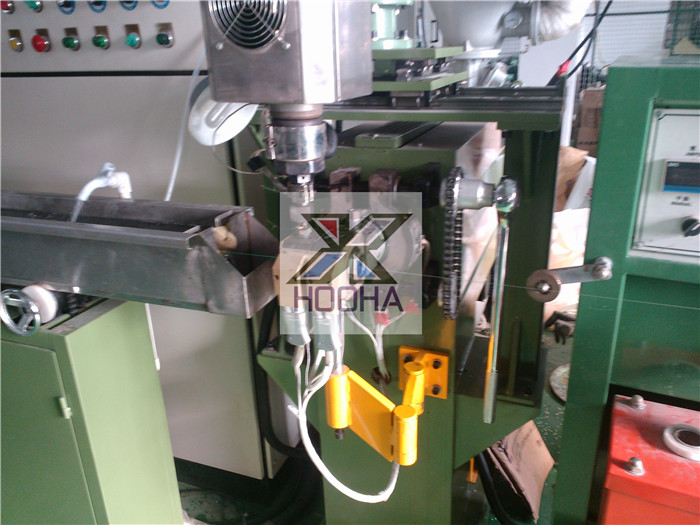

    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13. 15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. PLC Master control cabinet

    17. 35 strip extruder machine

    18. Magnetic Power Tension Pay Off stand


    modelHOOHA -80DescriptionQuantity
    Pay offMagnetic power pay off standPay off stand2
    Pay bobbinPN630-1000Dancer1
    Screw diameterφ80Main extruder1
    Screw L:D26:1loader & dryer1
    capacity (kg/hr)270Crosshead1
    Wire diameterφ3-20Moving trough1
    Cooling deviceU type single or double layerMain cooling trough1
    Length for accumulating200Water wiper1
    Running speedMAX400Diameter controller1
    Taking upDouble axis for pack/bobbinMark printer1
    Taking up bobbinPN630-1000Accumulator1
    Electricity control+PLCCapstan1
    Inverter +PLC(for elected)Spark tester1
    Meter counter1
    Take up2
    Control box1

    HOOHA-extrusion line
    NOModelScrewMain Extruder OutputMain extruder Motor PowerCo-Extruder OutputCo -extruder
    Motor Power
    DiaL/DRotation
    (mm)RatioSpeed
    (r/min)(kg/h)(kw)(kg/h)(kw)
    130302540~10010~127.500
    250502640~10060~701500
    350+502640~10060~701510~123.7
    465652640~10080~1002200
    570+35702640~100110~1303010~123.7
    670+40702640~100110~1303030~4011
    780802640~100180~2003700
    880+40802640~100180~2003730~407.5
    980+50802640~100180~2003760~7011.25
    1090902630~90240~2605500
    1190+50902630~90240~2605530~407.5
    121001002630~903905500
    131201202630~906409000
    141501502630~9086011000
    NOProduct sizeCrossheadHeating Zones of cylinder
    Line Speed
    (mm)(m/min)(kw)
    10.15~0.800.2~1.010~600FixedSingle4/6(U7)4 zone 2.4kw
    20.5~4.00.8~5.010~600FixedSingle4/6(U7)4 z * 2.4kw
    30.5~4.00.8~5.010~600FixedSingle+ stripe4/6(U7)4 z * 2.4kw
    41.0~102.0~1210~600Fixed /manualSingleU7~U144 z * 3.0kw
    51.6~122.0~1510~700Fixed /manualSingle+ stripeU7~U145 z * 4.0kw
    61.6~122.0~1510~700Fixed /manualSingle+ stripe/skinU7~U145 z * 4.0kw
    72.0~203.0~2510~700Fixed /manualSingleManual centering5 z * 3.6kw
    82.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    92.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    105.0~359~3010~700Fixed /manualSingleManual centering5 z * 4.5kw
    115.0~3510~3310~700Fixed /manualSingle+skinManual centering5 z * 4.5kw
    124.0~305.0~5010~220manualSingleManual centering5 z * 4.5kw
    134.0~3010~8010~150manualSingleManual centering5 z * 4.5kw
    144.0~3015~12010~100manualSingleManual centering5 z * 4.5kw

    5. After-sales Service

    1).Delivery dates: 45 days
    2).Payment: TT or L/C
    3).Packing: plastic packing ensure the goods' safety during the transportation.
    4).Electrical engineers(10), mechanical engineers(8), software engineers(5). They all have over 10-year experience


    6. Contact information:

    Phone: +8615015409397
    Web: http//:www.hoohahk.com
    http://hoohaco.en.made-in-china.com/
    Address: 3rd Floor, Building D, Huifu Science Park, No.38, Houhu Road, Humen Town, Dongguan, Guangdong, China


    7. Where are we:

    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes
