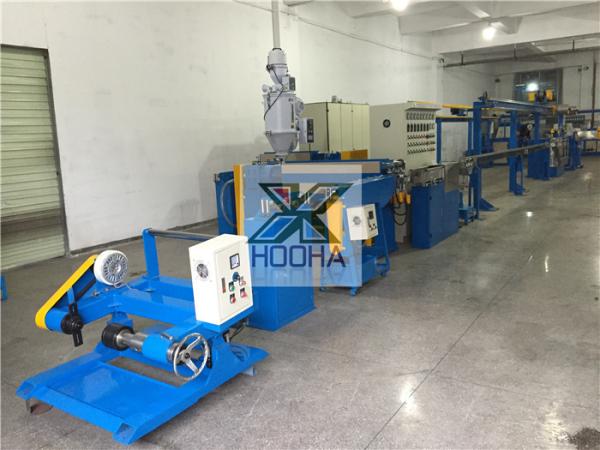

PVC Cable And Wire Manufacturing Machine

    Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers

    Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers
    • Buy cheap PVC Cable And Wire Manufacturing Machine from wholesalers

    PVC Cable And Wire Manufacturing Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-80+35MM
    Certification : CE/ISO
    Price : US$54470-56890/1set
    Payment Terms : T/T, L/C, Western Union
    Supply Ability : 5set/1 month
    Delivery Time : 20 Working Days
    • Product Details
    • Company Profile

    PVC Cable And Wire Manufacturing Machine


    Wire And Cable Machinery Thailand Parallel Cable Manufacturing Machine


    Flat twin-cord wire: twin cores, 3 cores ,PVC insulated single or multiple copper conductors,sheathed with PVC layers.


    1. Construction:Solid Bare Copper Conductor or copper wire stranded,PVC Insulated (yellow + green ,black,white etc)


    A.bare copper conductor stranded:


    Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .


    PVC Cable And Wire Manufacturing Machine


    2. PVC insulated --80 +35 cable extrusion machine


    Application: Suit for PVC/PE plastic extrusion,maily used in fire alam cable,electrical wire,house wire,data cable,network cable etc insulation.


    3. machine devices as reference

    1.Magnetic Power Tension Pay Off stand

    1. double head tension pay off stand
    2. Dancer / straigter
    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer(selectable)
    11. Accumulator
    12. Capstan
    13.15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. Master control cabinet

    17.35 strip extruder machine


    Model:HOOHA-80+35Consisting Components
    Pay off bobbin size:400-630 mmPay off stand1
    Screw size:80mmDancer1
    Motor control:30 kw inverter80mm extruder1
    Screw speed:110 rpmloader & dryer1
    Output capacity:210 kg/hrCrosshead1
    Max. accumulating length200 mMoving trough1
    Finished cable diameter2.0---20.0 mmMain cooling trough1
    Max. line speed:200 m/minWater wiper1
    Diameter controller1
    Mark printer1
    Accumulator1
    Capstan1
    Spark tester1
    Meter counter1
    Take up1
    Control box1

    PVC Cable And Wire Manufacturing Machine


    4. Why Choose Us?


    HOOHA GROUP provide the series solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine. You can enjoy such services and get more money.


    1.We are the cable equipment manufacturer.
    2.Professional engineer,long-term to research and development for to cable equipment .
    3.High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .
    4.Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.
    5.Technical support and spare parts service.
    6.Well-experienced in overseas to support customer with technical,training,operating.
    7.Responsible and Good communication and customer service skills,and save time and human cost for customers.
    8.Complete Foreign Trade Team.
    9.Working efficiently,quickly response to customer needs.


    5. Professional and Strong Manufacture and Sales Team:


    HOOHA R&D TEAM
    NamePositionworking experienceMain researchsuccessful project
    zanyang XieGeneral engineer10 yearsDrawing and designerpower cable machine
    xiaohua HuVice general engineer8 yearsDesignercate5 cable machine
    jingxin Liucable technology engineer15 yearscable making designerteflon cable machine
    weihua Lielectrical engineer7 yearselectrical researchover seas machine install
    kangyou Wuproduce manager6 yearsproduct producecar cable machine
    Jacksells manager5 yearsexport service3 times overseas after service


    6.After Service:


    1).Delivery dates: 45 days
    2).Payment: TT or L/C
    3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) After service phone number online


    Insulating Low - Voltage Building Wire Extrusion Machine / Power Cable Extruding Machine
