    630mm Cantilever Single Twist Machine for the power cable and hook up cable making

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-630/800/1000/1250
    Certification : ISO/CE
    Price : 55000-58000
    Payment Terms : L/C, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

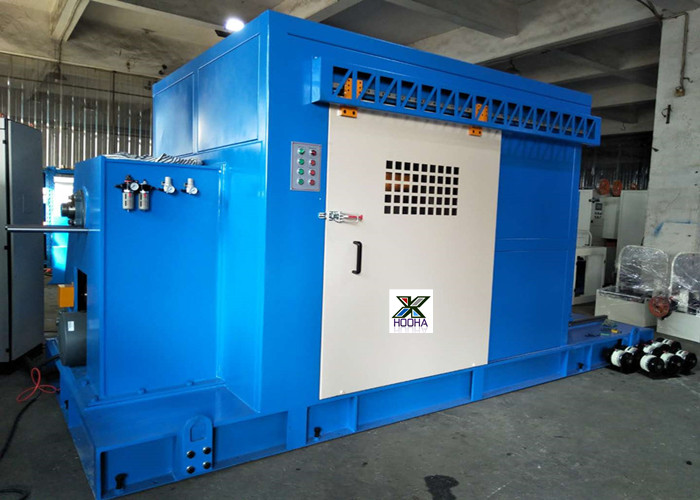

    630mm Cantilever Single Twist Machine for the power cable and hook up cable making


    630mm Cantilever single twisting machine wire bunching machine for power cable

    Application

    The machine mainly apply to multiple cabling of data cable,HDMI wire cable,power cable,

    naked copper wire(fine wire),shielding layer cable,control cable etc.


    Configuration

    Single stranding main unit,electric control system,Centre wrapping machine,side-way giving wrap&wire device.

    Advantages:

    1) More stability, high production efficiency, low noise and easy to operation.

    2) Spring bow can prolong the life.

    3) Take-up tension is controlled by magnetic powder clutch or mechanical type.

    4) The machine can stop automatically,If the wire breaks

    Technical Parameter:


    Cantilever single twisting machine
    machinery modelHH-630HH-800HH-1000HH-1250
    single wire OD of high-speed cantilever single twisting machineΦ0.5-Φ3.0mmΦ0.8-Φ3.0mmΦ1.0-Φ5.0mmΦ1.0-Φ5.0mm
    max strandding OD of high-speed cantilever single twisting machineΦ12mmΦ20mmΦ25mmΦ30mm
    traverse pitch of high-speed cantilever single twisting machine2-12mm3-20mm3-30mm3-35mm
    speed of high-speed cantilever single twisting machinemax800rpmmax600rpmmax500rpmmax450rpm
    twisting pitch of high-speed cantilever single twisting machine20-200mm20-300mm20-400mm30-500mm
    pay-off bobbin size of high-speed cantilever single twisting machineΦ500mmΦ500-Φ630mmΦ500-Φ630mmΦ500-Φ630mm
    take-up bobbin size of high-speed cantilever single twisting machineΦ630mmΦ800mmΦ1000mmΦ1250mm

    Factory & Workshop &Warehouse

    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.


    Cooperating with German spare parts and production software and using best quality materials and intelligent machine,

    HOOHA's products maintain high quality with strongly competitive price.

    Package

    Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

    Plywood frames and Stretch film are used to avoid breakage in transit.

    FAQ

    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment Terms30% T/T in advance for production material, 70% in the period of shipment.
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    Why choose us?

    1. We are the cable equipment manufacturer.

    2. Professional engineer,long-term to research and development for to cable equipment .

    3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

    4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

    5. Technical support and spare parts service.

    6. Well-experienced in overseas to support customer with technical,training,operating.

    7. Responsible and Good communication and customer service skills,and save time and human cost for customers.


    8. Complete Foreign Trade Team.


    9. Working efficiently,quickly response to customer needs.
