    Blue 500mm CE,ISO stepless adjustable Pair Wire Twisting Machine With Vertical Back For CAT5/6/7

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 630
    Certification : CE,ISO
    Price : negotiable
    Payment Terms : T/T,L/C,Western Union
    Supply Ability : 10 sets per month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Blue 500mm CE,ISO stepless adjustable Pair Wire Twisting Machine With Vertical Back For CAT5/6/7

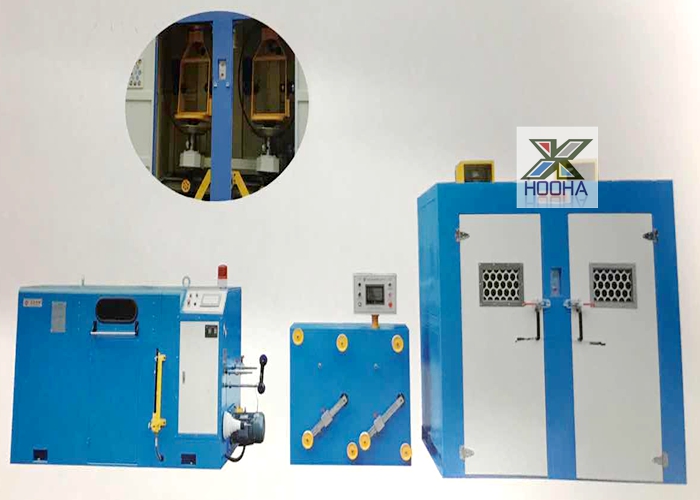

    500mm Pair Twisting Machine With Vertical Back Twisting


    1. Application

    Apply for CAT5,CAT6, CAT7 core wire back twisting & pair twisting.


    2. Technical Data


    Model630
    Application wiresCCP,PEF,PVC,F/S
    Conductor Dia.0.32-1.2mm
    Pay-offMax.750rmp(1500Twist)
    Take-upMax.1500rmp(3000Twist)
    Line speedMax.300M/min
    PitchMin.9.0mm
    Bobbin loading & unloadingElectric elevating system

    ModelVertical box type
    Max rotation speedMAX 1000RPM
    Back Twist ratioMax90% stepless adjustable
    Main motor3.7KW Spin motor,1 set inverter control, initiative wire pay-off motor 0.75KW, 2 set inverter
    Bobbin sizeMaxφ500(OD)x Max320(OD width) or made per customer request
    Bobbin weight requirement<250kg; wire pay-off tension 3-10N
    Pay-off trayΦ500(OD)xφ56(ID)x300(outer width)
    Main motor5HP,4PAC motor
    Tension range200g,stable and adjustable
    Back-twist tension standVertical double head, tension wheel 120mm,3+4 ditch, precision potentiometer
    Pay-off deviceReserve line tension sensor stand, linkage with pay-off motor,ensuring constant tension wire pay-off
    Machine dimensionL x W x H (2100x1300x2000)
    Total weight2200kg

    3. Certificate



    4. Delivery



    5. Factory & Workshop &Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsUpcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,technical support and operation training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.

    6. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment TermsT/T,L/C,Western Union
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    7. Experience team


    1).Our Pre-sales team:machine designers ( 5 member) and wire and cable engineers(5) are over 15 years experience

    2).Dedicated service team: who is specialized in wire and cable engineering field (10) , are over 8-10 years experience

    3).After service team: electricity engineers (10), mechanical Engineers(8),software engineer(5) are over 10 years experience

    4).Production self-inspection team:production self-inspection engineers(5) , are over 15 years experience .



    8. Choose us


    HOOHA GROUP provide a series of solution for the layout design of cable plant, machine matching, shipping and installation. It means you only spend less money on machine and can enjoy such services and save time.


    1.We are the cable equipment manufacturer.

    2.Professional engineer team with long-term research and development in the field of cable equipment.

    3.Provides high frequency capacity manufacturing machines. Keep the machine running all day.

    4.Our machine use the international qualified brand components,like Siemens ,Omron,Nsk,lg etc

    5.Technical support and spare parts service.

    6.Rich experience in overseas technical training and operation training.

    7.Professional and responsible team to ensure efficient communication,help to save time and human cost for customers.

    8.Systematic experienced foreign trade team to ensure service quality.

    9.Working hard to meet customers needs.


    9. Contact us


    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China


    FAQ
    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
