    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-80+35/50mm
    Certification : CE/ISO
    Price : US$53470-56890/1set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 10set/1 month
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    Turn-key Service With Team On Cable Manuacture , Wire And Cable Extrusion Machine

    1. Application :

    Suit for PVC ,PE plastic insulation & sheath , maily used in fire alam cable , electrical wire , house wire , data cable , network cable , building cable etc

    2. machine devices as reference

    1. pay off stand
    2. Dancer / straigter
    3. 80mm extrusion machine
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13.15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. Master control cabinet

    18.35mm strip extruder machine / 50 extrusion machine (co-extrude)

    3. MAIN PARTS BRAND


    1. Motor: Siemens
    2. Inverter: Germany-Siemens or YASKAWA Japan
    3. Electric equipment: Siemens and Omron
    4. Bearing: NSK from Japan
    5. Belt: Mitsubishi

    HOOHA-extrusion line
    NO Model Screw Main Extruder Output Main extruder Motor Power Co-Extruder Output Co -extruder
    Motor Power
    Dia L/D Rotation
    (mm) Ratio Speed
    (r/min) (kg/h) (kw) (kg/h) (kw)
    1 30 30 25 40~100 10~12 7.5 0 0
    2 50 50 26 40~100 60~70 15 0 0
    3 50+ 50 26 40~100 60~70 15 10~12 3.7
    4 65 65 26 40~100 80~100 22 0 0
    5 70+35 70 26 40~100 110~130 30 10~12 3.7
    6 70+40 70 26 40~100 110~130 30 30~40 11
    7 80 80 26 40~100 180~200 37 0 0
    8 80+40 80 26 40~100 180~200 37 30~40 7.5
    9 80+50 80 26 40~100 180~200 37 60~70 11.25
    10 90 90 26 30~90 240~260 55 0 0
    11 90+50 90 26 30~90 240~260 55 30~40 7.5
    12 100 100 26 30~90 390 55 0 0
    13 120 120 26 30~90 640 90 0 0
    14 150 150 26 30~90 860 110 0 0
    NO

    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    HOOHA-extrusion line
    NO Model Pay off Tension Controller Cooling trough Capstan / Caterpillar
    1st Cooling 2nd Cooling
    Bobbin Power wheel Power
    Dia. Dia.
    (mm) (kw) (mm) (kw) (m) (m)
    1 30 300~400 4 300 2.5kg.m 1.5 4m single Capstan
    2 50 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
    3 50+ 400~630 7.5 400 5.0kg.m 1.5 4m*2 double Capstan
    4 65 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
    5 70+35 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
    6 70+40 500~630 7.5 400 5.0kg.m 1.5 6m*2 double Capstan
    7 80 630~800 7.5 500 10kg.m 1.5 6m*2 double Capstan
    8 80+40 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
    9 80+50 630~800 7.5 500 10kg.m 2 6m*2 double Capstan
    10 90 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
    11 90+50 630~1000 7.5 800 10kg.m 2 6m*2 double Capstan/ Caterpillar
    12 100 1250~1600 7.5 800 10kg.m 4 12m single Caterpillar
    13 120 1600~2200 7.5 1250 10kg.m 4 12m single Caterpillar
    14 150 2200~3150 7.5 1600 10kg.m 4 12m single Caterpillar
    NO Capstan / Caterpillar Accumulator Take up Line Length
    Power Power Bobbin Power
    (KW) (kg.f) Dia. (kw)
    (mm) (m)
    1 Capstan 2.2 Φ375 Φ180 0.75 300~400 2.2 12~15m
    2 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
    3 Capstan 4 Φ375 Φ180~300 0.75~1.5 400~630 4 20~28m
    4 Capstan 4 Φ500 Φ300 1.5 630~800 4 20~35m
    5 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
    6 Capstan 4 Φ500 Φ300~420 1.5 630~800 4 20~35m
    7 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
    8 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
    9 Capstan 4 Φ630 Φ420 1.5 630~1000 4 25~38m
    10 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
    11 Capstan/ Caterpillar 5.6 Φ630 Φ420~800 1.5/3.7 800~1250 5.5 28~40m
    12 Caterpillar 5.6 1250~2200 5.5 32~55m
    13 Caterpillar 5.6 1600~2500 5.5 32~55m
    14 Caterpillar 5.6 2200~3150 5.5 32~55m

    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    5. After service


    1).Delivery dates: 45 days
    2).Payment: TT or L/C
    3).Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online

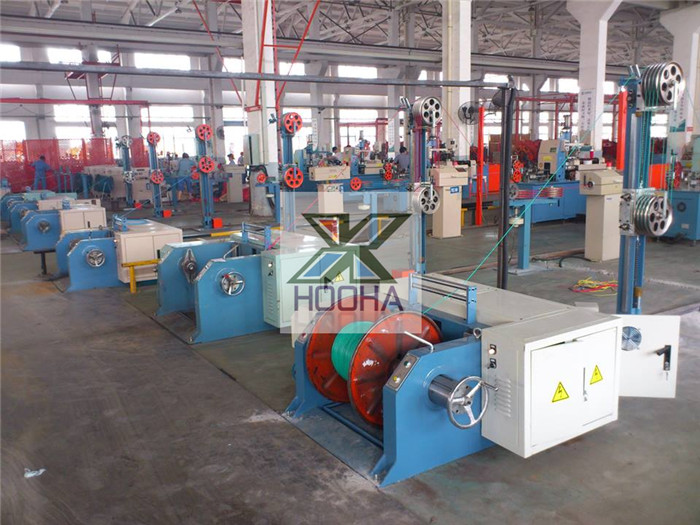

    6. Factory & Workshop &Warehouse

    Company name HOOHA Co.,Ltd
    Established 2003
    Main products upcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added service Include factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
    Factory location Humen Town,Dongguan City,Guangdong province.
    Manufacturing Center 4000 sqm
    Showroom More than 2000 sqm.



    Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.

    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    0.5 mm² Copper Wire Extrusion Machine USB cable making machine pvc pe pp material insulated

    7. Package

    Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

    Plywood frames and Stretch film are used to avoid breakage in transit.
