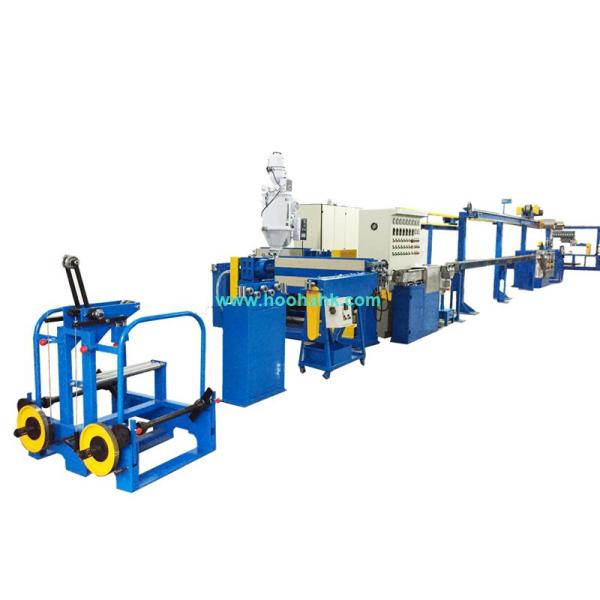

    High Speed PVC Cable Making Machine 380 Voltage Electric Cable Extrusion Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-80+40
    Certification : CE/ISO
    Price : USD 53470-56890/1set
    Payment Terms : T/T, L/C, Western Union, MoneyGram
    Supply Ability : 5 sets/1 month
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    High Speed PVC Cable Making Machine 380 Voltage Electric Cable Extrusion Machine


    High Speed PVC Wire And Cable Machinery Building Cable Making , 380 Voltage


    PVC insulated flexible single copper conductors


    1. Construction : Solid Bare Copper Conductor stranded , PVC Insulated (1,2,3 cores)


    a. Solid Bare Copper Conductor stranded --- 1000-1250mm bow strander machine


    Machine typeφ1250D
    Wire product of standSpecial use twist aluminum and copper round press dowm the conductor
    Cooper wire individualΦ1.5-4.8
    Finish standed wire/max.10 mm φ/max
    Finish standed wire/Max.15mm φ/max
    Section of strand-twisting(Flexible strand)3.5-70mm2(6AWG÷450MCM)
    Section of strand-twisting(Semi-frametwisting1+6)3.5-50mm2(6÷1/0AWG)
    Section of compaction Cu3.5-50mm2(6AWG-300MCM)
    Section of compaction Al3.5-70mm2(6AWG-301MCM)
    Line speed/Max.150mpm/max
    Stand pitch(mm)40-350mm
    608000rpm/max.(1600TPM)
    Load weight/Max.3000KG
    Max.compaction angle13%
    Traction pulley2×φ600mm
    Standing DirectionS,Z Direction
    Main motor(DC/AC/HP)55kw D.C. motor
    Drive of Capstan(DC/AC/HP)30kw D.C. motor
    Drive of take-up unit(DC/AC/HP)7.5kw D.C. motor
    Drive of traverser0.75kw Inverter motor
    Drive of liading&unloading1.5kw Inverter motor
    Power controlDigital type DC control
    Revise systemLine speed synchronous auto control
    Spool bobbin size ODOD:φ1250 mm/Max
    Spooler size OW950×800×80(mm)
    Control systemPLC man-machine interface
    Tension controlCoiling motor indicates tension control
    Lay stranding pitchPLC digitization setting
    Operating directionLeft/ right hand machine
    Traversing width1000mm/Max
    Traversing unitWire diameter setting by digital type
    Take-up typeReel taken between pneumatic pintles
    Reel loading & unloadingLiquefaction automatic positioning
    Brake systemDisc brake
    Bearing lubricative typeOiling regularly
    Air pressure6kg/cm2
    Vogtage380V 50Hz
    Noise level80db
    Machine size(L)6030×(W)2280×(H)2280mm
    Weight12500kg

    B. PVC insulated --- 80 +35 cable extrusion machine


    Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire ,

    data cable , network cable etc insulation


    2. machine devices as reference


    1. Magnetic Power Tension Pay Off stand
    2. Dancer / straigter
    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13.15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. Master control cabinet

    17.35mm strip extruder machine



    Model:HOOHA-80+35Consisting Components
    Pay off bobbin size:400-630 mmPay off stand1
    Screw size:80mmDancer1
    Motor control:30 kw inverter80mm extruder1
    Screw speed:110 rpmloader & dryer1
    Output capacity:250 kg/hrCrosshead1
    Max. accumulating length200 mMoving trough1
    Finished cable diameter2.0---20 mmMain cooling trough1
    Max. line speed:200m/minWater wiper1
    Diameter controller1
    Mark printer1
    Accumulator1
    Capstan1
    Spark tester1
    Meter counter1
    Take up1
    Control box1

    HOOHA technical team in Eypgt


    HOOHA-extrusion line
    NOModelScrewMain Extruder OutputMain extruder Motor PowerCo-Extruder OutputCo -extruder
    Motor Power
    DiaL/DRotation
    (mm)RatioSpeed
    (r/min)(kg/h)(kw)(kg/h)(kw)
    130302540~10010~127.500
    250502640~10060~701500
    350+502640~10060~701510~123.7
    465652640~10080~1002200
    570+35702640~100110~1303010~123.7
    670+40702640~100110~1303030~4011
    780802640~100180~2003700
    880+40802640~100180~2003730~407.5
    980+50802640~100180~2003760~7011.25
    1090902630~90240~2605500
    1190+50902630~90240~2605530~407.5
    121001002630~903905500
    131201202630~906409000
    141501502630~9086011000
    NOProduct sizeCrossheadHeating Zones of cylinder
    Line Speed
    (mm)(m/min)(kw)
    10.15~0.800.2~1.010~600FixedSingle4/6(U7)4 zone 2.4kw
    20.5~4.00.8~5.010~600FixedSingle4/6(U7)4 z * 2.4kw
    30.5~4.00.8~5.010~600FixedSingle+ stripe4/6(U7)4 z * 2.4kw
    41.0~102.0~1210~600Fixed /manualSingleU7~U144 z * 3.0kw
    51.6~122.0~1510~700Fixed /manualSingle+ stripeU7~U145 z * 4.0kw
    61.6~122.0~1510~700Fixed /manualSingle+ stripe/skinU7~U145 z * 4.0kw
    72.0~203.0~2510~700Fixed /manualSingleManual centering5 z * 3.6kw
    82.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    92.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    105.0~359~3010~700Fixed /manualSingleManual centering5 z * 4.5kw
    115.0~3510~3310~700Fixed /manualSingle+skinManual centering5 z * 4.5kw
    124.0~305.0~5010~220manualSingleManual centering5 z * 4.5kw
    134.0~3010~8010~150manualSingleManual centering5 z * 4.5kw
    144.0~3015~12010~100manualSingleManual centering5 z * 4.5kw
