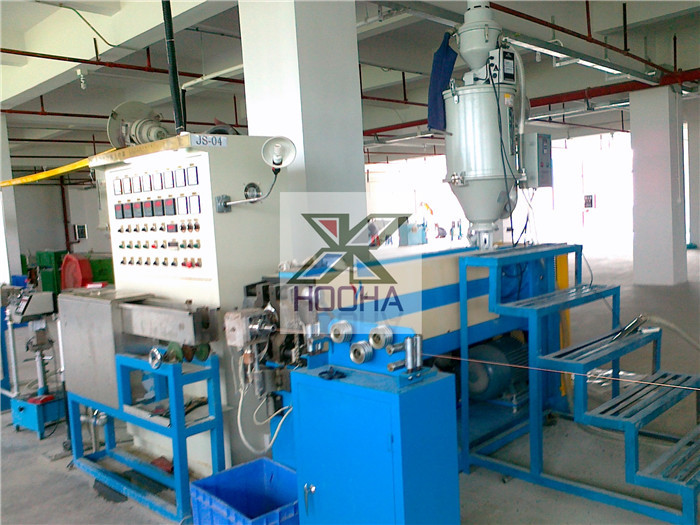

    Cable Making Machine 70+40 Jacket Sheat Extrusion Line PE PVC Electric Cable Extrusion Machine Power Cable Extruder

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-50+30/70+40
    Certification : CE/ISO
    Price : US $46,000-55,000/1 set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 8set/1 month
    Delivery Time : 60 Working Days
    • Product Details
    • Company Profile

    Cable Making Machine 70+40 Jacket Sheat Extrusion Line PE PVC Electric Cable Extrusion Machine Power Cable Extruder

    Wire And Cable Machinery India 70+40 Jacket Sheat Extrusion Line Wire Making Machinery


    Machine technical feature

    1. Concentricity: 93-97% OD tolerance: Solid +/-0.005
    2. Wire specification: Φ1.5mm-12mm
    3.The highest output: 140KG/hr The highest wire speed: 400M/MIN
    4. Body temperature will be controlled within ±1ºC
    5. Extrusion material: PVC, SR-PVC, PE etc.
    6. Screw parameters:L/D ratio:26;1,compression ratio:2.7-3.2,screw material:38CrMoAIA,vacuum heating treatment,surface grinding polishing chromium plating.


    Machine parts


    No.Parts name&Specs.Qty
    1ø500-630mm dual-heads passive pay off with magnetic powder1set
    2ø300mm bumper bracket1set
    3ø70mm main extruder +40/50 horizontal extruder1set
    4PLC SIEMENS Electrical control cabinet1set
    5Centering free of adjustable crosshead1set
    61.5M movable cooling water tank1set
    7Laser diameter tester (Eectrl)1set
    87.5M single layer cooling water tank1set
    910M high precision horizontal wire accumulator1set
    10ø570mm dual-wheels capstan1set
    11High frequency spark tester1set
    12ø500-630mm dual-axis take up1set

    HOOHA-extrusion line
    NOModelScrewMain Extruder OutputMain extruder Motor PowerCo-Extruder OutputCo -extruder
    Motor Power
    DiaL/DRotation
    (mm)RatioSpeed
    (r/min)(kg/h)(kw)(kg/h)(kw)
    130302540~10010~127.500
    250502640~10060~701500
    350+502640~10060~701510~123.7
    465652640~10080~1002200
    570+35702640~100110~1303010~123.7
    670+40702640~100110~1303030~4011
    780802640~100180~2003700
    880+40802640~100180~2003730~407.5
    980+50802640~100180~2003760~7011.25
    1090902630~90240~2605500
    1190+50902630~90240~2605530~407.5
    121001002630~903905500
    131201202630~906409000
    141501502630~9086011000
    NOProduct sizeCrossheadHeating Zones of cylinder
    Line Speed
    (mm)(m/min)(kw)
    10.15~0.800.2~1.010~600FixedSingle4/6(U7)4 zone 2.4kw
    20.5~4.00.8~5.010~600FixedSingle4/6(U7)4 z * 2.4kw
    30.5~4.00.8~5.010~600FixedSingle+ stripe4/6(U7)4 z * 2.4kw
    41.0~102.0~1210~600Fixed /manualSingleU7~U144 z * 3.0kw
    51.6~122.0~1510~700Fixed /manualSingle+ stripeU7~U145 z * 4.0kw
    61.6~122.0~1510~700Fixed /manualSingle+ stripe/skinU7~U145 z * 4.0kw
    72.0~203.0~2510~700Fixed /manualSingleManual centering5 z * 3.6kw
    82.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    92.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    105.0~359~3010~700Fixed /manualSingleManual centering5 z * 4.5kw
    115.0~3510~3310~700Fixed /manualSingle+skinManual centering5 z * 4.5kw
    124.0~305.0~5010~220manualSingleManual centering5 z * 4.5kw
    134.0~3010~8010~150manualSingleManual centering5 z * 4.5kw
    144.0~3015~12010~100manualSingleManual centering5 z * 4.5kw

    Main parts brand
    1. Motor: Siemens
    2. Frequency converter: Yaskawa
    3. Bearing: NSK (Japan brand)
    4. Electrical component: Siemens or Omron
    5. PLC controller: Siemens

    Cable Making Machine 70+40 Jacket Sheat Extrusion Line PE PVC Electric Cable Extrusion Machine Power Cable Extruder


    2. After service


    1). Delivery dates: 45 days
    2). Payment: TT or L/C
    3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online


    3. Factory & Workshop &Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.



    Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.


    Automatic Cable Wire Machine Extrusion Equipment Japan NSK Bearing Siemens Inverter

    Automatic Cable Wire Machine Extrusion Equipment Japan NSK Bearing Siemens Inverter

    4. Package


    Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

    Plywood frames and Stretch film are used to avoid breakage in transit.


    5. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment Terms30% T/T in advance for production material, 70% in the period of shipment.
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    6. Why choose us?


    1. We are the cable equipment manufacturer.

    2. Professional engineer,long-term to research and development for to cable equipment .

    3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

    4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

    5. Technical support and spare parts service.

    6. Well-experienced in overseas to support customer with technical,training,operating.

    7. Responsible and Good communication and customer service skills,and save time and human cost for customers.

    8.Complete Foreign Trade Team.

    9. Working efficiently,quickly response to customer needs.


    7. Professional and Strong Manufacture and Sells Team:


    Team of HOOHA service
    NameeducationPositionMainly responsible for projectSpecializing in project

    Industry working history

    ( year )

    zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15
    xioahua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10
    Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25
    xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15
    lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16
    zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15
    jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7
    xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10
    changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10
    haipin LiUniversityEngineering directorMarketing and salesproject consulting8
    sen YangUniversityEngineering translatorMarketing and salesproject consulting5
