    High Frequency Carbon Steel Pipe Making Machine Speed Welding Type

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-30+20/40+30/50+35mm
    Certification : CE/ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 30 Working Days
    • Product Details
    • Company Profile

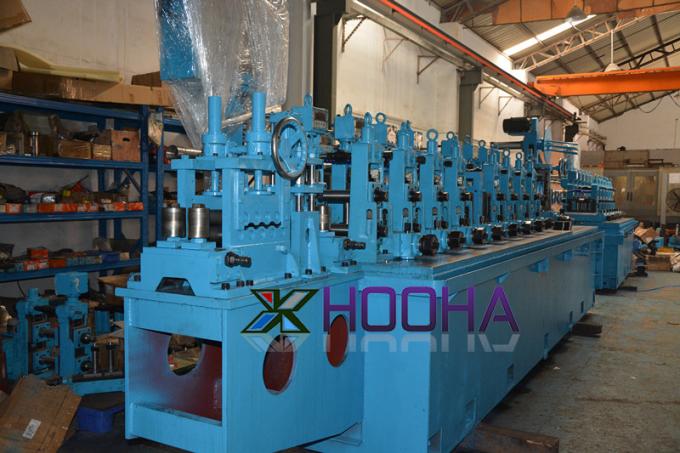

    High Frequency Carbon Steel Pipe Making Machine Speed Welding Type

    High frequency speed welding type carbon steel pipe making machine


    Φ89 Tube mill Line


    High‐frequency welded tube mill line is designed to produce round tube diameter of Φ25.4 –Φ88.9 mm, and wall thickness of 0.8 ‐4.0 mm. This line utilizes roll forming to process steel strip into various shapes.


    Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape.


    The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.


    Specification
    Raw materialCarbon Steel, Cold or Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon.
    Round tube O.D.min 25.4mm, max.88.9mm
    Wall thickness of Roundmin.0.8mm, max.4.0mm
    Square tubemin 20x20mm, max70x70 mm
    Rectangle tubemin 20x30mm, max40x100 mm
    Wall thickness sq & rec.min.0.8mm, max.3.5mm
    H.F. welderSolid state,300 kW
    Line SpeedMax 80 m/min
    Tube length5 – 12 m
    Tube length accuracy±2mm per 6m length

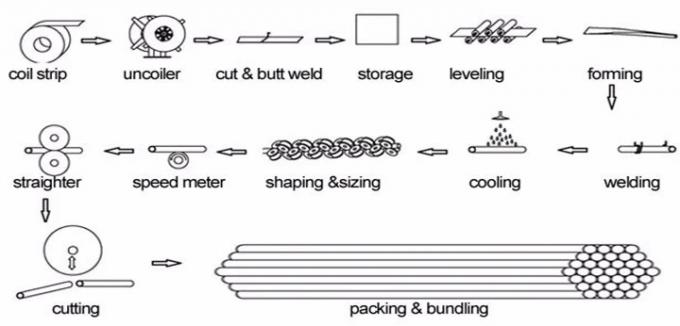

    Coil loading—Uncoiling‐Strip joining—accumulator—Forming,‐H.F. Welding–Bead Remover ‐Cooling—Sizing & straightening‐Measuring roll—Flying saw cutting—Run out conveyor


    Wall Thickness Max.3.5mm Tube Making Machine High Frequency Speed Welding Type


    Wall Thickness Max.3.5mm Tube Making Machine High Frequency Speed Welding Type


    Wall Thickness Max.3.5mm Tube Making Machine High Frequency Speed Welding Type


    Wall Thickness Max.3.5mm Tube Making Machine High Frequency Speed Welding Type


    Wall Thickness Max.3.5mm Tube Making Machine High Frequency Speed Welding Type


    4. Factory & Workshop &Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.



    Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.


    5. Package


    Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

    Plywood frames and Stretch film are used to avoid breakage in transit.


    6. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment Terms30% T/T in advance for production material, 70% in the period of shipment.
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.
