    PLC Control Carbon Steel Pipe Making Machine Tube Making Machine HH32 Tube

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-32MM
    Certification : CE/ISO
    Price : US$78690-85890/1set
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 3set/1 month
    Delivery Time : 50Working Days
    • Product Details
    • Company Profile

    PLC Control Carbon Steel Pipe Making Machine Tube Making Machine HH32 Tube

    Φ32 carbon steel making machineTUBE MILL LINE

    Siemens PLC control Carbon steel tube making machine HH32 TUBE MILL with Round tube O.D. 8-32mm

    High‐frequency welded tube mill line is designed to produce round tube diameter of 8.0 – 32.0mm, and wall thickness of 0.4 ‐1.5mm.


    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    This line utilizes roll forming to process steel strip into various shapes. Using high frequency induction heating, this line is capable of producing section material of various diameters and sizes by squeezing weld seam together into closed shape.


    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    The application of advanced aperture technology, PLC automatic control system and British Eurasia Digital speed‐regulating unit ensure that the production line works reliably and operates and maintains easily.


    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    Coil loading—Uncoiling‐Strip joining—accumulator—Forming,‐HF Welding–Bead Remover ‐Cooling—Sizing & straightening‐Measuring roll—Flying saw cutting—Double dumps Run out conveyor


    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    Specification
    - Raw materialCarbon Steel, Cold or Hot Rolled pre slit strip coils of weld able grade with max. 0.2% carbon.
    - Round tube O.D.Min 8.0mm, max.32.0mm
    - Square tubeMin 8x8mm, max25x25 mm
    - Rectangle tubeMin 8x10mm, max20x30 mm
    - Wall thickness sq & rec.Min.0.4mm, max.1.5mm
    - welderSolid state, 100 kW
    - Line SpeedMax 120 m/min
    - Tube length5 – 12 m
    - Tube length accuracy±2mm per 6m length

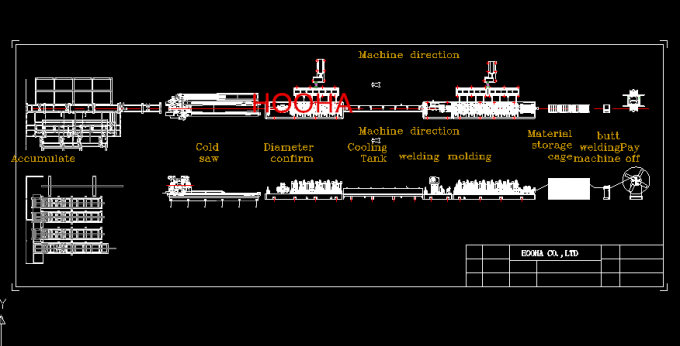

    Carbon steel pipe making laying out

    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    Carbon steel finished products


    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm


    carbon steel pipe making factory, Taiwan team already 30 years manufacture experience.

    Siemens PLC Control Carbon Steel Tube Making Machine HH32 Tube Mill With Round Tube O.D. 8-32mm
