High Speed Cable Stranding Machine

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	500/630
Certification :	ISO,CE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	15 units/month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

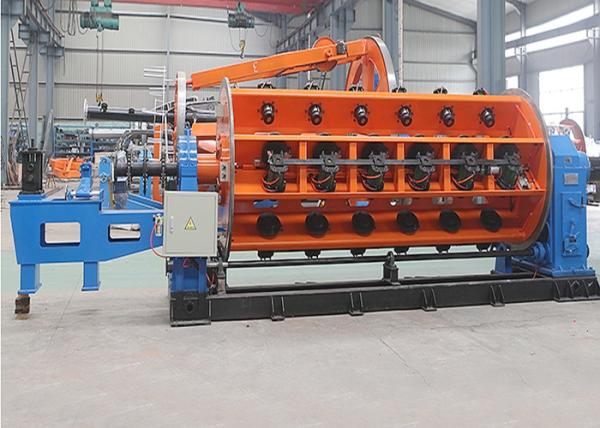

High Speed Cable Stranding Machine

High Speed Rigid Frame Strander Cable Making Machine,12 Year Export

Application

Mainly for copper and aluminum conductor twist on 35 mm2 - 400 mm2

Features

1. All Cages, Pre-Spiraling Heads, Taping Head, Capstan & Takeup are separately driven.

2. All bobbins can be loaded/unloaded simultaneously by automatic loading equipment, thereby reducing loading/unloading time to Max. 30 minutes.

3. Lay is fed in MMI (Operator touch screen) instead of Gearbox. Any lay value in the range can be set & achieved that ensure easy operation.

4. In Power failure situation, the machine comes to a controlled stop by emergency braking system, enabling the bobbin is held by spring pressure with a secondary positive lock. The release of bobbin is by externally plugged pneumatic compressed Air.

5. Constant Bobbin back tension achieved by Electronic pneumatic valve & Single bobbin rotation is electronically sensed for maintaining consistent tension by positive motor control system or passive mechanical equipment.

6. Multiple bobbin size available(400,500,630.etc)

7. Mutiple host with mutiple cage number(6.12.18.24) optional

Main Parameter

Model Number		500	630
Dia. Of Single Wire(mm)	Copper	1.5-5.0
	Aluminum	1.8-5.0
Max.Section Square(mm2)	Cu	500
	Al	630
Max Linear Speed(m/min)		7.32-55.29	7.62-57.93
Pay-off In Cage		PND500
Stranding Pitch(mm)		45-1105	56-1259
Take-up Bobbins(mm)		PN1600-PN2500
Capstan(mm)		2000mm

High Speed Cable Stranding Machine

Q:How is your experience are helpful to customers?

HOOHA is a manufacturing and trading combo for wire and cable industry field , with more than 15 years full experience and a professional team on sales and technical .

At HOOHA our mission is to be a team of highly skilled experts who collaborate to bring the best quality products, custom solutions, and innovative thinking to our customers.

1.Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

2.After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

3.Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

4.Production self-inspection team ( 5 ) , are over 15 years experience .
