Power Cable Conductor Tubular Stranding Machine

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	500/630
Certification :	ISO,CE
Price :	Negotiable
Payment Terms :	T/T, L/C
Supply Ability :	15 units/month
Delivery Time :	30 working days

Add to Cart

Product Details
Company Profile

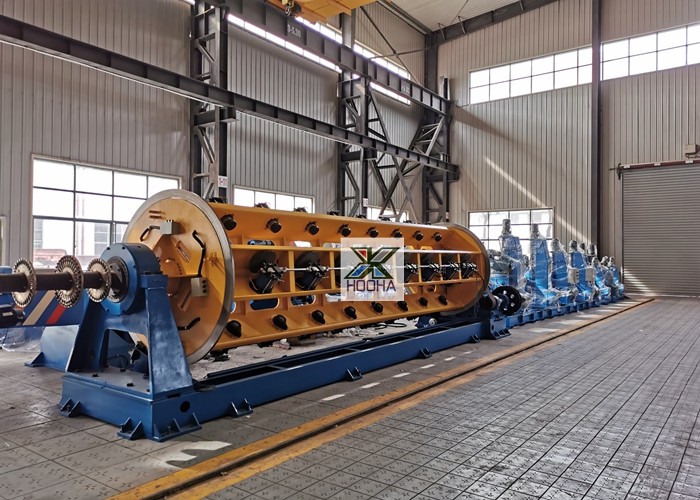

Power Cable Conductor Tubular Stranding Machine

Rigid Frame Stranding Tubular Stranding Machines For Power Cable Conductor Stranding

Application

The machine is used for compact-strand bare aluminum wire, bare copper wire and ACSR to produce power cables.

Rigid stranding machine feature

1. central shaft does not bear the reels .

2. High rigid, high speed and low inertia high speed and low inertia.

3.no abrasion damage when stranding.

4. most advanced emergency stop device.

5. suitable for power cables and high compacted cross linking cables.

6. Siemens PLC control system, operating on touch screen.

Main capability features

1) The reels are arranged quartering around the stranding cages. The central shaft does not bear the reels.

2) High rigid, high performance, high speed and low inertia.

3) Driven by 36-stage variable gear-box, dual hauling and dual active device. Natural wire distribution avoids abrasion damage when stranding.

4) The most advanced emergency stop device, direct controlling every reel. As soon as any wire breaks, the entire machine will automatically stop at once.

5) Ensuring supplement after any wire breaking, especially suitable for power cables and high compacted cross linking cables producing.

6) Siemens PLC control system, operating on touch screen.

Main parameters

Item	Unit	F-JLK630
Stranding-single wire Dia.	mm	Copper	Ø 1.5~4.5
Stranding-single wire Dia.	mm	Aluminum	Ø 1.8~5.0
Max. section area	mm2	Copper	300
Max. section area	mm2	Aluminum	400
Cage rotating speed	r/min	6 Bobbins	75~174
		12 Bobbins	67~156
		18 Bobbins	57~133
		24 Bobbins	48~112
		30 Bobbins	43~100
Hauling line speed	m/min	6~45.6
Stranding pitch	mm	34~1041
Capstan Dia.	mm	Ø 2500*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND630
Takeup bobbin size	mm	PN2000
Machine center height	mm	1000
Main motor power	KW	45

Item	Unit	F-JLK500
Stranding-single wire Dia.	mm	Copper	Ø1.5~4.5
		Aluminum	Ø1.8~5.0
Max. section area	mm2	Copper	500
		Aluminum	630
Cage rotating speed	r/min	63~148
Hauling line speed	m/min	6.87 ~ 52.2
Stranding pitch	mm	47 ~ 825
Capstan Dia.	mm	Ø 2000*2
Central payoff bobbin size	mm	PN1600
Payoff bobbin size in cage	mm	PND500
Takeup bobbin size	mm	PN 2500
Machine center height	mm	1000
Main motor power	KW	55

Power Cable Conductor Tubular Stranding Machine

Q:How is your experience are helpful to customers?

HOOHA is a manufacturing and trading combo for wire and cable industry field , with more than 15 years full experience and a professional team on sales and technical .

At HOOHA our mission is to be a team of highly skilled experts who collaborate to bring the best quality products, custom solutions, and innovative thinking to our customers.

1.Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

2.After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

3.Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

4.Production self-inspection team ( 5 ) , are over 15 years experience .
