Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister

    Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers

    Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers
    • Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers
    • Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers
    • Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers
    • Buy cheap Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister from wholesalers

    Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 630/800/1000/1250
    Certification : CE/ISO
    Price : USD 18500
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Single Cantilever Rope Cantilever Single Twisting Machine PE PVC Insulation Cable Twister

    630-1250mm Single Cantilever Cable Twisting Machine


    1. Application


    Auto high speed twisting machine apply to copper wire twisting for computer flat cable,earphone cord electronic wire,power wire,telephone cable, Automotive cable, lane cable etc.



    2. Specifications


    Machine modelHH 630HH 800HH 1000HH1250
    Single wire OD(mm)Φ0.5-Φ3.0Φ0.8-Φ3.0Φ1.0-Φ5.0Φ1.0-Φ5.0
    Max stranding OD(mm)Φ12Φ20Φ25Φ30
    Traverse pitch(mm)2-123-203-303-35
    SpeedMax 800rpmMax 600rpmMax 500rpmMax 450rpm
    Twisting pitch(mm)20-20020-30020-40030-500
    Pay-off bobbin size(mm)Φ500Φ500-Φ630Φ500-Φ630Φ500-Φ630
    Take-up bobbin size(mm)Φ630Φ800Φ1000Φ1250

    3. Timely delivery



    4. Experienced team


    Team structureNumberExperience
    Pre-sale service team

    5 machine designer

    5 wire and cable engineers

    over 15 years
    Dedicated service team10 dedicated serviceover 8-10 years
    After sales team

    10electricity engineers

    8 mechanical Engineers

    5 software engineer

    over 10 years
    Production self-inspection team5 production self-inspection engineersover 15 years

    5. Our Services


    1). Delivery dates: 60 days
    2). Payment: TT,L/C or Western Union

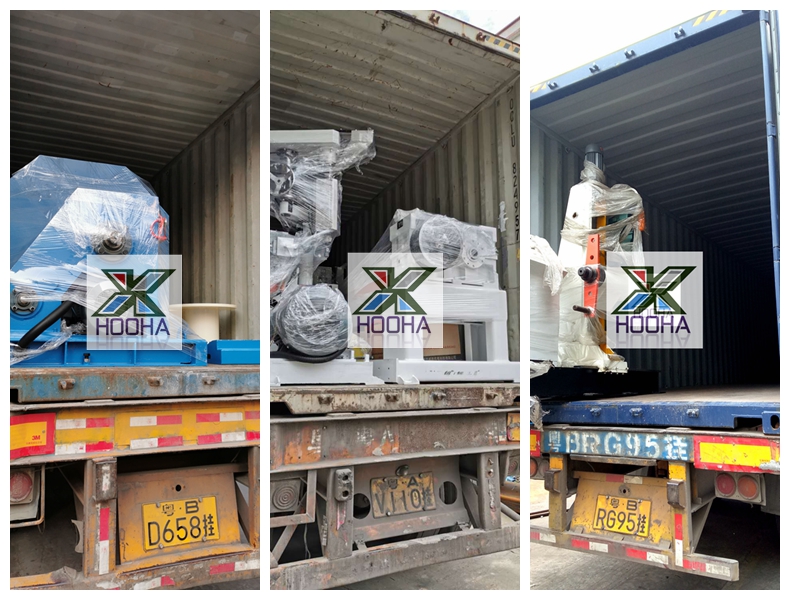

    3). Packing: PE plastic packing, ensuring the goods safety on the transportation.Negotiable according to customer needs
    4). Installation and training service: 2 professional engineers who has over 10 years overseas installation and operation training experience
    5). Phone instant contact service after sales

    6).Service of consumable parts

    7).Follow-up advice on equipment advancement


    Pre-sales training: in order to ensure the correct operation of the machine, we can provide customers with professional operation training if needed, including

    1) correct operation method

    2) correct maintenance method

    3) solve simple problems of our products


    Since the date of shipment, our company's free after-sales service during the warranty period is as follows

    1)1 year for mechanical part

    2)12-15 months for electrical part

    3)Offer lifetime consultation on problems occurred


    As for machine production, we have our strict product checkout process. We will mark the name of each device. Those devices must be signed to guarantee quality before being sent to our customer’s factory,which ensuring the good condition of our products


    6. Why us


    We are a reckoned manufacturer and exporter of Cable, Wire, Plastic & Other Industrial Processing Equipment.

    These products are developed using high grade raw material, sourced from reliable vendors of the market.

    In addition to this, our adroit personnel keep a constant touch with the respectable customers to understand their demands accordingly.

    These personnel maintain a decorum inside the infrastructure, by operating in harmony with each other. Mentioned below are the factors that have enabled us to maintain our unique stature in this domain:


    There are countless reasons to choose from our range of machines across the country.


    We are first and foremost choice of various clients for following reasons:

    Wide distribution network

    Qualitative machinery

    Ethical business dealings

    Vast industrial experience

    Competent team

    Timely delivery

    Easy payment mode



    7. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment TermsT/T,L/C,Western Union
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    8. Where is your company located ?


    Address : 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China. Postcode:523925


    9. How to come to our company?


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes
