    Cantilever wire single twist machinery for electric cable twisting wire and cable bunching insulation wire twist

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 800-1000
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 20 sets/month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

    Cantilever wire single twist machinery for electric cable twisting wire and cable bunching insulation wire twist

    Hot sale cantilever wire single twist machinery for Date cable


    Products Description
    Cantilever wire single twist machinery for electric cable twisting wire and cable bunching insulation wire twist

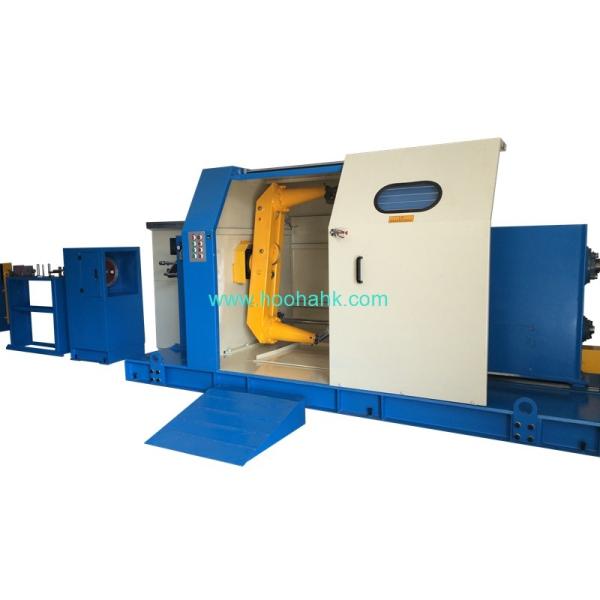

    800 cantilever twisting machine
    Application:The machine mainly apply to multiple cable of data cable,HDMI wire cable,power cable, naked copper wire(fine wire),shielding layer cable, control cable etc.

    Configuration:Single stranding main unit, electric control system,Center wrapping machine, side-way giving wrap & wire device.

    Traits

    Various traits
    * Computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to reduce the wire cable curve.
    * Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.
    * Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking neat,balance tension.
    * Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.
    Cantilever wire single twist machinery for electric cable twisting wire and cable bunching insulation wire twist
    Machine model800
    Single wire OD(mm)Φ0.8-Φ3.0
    Max stranding OD(mm)Φ20
    Traverse pitch(mm)3-20
    SpeedMax 600rpm
    Twisting pitch(mm)20-300
    Pay-off bobbin size(mm)Φ500-Φ630
    Take-up bobbin size(mm)Φ800

    HOOHA main market
    We have provided professional wire and cable solution for more than 100 customers around the world. The main markets are as follow
    1.Southeast Asia(eg:Indonesian customer Pt sinarmonas industries)
    2.South Asia(eg:Indian customer ESSEM Srinisons Systems Pvt Ltd.)
    3.East Asia(eg:Japanese customer KDK Electric wire Co.,Ltd.)
    4.North America(eg:American customer General technologies, Inc.)
    5.South America (eg:Brazilian customer Fibracem Teleinformatica Ltda)
    6.Eastern Europe(eg:Ukrainian customer Deep Networks Group)
    7.Africa(eg:Angola customer W-VOA-fabrica de cabos de angola,lda.)
    8.The Middle East(eg:Dubai customers Power Plus Cable Co., L.L.C.), etc.

    After-sale service

    Hooha team always here for you!

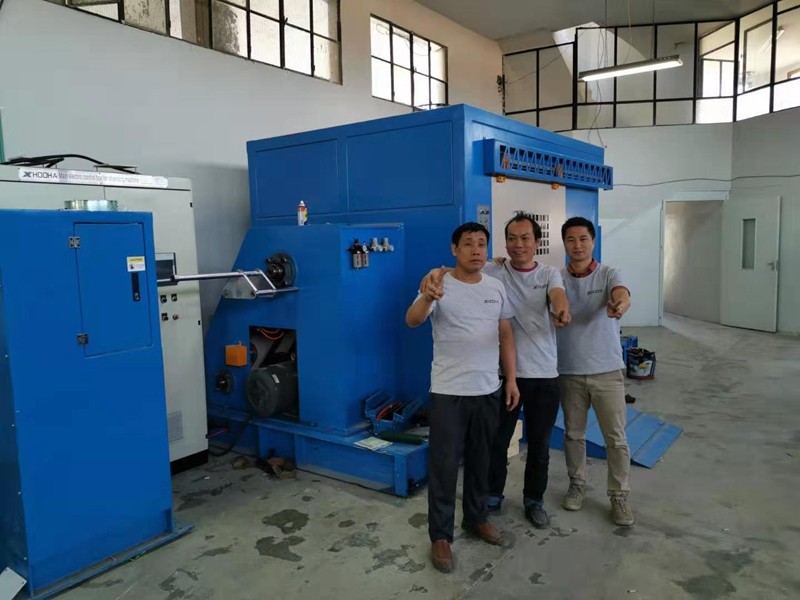

    1.Overseas on-site installation guidance and technical support including previous testing,
    operation instruction and talent training.
    2.Free online consultation service.
    3.Long-time maintenance, reconstruction and upgrade services of the overall equipment.
    4.Extend service support, such as raw material or accessory suggestions etc.
    Since the date of shipment, our company's free after-sales service during the warranty period including:
    1)1 year for mechanical part
    2)12-15 months for electrical part
    3)Offer lifetime consultation on problems occurred

    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
