    High Speed Wire Stranding Machine / Aluminum Wire Tubular Stranding Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 400/500/630
    Certification : CE/ISO
    Price : 50000-60000 USD/unit
    Payment Terms : T/T, L/C
    Supply Ability : 10 unit/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    High Speed Wire Stranding Machine / Aluminum Wire Tubular Stranding Machine

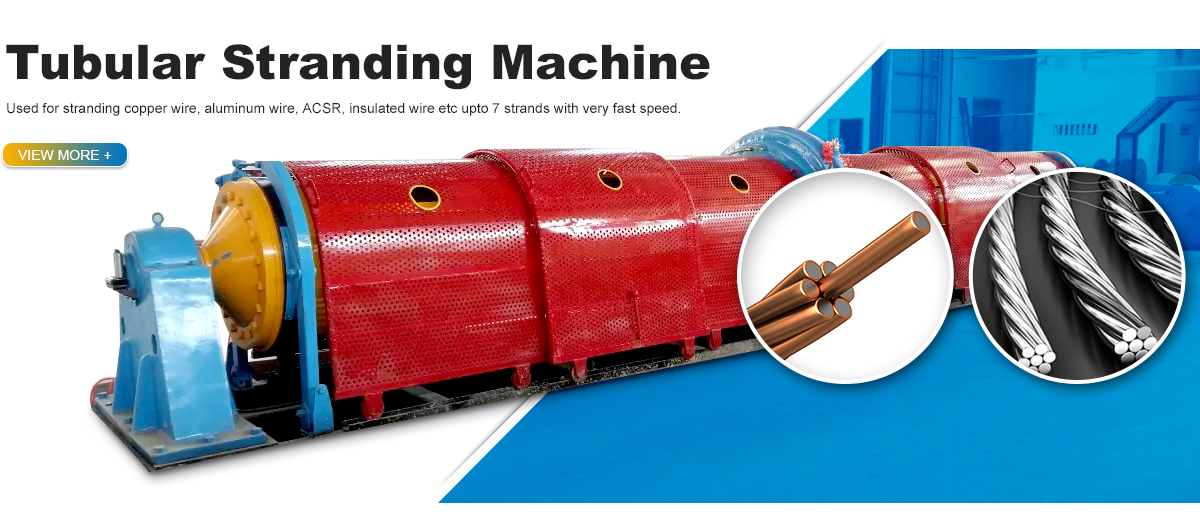

    400mm/500mm/630 mm Tubular Stranding Machine for bare copper Aluminum ACSR Conductor


    1+6 tubular stranding machine usage:


    It is for 7 strands copper wire , aluminum wire , ACSR conductor to round


    Technical parameter


    Copper Wire diameter (mm)1.0-4.5
    Aluminum wire (mm)1.5-3.0
    Main engine speed (r/min)700
    type1+6
    Max OD15 mm
    Strading pitch20-274
    pull wheel diameter1250
    bobbin400/500/630
    take up bobbin800-1250/800-1600
    line speed120 m/min
    SIZE10-35 MM2

    BobbinPN 630×375×127
    Wire passing formInner tube
    Max rotation speed of the tube600 rpm
    Material of the tubeSpecial steel
    Remove stressAfter annealing treatment, the whole stranding body is more non-deforming and will enable a much longer service life.
    Dynamic balanceWhole body dynamic balance, smoothly and low noise.
    3 bearingsBoth ends and the middle stand by bearing, and the big bearing in the middle is forced lubrication, which reduces wear and prolongs life.
    The cages in the tubeEnd shaft type, pneumatic wrench controls clamping or loosening bobbin.
    Pay off tensionFriction belt controls the tension of wire and it is very simple.
    Brake device of the tube bodyPneumatic brake.
    The base of the machineThe base is welded by large I-beam and machined the top surface and the bottom surface by large planer. The whole tube body is installed on the base. The machine is easy to be installed.
    Guide wheel of the wireThey are made by bearing steel, which is very wearable.

    What is your company export experience ? How do you service a new starter who are going to the wire and cable field ?


    A : HOOHA focus and has been over 10 years exported on the front of the supply chain of the wire and cable making machine , wire and cable tester machine . A-Z service to support . business relationship with customers and partners are decade.


    At HOOHA our mission is to be a team of highly skilled experts who collaborate to bring the best quality products, custom solutions, and innovative thinking to our customers.


    1. Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

    2. After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

    3. Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

    4. Production self-inspection team ( 5 ) , are over 15 years experience .
