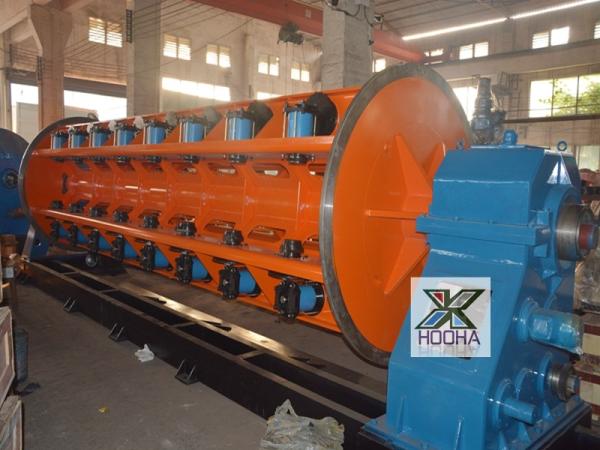

    Electric Rigid Frame Copper Wire,Aluminum Wire Stranding Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 400/500/630
    Certification : CE/ISO
    Price : Negotiable
    Payment Terms : T/T, L/C
    Supply Ability : 5 units/month
    Delivery Time : 45 working days
    • Product Details
    • Company Profile

    Electric Rigid Frame Copper Wire,Aluminum Wire Stranding Machine

    High Speed Rigid Frame Stranding Machine For 35mm²- 400mm² Copper Wire,Aluminum Wire


    Rigid stranding machine application


    Mainly used for copper and aluminum conductor cables twisted wire system fan pressed,

    pressed and drawn round conductor segment conductor strands twisted pre-pressed


    Technical Parameter


    Machine TypeHH - 500HH - 630
    Single wire dia.

    1.5-5.09(copper)

    1.8-5.0(AL)

    1.5-5.0(copper)

    1.8-5.0(AL)

    Max O.D4545
    Stranded pitch640-68364-946
    1240-68364-946
    1846-78046-780
    2452-88883-1226
    Speed686-15069-162
    1286-14069-162
    1875-13561-143
    2466-145553-125
    Speed5959
    BobbinPND500PND630
    Pay off bobbinPN1600-PN2500PN1600-PN2500
    Take up bobbinPN2500PN2500-PN3150
    Main motor75KW132KW

    After-sales Service


    1. Delivery date: 90 days

    2. Payment: TT or L/C

    3. Packing: plastic packing, ensuring the goods' safety during the transportation.

    4. Install and training service: 2 professional engineers who has over 10 years overseas installation

    and cable manufacturing training experience.


    Electric Rigid Frame Copper Wire,Aluminum Wire Stranding Machine


    Can you supply us the layout of the rigid stranding machine ?


    A. please check the layout as refer , which it has 1+6+12 / 1+6+12+18 / 1+6+12+18+24 type



    Do you have any experience team to supply training , cable manufacture , techlogy share ?

    A: Yes , we have the service to do the fully supporting to customer


    1. Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;

    2. After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;

    3. Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;

    4. Production self-inspection team ( 5 ) , are over 15 years experience
