    High Efficiency Rope Twisting Machine Cantilever Bunching Machine Stable Computer Control Pitch

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HOOHA-630/800
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

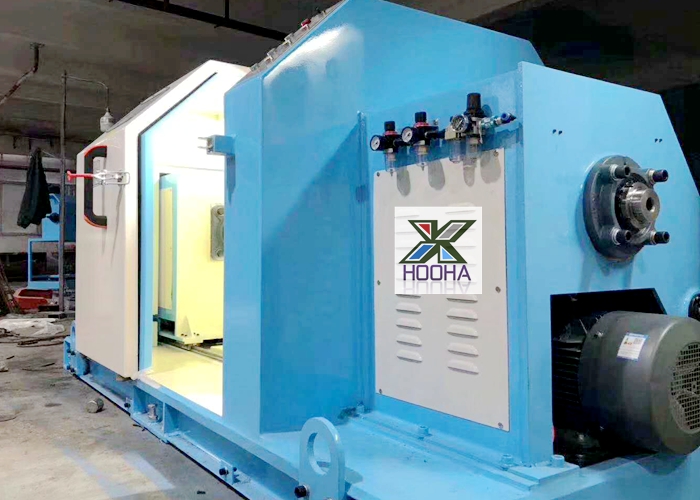

    High Efficiency Rope Twisting Machine Cantilever Bunching Machine Stable Computer Control Pitch

    High efficiency cantilever bunching machine,with stable computer control pitch


    1. Application


    The machine manly apply to multiple cable of data cable,HDMI wire cable,power cable, naked copper wire(fine wire),

    shielding layer cable, control cable etc.


    2. Configuration


    Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.



    3. Traits


    1.computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to

    reduce the wire cable curve.

    2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.

    3.Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking neat,

    balance tension.

    4.Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.

    5.Tray loading and discharging easy with low labour consumption


    4. Specifications


    Machine modelHH 630HH 800
    Single wire OD(mm)Φ0.5-Φ3.0Φ0.8-Φ3.0
    Max stranding OD(mm)Φ12Φ20
    Traverse pitch(mm)2-123-20
    SpeedMax 800rpmMax 600rpm
    Twisting pitch(mm)20-20020-300
    Pay-off bobbin size(mm)Φ500Φ500-Φ630
    Take-up bobbin size(mm)Φ630Φ800


    5. Technical Support


    We have a professional technical team that can provide overseas installation training and technical operation training for our customers


    NameeducationPositionMainly responsible for projectSpecializing in projectIndustry working history
    zanyang XiecollegeGeneral EngineerThe total project design and planningpower cable machine15 years
    xioahua HucollegeVis general engineerThe total project design and planningnet cable,data cable machine10 years
    Chnaghong ChengcollegeEngineerDrawings and after-sales serviceTeflon,Optical fiber cable machine25 years
    xiuwu ChencollegeGeneral EngineerThe total project design and planningcopper drawing machine15 years
    lixin YuancollegeEngineerThe project design and planningcoppwer wire making technical16 years
    zhenghai Qiucollegecable engineerAfter servicecable making and cable factory management servie15 years
    jinxin LiucollegeMarketing engineerAfter serviceelectrical engineer7 years
    xingguo TangHigh schoolElectrical engineerAfter serviceelectrical engineer10 years
    changqiang LiHigh schoolMaintain engineerAfter servicemachina maintain and install service10 years
    haipin LiUniversityEngineering directorMarketing and salesproject consulting8 years
    sen YangUniversityEngineering translatorMarketing and salesproject consulting5 years


    6. Certification



    7. What do our company focus on?


    1. Quality, our engineers work with service colleagues.We are committed to enabling engineers to learn more about customer feedback from the service team.

    2. Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries

    3. Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.

    4. Supply more environmentally friendly products.

    5. Give back to the community and help more people.


    8.How is our company's service?


    1. HOOHA GROUP provide a series of solution based on the real need of our customers in the field of wire and cable making machine. We offer the layout design of cable plant, machine shipping and installation, and subsequent equipment operation training and so on. It means you only spend less money on machine and can enjoy such services and save time.We are committed to providing you with cost-effective products to reduce your concerns.


    2. Throughout the entire trade operation process, we strictly control every handover step with highly efficiency in order to guarantee the best products being sent to our customers within the required time.


    3. Our corporate culture is growing together with customers. Helping customers achieve greater development through cooperation with us is what we have been doing.


    9. Detailed Address


    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China


    10. How to come to HOOHA?


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes


    FAQ
    1. Who are we?
    We are based in Guangdong, China, start from 2017
    * HOOHA products sell to
    Africa(17.00%)
    Mid East(17.00%)
    Southeast Asia(16.00%)
    Eastern Asia(13.00%)
    South Asia(10.00%)
    South America(8.00%)
    Eastern Europe(4.00%)
    North America(3.00%)
    Northern Europe(3.00%)
    Southern Europe(3.00%)
    Oceania(2.00%)
    Western Europe(2.00%)
    Central America(2.00%)
    2.What can you buy from us?
    Drawing Machine
    Cabling Machine
    Bunching Machine
    Stranding Machine
    Extrusion Machine
    Wrapping and Packing machine
    3. How can we guarantee quality?
    Always a pre-production sample before mass production
    Always final Inspection before shipment
    4. What services can we provide?
    Accepted Delivery Terms:
    FCA,FOB,CFR,CIF,EXW,Express Delivery
    Accepted Payment Currency:
    USD,EUR,CNY
    Accepted Payment Type:
    T/T,L/C,Credit Card,PayPal,Western Union,Cash
    Language Spoken:
    English,Chinese,Cantonese
    5. What are our advantages over other suppliers?
    10 year R&D working experience with over sea service
    5 big LV/MV cable project over 5 million working experience
    After service team has 30 country working experience
    HOOHA team focus on the cable making and use solution supply chain.
