    1250 Cantilever Cable Twisting Machine PE PVC Insualtion Cable Twisting Stranding Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 1250
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 60 working days
    • Product Details
    • Company Profile

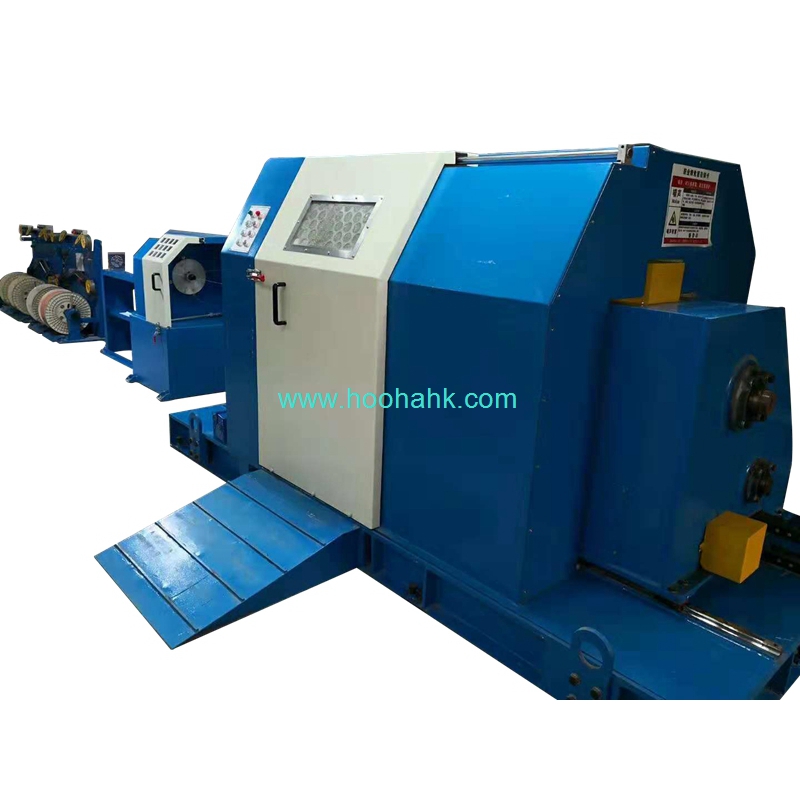

    1250 Cantilever Cable Twisting Machine PE PVC Insualtion Cable Twisting Stranding Machine

    1250 Cantilever Cable Twist Machine


    1. Application


    The machine manly apply to multiple cable of data cable,HDMI wire cable,,power cable, naked copper wire(fine wire),

    shielding layer cable, control cable etc.

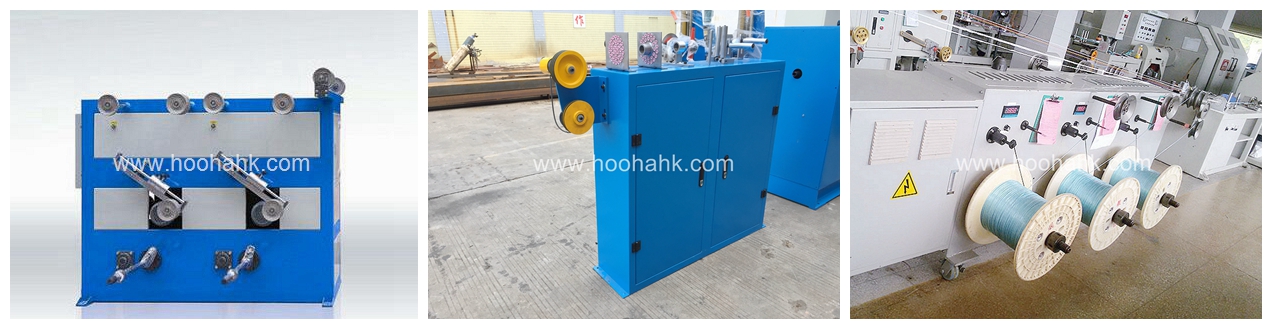

    2. Configuration


    Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.


    3. Cable twist machine traits


    1.computer control pitch,non-tension traction wheel,motion wiring cable passing path,increase the traction wheel diameter to

    reduce the wire cable curve.

    2.Stranding main unit cantilever arm structure,revolving body with low rotating inertia,high rpm and stable speed.

    3.Coiling box move trays left and right along the slide way,pitch stable with stepless adjusting,stranding wire cable ranking neat,

    balance tension.

    4.Compared with traditional single stranding machine,it has the advantage of avoiding screw rod breaking at high speed.

    5.Tray loading and discharging easy with low labour consumption.


    Machine model

    1250

    Single wire OD

    Φ1.0-Φ5.0mm

    Max stranding OD

    Φ30mm

    Traverse pitch

    3-35mm

    Speed

    Max450rpm

    Twisting pitch

    30-500mm

    Pay-off bobbin size

    Φ500-Φ630mm

    Take-up bobbin size

    Φ1250mm



    4. Spare Parts Brands


    Motor: Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin


    5. Certificate

    6. Delivery and after-sales service


    1). Delivery dates: 35 days
    2). Payment: TT,L/C or Western Union
    3). Packing: PE plastic packing, ensuring the goods safety on the transportation.Negotiable according to customer needs
    4). Installation and training service: 2 professional engineers who has over 10 years overseas installation and operation training experience
    5). Phone instant contact service after sales

    6).Service of consumable parts

    7). Follow-up advice on equipment advancement



    7. Advantage


    We have been exporting at the front end of the supply chain of wire and cable manufacturing machines, wire and cable tester equipment for almost 20 years. We have worked with more than 100 customers and spent more than five years supporting them to make their business run smoothly, and they use our products to achieve their business goals.

    We not only provide customers with the most cost-effective products, but also provide a series of services, including after-sales technical support and operation guidance, and provide solutions to problems happened in the follow production process. We always stand on the side of customers to meet the real needs of them, which is what we have been insisting on.

    Become a team of experts in the wire and cable industry, we are able to bring more benefit to our customers, and offer the most suitable solutions for them. We are always seeking to help our customers save costs and time and help them reduce worries.


    8. Team structure


    Team structure

    Number

    Experience

    Pre-sale service team

    5 machine designer

    5 wire and cable engineers

    over 15 years

    Dedicated service team

    10 dedicated service

    over 8-10 years

    After sales team

    10electricity engineers

    8 mechanical Engineers

    5 software engineer

    over 10 years

    Production self-inspection team

    5 production self-inspection engineers

    over 15 years



    9. How to come to our company?

    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes

    10. Contact us

    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China
