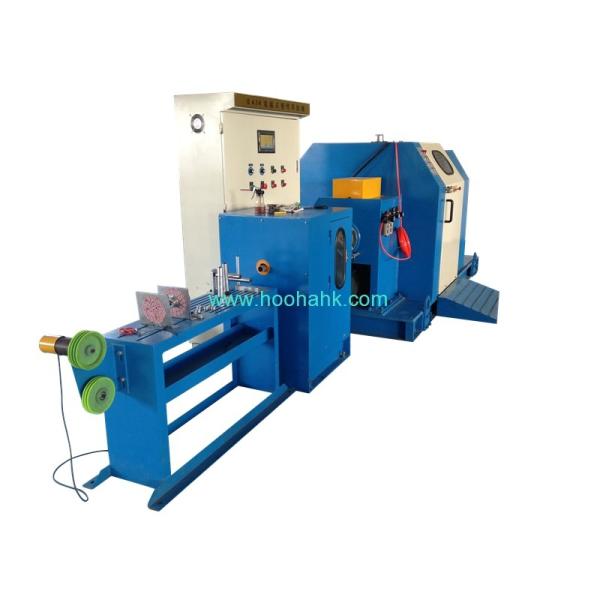

    Cantilever Single Wire Bunching Machine Quick Speed 1250mm

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HOOHA-1250
    Certification : CE ISO
    Price : negotiable
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 20 sets/month
    Delivery Time : 35 working days
    • Product Details
    • Company Profile

    Cantilever Single Wire Bunching Machine Quick Speed 1250mm

    Quick speed 1250mm Cantilever Single Wire Twisting Machine,high twisting quality


    1. Application


    The machine manly apply to multiple cable of data cable,HDMI wire cable,,power cable, naked copper wire(fine wire),

    shielding layer cable, control cable etc.


    2. Configuration


    Singles stranding main unit, electric control system,Centre wrapping machine, side-way giving wrap & wire device.


    3. Cable twist machine features


    The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.


    Machine model1250
    Single wire ODΦ1.0-Φ5.0mm
    Max stranding ODΦ30mm
    Traverse pitch3-35mm
    SpeedMax450rpm
    Twisting pitch30-500mm
    Pay-off bobbin sizeΦ500-Φ630mm
    Take-up bobbin sizeΦ1250mm


    4. Spare Parts Brands


    Motor: Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin


    5. Package and delivery


    1). Delivery dates: 35 days
    2). Payment: TT,L/C or Western Union
    3). Packing: PE plastic packing, ensuring the goods safety on the transportation.Negotiable according to customer needs



    6. What do our company focus on?


    1. Quality, our engineers work with service colleagues.We are committed to enabling engineers to learn more about customer feedback from the service team.

    2. Customers' comfortable purchasing experience.We pay attention to the actual needs of customers, and hope to bring customers high-efficiency products and intimate service, our services cover pre-sales and after-sales, committed to let customers save time and cost, and reduce worries

    3.Customers' success.We not only focus on the sales of products, but also pay attention to the development of our customers. We pursue growing together with customers by providing long-term support and suggestions to help them achieve success.

    4.Supply more environmentally friendly products.

    5.Give back to the community and help more people.


    7. What can HOOHA do for our customers?


    (1) HOOHA GROUP provide a series of solution based on the real need of our customers in the field of wire and cable making machine. We offer the layout design of cable plant, machine shipping and installation, and subsequent equipment operation training and so on. It means you only spend less money on machine and can enjoy such services and save time.We are committed to providing you with cost-effective products to reduce your concerns.


    (2) Throughout the entire trade operation process, we strictly control every handover step with highly efficiency in order to guarantee the best products being sent to our customers within the required time.


    (3) Our corporate culture is growing together with customers. Helping customers achieve greater development through cooperation with us is what we have been doing.



    8. How to come to our company?


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes


    9. Contact us


    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China
