    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : 80+35/80+50
    Certification : ISO,CE
    Price : 6000 -80000 / unit
    Payment Terms : T/T, L/C
    Supply Ability : 20 units/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

    Algeria 1 to 4 Cores Power Cable Making Machine


    Its process has

    1.strands copper wire

    2.Insulation

    3. 4 cores twist

    4. Sheath

    5.Packing

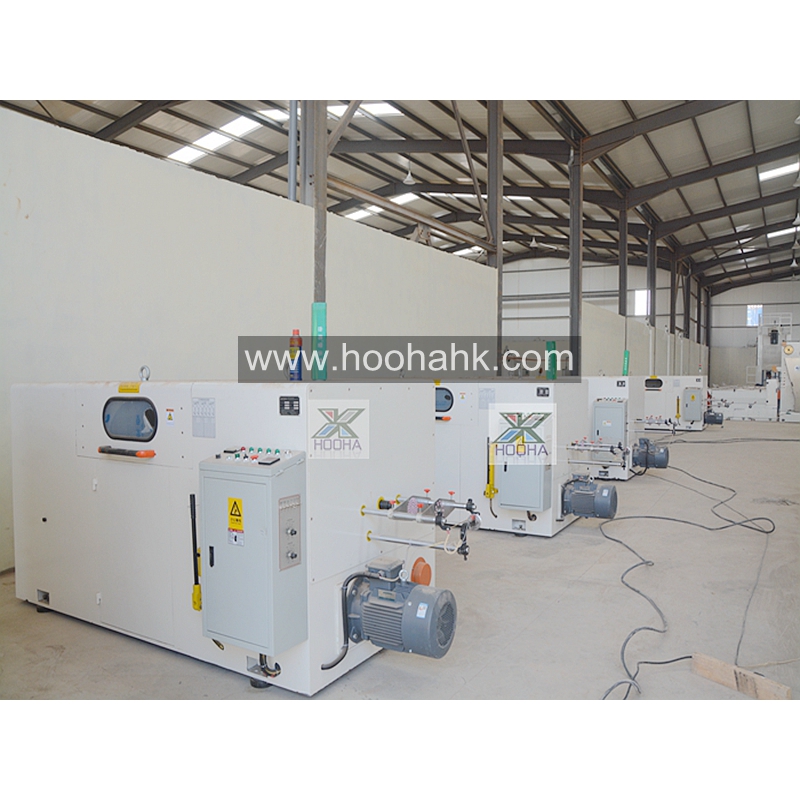

    A. bare copper conductor stranded


    Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .



    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

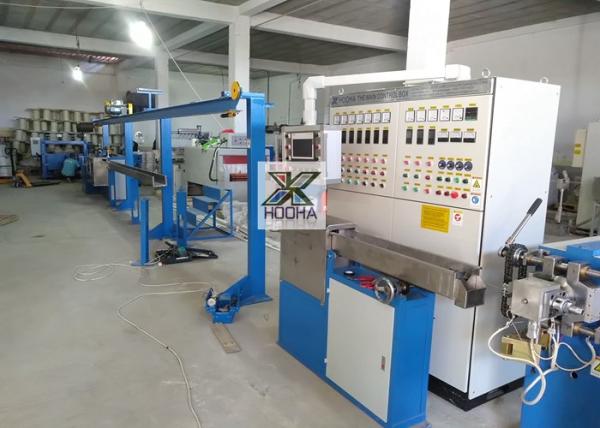

    2.PVC insulated --- 80 +40 /80+50 cable extrusion machine


    Application

    Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation


    machine devices as reference

    1. Magnetic Power Tension Pay Off stand

    1. double head tension pay off stand
    2. Dancer / straigter
    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13. 15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. Master control cabinet

    17. 40 strip extruder machine/ 50 horizontal extrusion machine


    Extrusion machine parameters


    Model:HOOHA-80+40/50Consisting Components
    Pay off bobbin size:400-630 mmPay off stand1-4
    Screw size:80mmDancer1
    Motor control:30 kw inverter80mm extruder1
    Screw speed:110 rpmloader & dryer1
    Output capacity:210 kg/hrCrosshead1
    Max. accumulating length200 mMoving trough1
    Finished cable diameter2.0---20.0 mmMain cooling trough1
    Max. line speed:200 m/minWater wiper1
    Diameter controller1
    Mark printer1
    Accumulator1
    Capstan1
    Spark tester1
    Meter counter1
    Take up1
    Control box1

    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

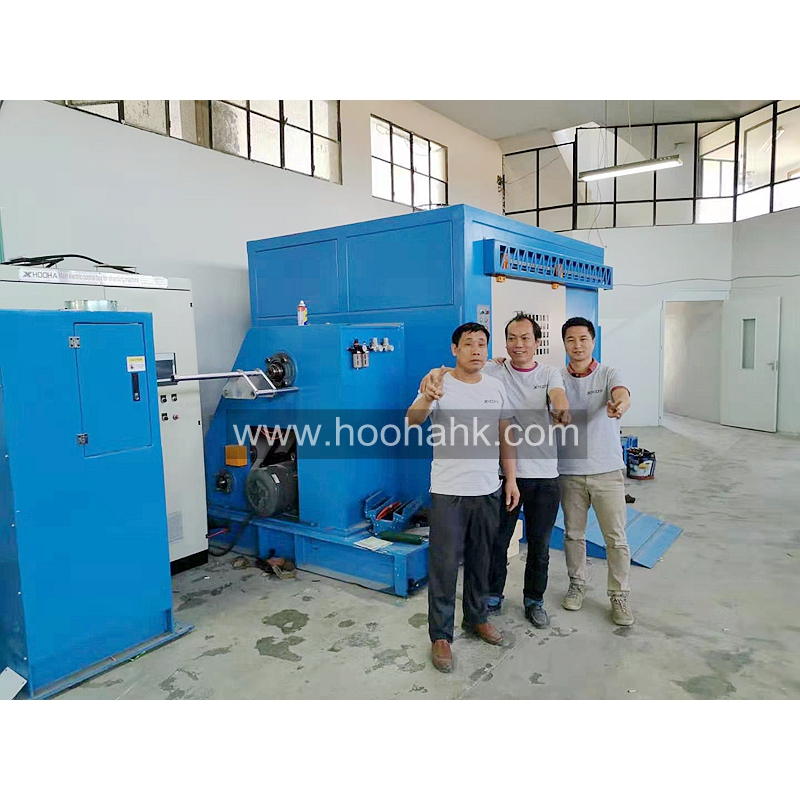

    3. multi cores cable twist


    1000-1250mm Cantilever Single Multi Cable Wire Twisting Machine for copper cable wire twisting bunching machine


    1.Features
    The machine uses the cantilever cable twister, with the take-up tension = pay-off tension + wire resistance, free of traction; with the motor + ball screw to drive the take-up drum to make wire arrangement; the gap is controlled by the computer. The equipment is specially featured in quick speed, less take-up tension, stable twist gap and high twisting quality.


    4. PVC sheath


    Suit for PVC ,PE plastic insulation & sheath

    1. maily used in fire alam cable

    2. electrical wire

    3. house wire

    4. data cable

    5. network cable

    6. building cable


    1-4 Cores Cable Manufacturing Equipment / Seven Strand Jacketed Wire Maker Machine

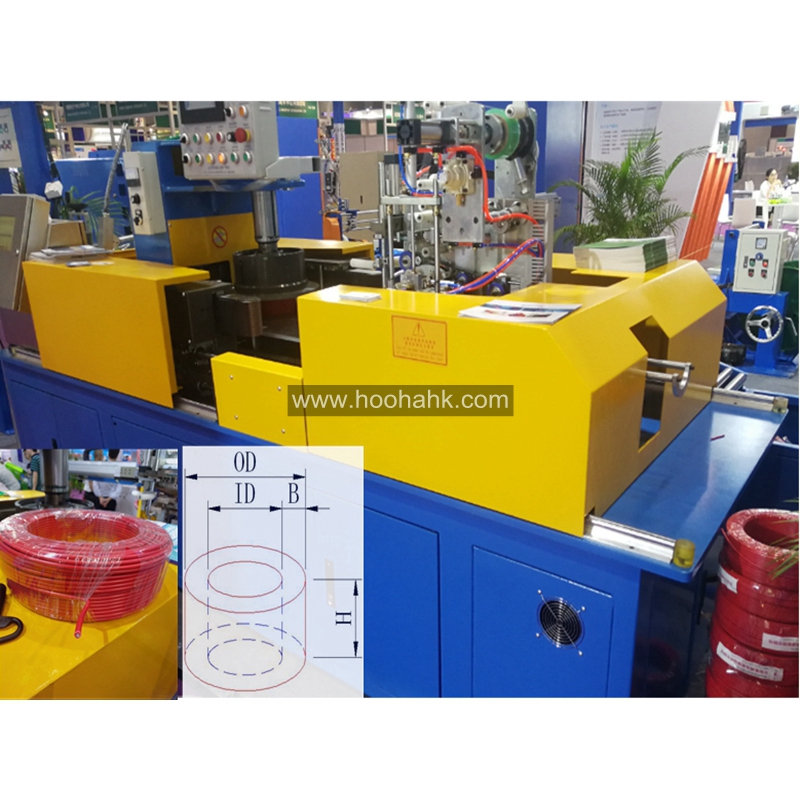

    5. Automatic packing and wrapping


    Packing and wrapping all in one , work with extrusion line


    Specifications

    1. Direct contact the extrusion machine

    2. 200m per coil and coiling speed 4 times more than manual

    3. Automatic coiling and packing by label

    4. Packing label capacity 7 times more than manual

    5. Servo motor flat cable system, perfect packing

    6. Touch screen man-machine interface operation side dish

    7. 99 types of the coiling storage and can change as you like

    8. Automatic warning system, easy control of the operation



    Our service



    1.Who are we?
    Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.

    2.How can we guarantee quality?
    1.Online inspect facotry,production,shipment,and aftersales services.
    2.pre-production sample before mass production.
    3.Highstandards and strict requirements, key accessories of cable equipment only use imported parts.
    4.Mechnical parts gurantee 12months, elcctrical parts 12 months.
    5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.

    3.What can you buy from us?
    1.material for wire and cable
    2.turkey project for wire and cable
    3.extrusion line/bunching/twisting
    machine for wire and cable
    4.accessorries for cable equipments

    4.How long is your delivery time?
    1.Generally, 3-7 days for goods in stock
    2.30 days for goods after realsing order.
    3.project will take 60-90 days

    5. Will the price be cheaper if the order is placed in bulk?
    Yes,Of course,it will make 10%-12% discount

    6.What services can we provide?
    1.Plant solution and machine design.
    2.technical support at machines and cable
    3.Installtion and commmsioning,after sales service.
    4.Packaging customization
    5.Customized,saving 10%-20% year-on-year cost


    7.HOOHA cable equipment technical advantages
    1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
    2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable.
    3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared with
    the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.
