Single Core Building Wire And Cable Making Machine from 1 to16 Mm2

Ask Lasest Price
Brand Name :	HOOHA
Model Number :	800/90
Certification :	CE,ISO
Price :	negotiable
Payment Terms :	T/T, L/C
Supply Ability :	20 units/month
Delivery Time :	45 working days

Add to Cart

Product Details
Company Profile

Single Core Building Wire And Cable Making Machine from 1 to16 Mm2

Single Core Building Wire And Cable Making Machine from 1 to16 Mm2

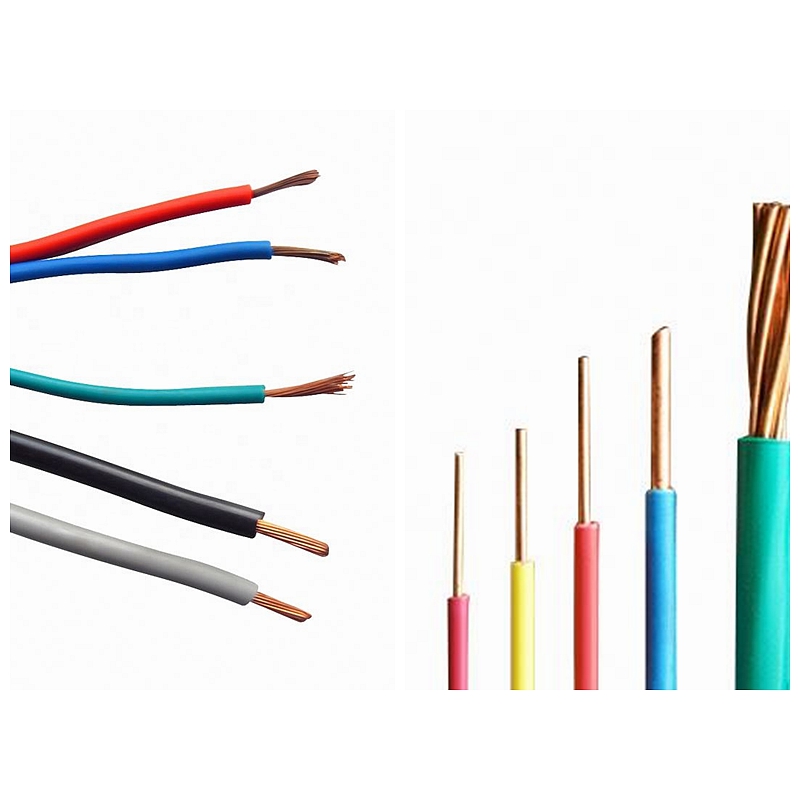

1.Construction : Copper wire stranded , PVC Insulated (yellow + green , black , white etc )

A. bare copper conductor stranded :

Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .

B.The specifications of 800-1000 bunching machine

Machine model	800	1000
Twisting	Apply to over 7 threads silver plated wire, tin plated wire, enamelled wire, naked copper wire, CCS,CCA etc supper fine conductor and cored wire twisting.
Twisting section	10 mm2	16mm2
Diameter of single wire	Φ0.29-Φ1.0mm	Φ0.38-Φ1.7mm
Twisting distance	27.71mm-130.56mm	35-200mm
Gross weight	MAX 900kg	MAX 1200kg
Max highaxis rotation speed	1200RPM(2400t/min)	800RPM(1600t/min)
Twisting direction	To left or right
Flat cable	Polish rod traverse unit, pitch&throw adjustable
Taking-up tension track	Tension adjustable, pulled wire no deformation
Auto-stop machine	1.Autonomic brake in case of broken wire interon or extenior 2.When the couner has to your clesived our put length, warning sound will be heard and the machine stops.
Machine using bearing	Main bearing made in Sweden, others in Japan
Power	15HP controlled inverter	25HP controlled inverter
Noise level	Approx 75dB	Approx 80dB
Machine Dimension(mm)	(L)3673×(W)1550×(H)1650	(L)4473×(W)2200×(H)2300
Net weight	Approx 5000kg	Approx 8000kg

Single Core Building Wire And Cable Making Machine from 1 to16 Mm2

2. PVC insulated --- 80 +40 cable extrusion machine

Application

Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire , house wire , data cable , network cable etc insulation

machine devices as reference
1. Magnetic Power Tension Pay Off stand
1. double head tension pay off stand
2. Dancer / straigter
3. 80mm Main extruder
4. Automated loader & dryer
5. Auto central Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer( selectable )
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. Master control cabinet
17. 35 strip extruder machine

Model:	HOOHA-80+40	Consisting Components
Pay off bobbin size:	400-630 mm	Pay off stand	1
Screw size:	80mm	Dancer	1
Motor control:	30 kw inverter	80mm extruder	1
Screw speed:	110 rpm	loader & dryer	1
Output capacity:	210 kg/hr	Crosshead	1
Max. accumulating length	200 m	Moving trough	1
Finished cable diameter	2.0---20.0 mm	Main cooling trough	1
Max. line speed:	200 m/min	Water wiper	1
		Diameter controller	1
		Mark printer	1
		Accumulator	1
		Capstan	1
		Spark tester	1
		Meter counter	1
		Take up	1
		Control box	1

Single Core Building Wire And Cable Making Machine from 1 to16 Mm2

Q: What is your company advantage to support customer ?

HOOHA is a manufacturing and trading combo for wire and cable industry field , with more than 15 years full experience and a professional team on sales and technical .

At HOOHA our mission is to be a team of highly skilled experts who collaborate to bring the best quality products, custom solutions, and innovative thinking to our customers.

1. Our pre-service team for machine designer ( 5 member) and wire and cable engineering (5) are over 15 years experience;
2. After service on electricity engineer (10), machinical engineer(8),software engineer(5) are over 10 years experience;
3. Sales team who is specialized in wire and cable engineering field ( 10 ) , are over 8-10 years experience in focus ;
4. Production self-inspection team ( 5 ) , are over 15 years experience .

1.Who are we?
Hooha company Limited is based in Hongkong, china.Factory is located in dongguan,China.Established in 2003, with 19 years of experience in wire and cable field trade.It only takes 1 hour from our company to guangzhou/shenzhen airport.

2.How can we guarantee quality?
1.Online inspect facotry,production,shipment,and aftersales services.
2.pre-production sample before mass production.
3.Highstandards and strict requirements, key accessories of cable equipment only use imported parts.
4.Mechnical parts gurantee 12months, elcctrical parts 12 months.
5.online communication,remote assistance,solve customer problem 24 hours,when the problem can not solved online,we will dispatch engineer to go aboard to the problem on-site for the customer.

3.What can you buy from us?
1.material for wire and cable
2.turkey project for wire and cable
3.extrusion line/bunching/twisting
machine for wire and cable
4.accessorries for cable equipments

4.How long is your delivery time?
1.Generally, 3-7 days for goods in stock
2.30 days for goods after realsing order.
3.project will take 60-90 days

5. Will the price be cheaper if the order is placed in bulk?
Yes,Of course,it will make 10%-12% discount

6.What services can we provide?
1.Plant solution and machine design.
2.technical support at machines and cable
3.Installtion and commmsioning,after sales service.
4.Packaging customization
5.Customized,saving 10%-20% year-on-year cost

7.HOOHA cable equipment technical advantages
1.In order to ensure the high quality of products,we start from ensuring the accuracy of accessories, and the main accessories of products(Casing, end cover, shaft and wheel) they are all manufactured by CNC machining center,The main purchased parts are NSK Bearings from Japan,American gates belt,taiwan TTO Fluoro rubber oil seal,The working efficiency of the equipment is improved, the noise is reduced, and the service life of the equipment is extended to more than 10 years.
2.High precision dynamic balancing of all equipment rotors,The dynamic balance level is G1, reducing the unbalance to less than 1G, and the long-term operation is safe and reliable.
3.The bearing adopts double row cylindrical roller bearing and double row self-aligning roller bearing,compared with
the deep groove ball bearing, the bearing has high fatigue strength, long service life, stable operation and small vibration.

Single Core Building Wire And Cable Making Machine from 1 to16 Mm2
