Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A

    Buy cheap Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A from wholesalers

    Buy cheap Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A from wholesalers
    • Buy cheap Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A from wholesalers
    • Buy cheap Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A from wholesalers

    Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH52029
    Certification : ISO CE
    Price : 50000-52000USD/pc
    Payment Terms : L/C, T/T, Western Union
    Supply Ability : 1 pc/month
    Delivery Time : 30 working days
    • Product Details
    • Company Profile

    Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A

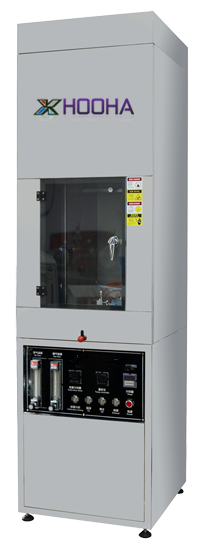

    HH52029 Single Wire and Cable Vertical Flame Propagation Tester


    Product description:


    Single wire and cable vertical flame propagation tester is in accordance with IEC 60332-1-2:2004 <Test on electric and optical fiber cables under fire conditions-Part 1-2: Test for vertical flame propagation for a single insulated wire or cable>. Obtain and determine wire and cable’s capability of prevent the fire from spreading under fire condition


    Standards:


    • GB/T18380.(11-12)—2008

    • GB/T5169.14-2007


    Technical parameters:


    • Stainless steel control cabinet, fume cupboard and metal cover is all-in-one type, which is easy to operate and good looking

    • Metal cover: 1200mm (H)×300mm(W)×450mm(D). The front is open, the top and bottom are sealed

    • Blowtorch: nominal power: 1kw

    • Control mode: When the set burning time reaches the preset time, the

    machine stops supplying the fire automatically

    • Burning device: automatic high pressure ignition

    • Flowmeter: air flowmeter: 1.5~15L/min, gas flowmeter, 0.1~1L/min

    • The separately controlled exhaust fan is installed at the top

    • Flame detection device: one imported thermocouple of φ0.5, K type,

    one electrolytic copper billet φ9mm, one each weight is 10g±0.05g, a

    suit of temperature and time display device


    Specifications:


    • Overall dimensions: 630mm(W)×600mm(D)×2170mm(H)

    • Power supply: AC 220V, 50/60Hz, 2A

    • Air source: propane and air( prepared by users)


    Single Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2ASingle Wire And Cable Vertical Flame Propagation Test Machine HH52029 AC 220V 2A

    Quality Stainless Steel Cable Testing Machine Flammability Test Equipment HH52029 AC 220V 2A for sale
