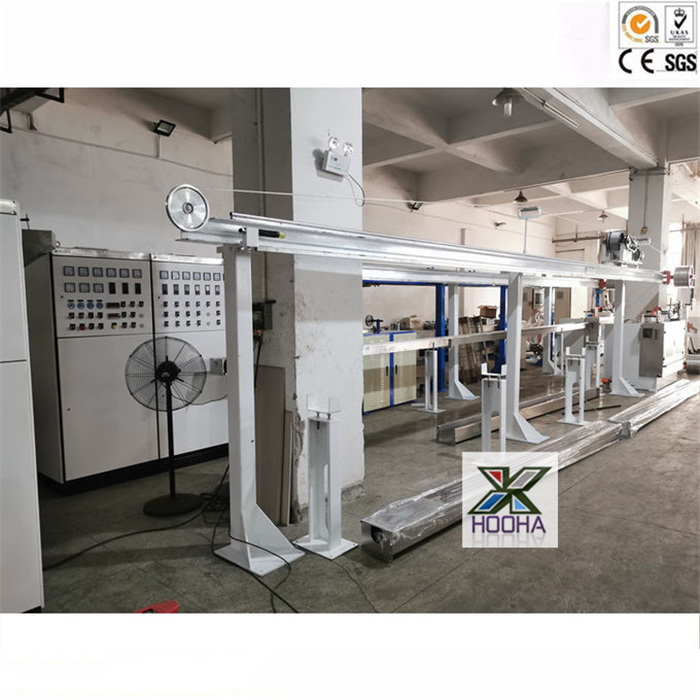

Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

    Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers

    Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers
    • Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers
    • Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers
    • Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers
    • Buy cheap Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine from wholesalers

    Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-70/80/90MM
    Certification : CE/SGS/ISO
    Price : US$8690-8580/1set
    Payment Terms : L/C,T/T, Western Union
    Supply Ability : 10set/1 month
    Delivery Time : 35Working Days
    • Product Details
    • Company Profile

    Single - Screw Wire Extrusion Machine 70 80 90 Mm Wire Extruder Machine

    PVC insulated 90mm Cable making machine and cable extrusion line for power cable
    1. Application:

    Applied to BV,BVV,BVR,RV,N ylon sheath,and halogen-free environment-friendly building wire.
    2. Specifications:
    Machine modelHH-WE-70HH-WE-80HH-WE-90
    Pay-off line typeDouble axes/dynamic drum take-upDouble axis way
    Pay-off bobbin size(mm)400-630630-800
    Screw diameter(mm)φ70φ80φ90
    L/D of screw25:1 BM type
    Extrusion capacity(kg/hr)140200250
    Main unit power(HP)304050
    Cooling deviceSingle layer/double
    Accumulator capacity200m
    Capstan power(HP)57.57.5
    Wire speed(meter/minute)0-5000-4500-400
    Take-up line typeDouble axes bundle packing /axis packing/swaying tray coiler packingDouble axis way/axis
    Receving reel500mm-630mm
    Take-up line power(HP)557


    3. Spare Parts Brands:

    Motor: Dongguan Motor , Teco, ABB, Siemens
    Inverter : Japan Yaskawa, Siemens, Taiwan Teco
    Temperature Control Meter: Japan RKC;
    Auxiliary Relay: Japan Omron ;
    Ammeter and Voltmeter: Taiwan Risesun ;
    Indicator, Switch and Button: Taiwan TEND ;
    Contactor: Taiwan Shihlin
    Line Speed Meter: Taiwan FOTEK/Yangming
    Bearing : NSK, SKF



    4. Consisting Components:

    1, double-shaft pay-off rack
    2, straightener platform
    3, main extruder
    4, automatic dryer and hopper
    5, electric apparatus main control cabinet
    6, Double layer movable trough
    7, laser diameter gauge or Digital Diameter controller
    8, high speed printing machine
    9, double-wheels capstan
    10, Meter counter
    11, horizontal type wire-accumulator
    12, power frequency sparker
    13, double-shaft take-up machine


    5. After Service:

    1). Delivery dates: 45 days
    2). Payment: TT or L/C
    3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online


    6. Contact us:


    Http:www.hoohahk.com

    Add: 3 rd Floor, Building D, No.38 Houhu Road, Humen Town, Dongguan City, Guangdong Province,China


    7. Factory & Workshop &Warehouse


    Company nameHOOHA Co.,Ltd
    Established2003
    Main productsupcast and continuous casting machine,wire extrusion machine,wire stranding machine,wire drawing machine,test machine and so on.
    Value added serviceInclude factory planning, cable raw material supply,cable equipment layout,cable technology export,customer training and cable testing laboratory construction.
    Factory locationHumen Town,Dongguan City,Guangdong province.
    Manufacturing Center4000 sqm
    ShowroomMore than 2000 sqm.



    Cooperating with German spare parts and production software and using best quality materials and intelligent machine, HOOHA's products maintain high quality with strongly competitive price.


    8. Package


    Two methods: RTA (Ready to assemble, Flat Pack) and fully assembled.

    Plywood frames and Stretch film are used to avoid breakage in transit.


    9. FAQ


    QuestionAnswer
    MOQ1 set
    Lead Time30~40 working days since starting producing.
    Warranty Time1-year quality guarantee for the machine
    Payment Terms30% T/T in advance for production material, 70% in the period of shipment.
    Installation
    (3 choices )
    a. HOOHA's Chinese installation team.
    b. HOOHA's overseas installation co-partners in your country.
    c. DIY Guide: HOOHA supports online guidance.
    How to StartContact us and leave your contact email and phone number.

    10. Why choose us?


    1. We are the cable equipment manufacturer.

    2. Professional engineer,long-term to research and development for to cable equipment .

    3. High frequency capacity manufacturer machine is provide .Guarantee the machine all weather running .

    4. Our machine use the international qualified brand,like siemens ,omron,nsk,lg etc.

    5. Technical support and spare parts service.

    6. Well-experienced in overseas to support customer with technical,training,operating.

    7. Responsible and Good communication and customer service skills,and save time and human cost for customers.

    8. Complete Foreign Trade Team.

    9. Working efficiently,quickly response to customer needs.



    11. Where are we?


    Hongkong airport to Humen by boat 2 hours
    Guangzhou airport to Humen by car 2 hours
    Shenzhen airport to Humen by car 1 hour
    Guangzhou South high speed train station to Humen 20 minutes
    Shenzhen North high speed train station to Humen 20 minutes
