    Low - Noise PVC Insulated Wire and Cable Manufacturing Machine Cable Extruder Equipment Wire Extrusion

    Ask Lasest Price
    Brand Name : HOOHA
    Model Number : HH-70MM
    Certification : CE/ISO
    Price : US$57,000-70,000/1set
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 15set/1 month
    Delivery Time : 25-35Working Days
    • Product Details
    • Company Profile

    Low - Noise PVC Insulated Wire and Cable Manufacturing Machine Cable Extruder Equipment Wire Extrusion

    Algeria Wire Manufacturing Machine , Cable Extruder Equipment Low - Noise

    More information :
    Youtube:https://www.youtube.com/channel/UCrRUG2MnVoi8rfQ6FK2vYow
    Product Description

    PVC power cable : twin cores , PVC insulated single or multiple copper conductors, sheathed with PVC layers.


    1. Construction : Solid Bare Copper Conductor or copper wire stranded , PVC Insulated ( yellow + green , black , white etc )


    A. bare copper conductor stranded :


    Suitable for above seven strand of the silver jacketed wire, tinned wire, enameled wire, bare copper wire, copper-clad steel, copper cladding aluminum .


    Algeria Wire Manufacturing Machine , Cable Extruder Equipment Low - Noise

    Algeria Wire Manufacturing Machine , Cable Extruder Equipment Low - Noise

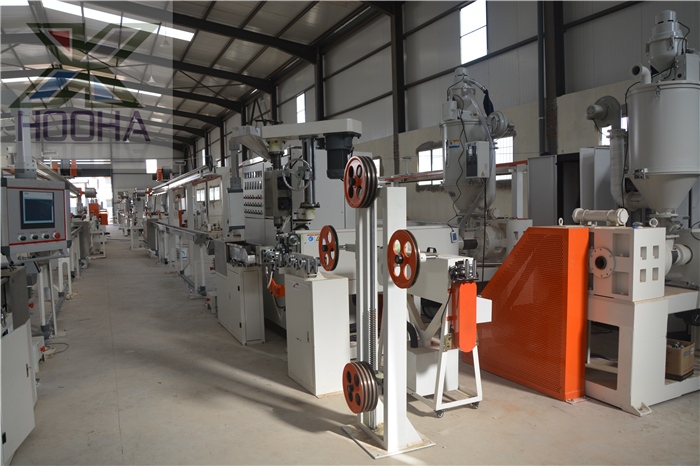

    2. PVC insulated --- 80 +35 cable extrusion machine


    Application : Suit for PVC /PE plastic extrusion , maily used in fire alam cable , electrical wire ,

    house wire , data cable , network cable etc insulation


    machine devices as reference


    1. Magnetic Power Tension Pay Off stand

    1. double head tension pay off stand
    2. Dancer / straigter
    3. 80mm Main extruder
    4. Automated loader & dryer
    5. Auto central Crosshead
    6. Single /Double layer Moving trough
    7. Main cooling trough
    8. Water wiper
    9. Digital Diameter controller
    10. Mark printer( selectable )
    11. Accumulator
    12. Capstan
    13.15KV Spark tester
    14. Meter counter
    15. Dual shaft type Take up
    16. PLC Master control cabinet

    17. 35 strip extruder machine


    HOOHA -extrusion line
    NOModelScrewMain Extruder OutputMain extruder Motor PowerCo-Extruder OutputCo -extruder
    Motor Power
    DiaL/DRotation
    (mm)RatioSpeed
    (r/min)(kg/h)(kw)(kg/h)(kw)
    130302540~10010~127.500
    250502640~10060~701500
    350+502640~10060~701510~123.7
    465652640~10080~1002200
    570+35702640~100110~1303010~123.7
    670+40702640~100110~1303030~4011
    780802640~100180~2003700
    880+40802640~100180~2003730~407.5
    980+50802640~100180~2003760~7011.25
    1090902630~90240~2605500
    1190+50902630~90240~2605530~407.5
    121001002630~903905500
    131201202630~906409000
    141501502630~9086011000
    NOProduct sizeCrossheadHeating Zones of cylinder
    Line Speed
    (mm)(m/min)(kw)
    10.15~0.800.2~1.010~600FixedSingle4/6(U7)4 zone 2.4kw
    20.5~4.00.8~5.010~600FixedSingle4/6(U7)4 z * 2.4kw
    30.5~4.00.8~5.010~600FixedSingle+ stripe4/6(U7)4 z * 2.4kw
    41.0~102.0~1210~600Fixed /manualSingleU7~U144 z * 3.0kw
    51.6~122.0~1510~700Fixed /manualSingle+ stripeU7~U145 z * 4.0kw
    61.6~122.0~1510~700Fixed /manualSingle+ stripe/skinU7~U145 z * 4.0kw
    72.0~203.0~2510~700Fixed /manualSingleManual centering5 z * 3.6kw
    82.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    92.0~203.0~2510~700Fixed /manualSingle+ stripe/skinManual centering5 z * 3.6kw
    105.0~359~3010~700Fixed /manualSingleManual centering5 z * 4.5kw
    115.0~3510~3310~700Fixed /manualSingle+skinManual centering5 z * 4.5kw
    124.0~305.0~5010~220manualSingleManual centering5 z * 4.5kw
    134.0~3010~8010~150manualSingleManual centering5 z * 4.5kw
    144.0~3015~12010~100manualSingleManual centering5 z * 4.5kw

    HOOHA -extrusion line
    NOModelPay offTension ControllerCooling troughCapstan / Caterpillar
    1st Cooling2nd Cooling
    BobbinPowerwheelPower
    Dia.Dia.
    (mm)(kw)(mm)(kw)(m)(m)
    130300~40043002.5kg.m1.54m singleCapstan
    250400~6307.54005.0kg.m1.54m*2 doubleCapstan
    350+400~6307.54005.0kg.m1.54m*2 doubleCapstan
    465500~6307.54005.0kg.m1.56m*2 doubleCapstan
    570+35500~6307.54005.0kg.m1.56m*2 doubleCapstan
    670+40500~6307.54005.0kg.m1.56m*2 doubleCapstan
    780630~8007.550010kg.m1.56m*2 doubleCapstan
    880+40630~8007.550010kg.m26m*2 doubleCapstan
    980+50630~8007.550010kg.m26m*2 doubleCapstan
    1090630~10007.580010kg.m26m*2 doubleCapstan/ Caterpillar
    1190+50630~10007.580010kg.m26m*2 doubleCapstan/ Caterpillar
    121001250~16007.580010kg.m412m singleCaterpillar
    131201600~22007.5125010kg.m412m singleCaterpillar
    141502200~31507.5160010kg.m412m singleCaterpillar
    NOCapstan / CaterpillarAccumulatorTake upLine Length
    PowerPowerBobbinPower
    (KW)(kg.f)Dia.(kw)
    (mm)(m)
    1Capstan2.2Φ375Φ1800.75300~4002.212~15m
    2Capstan4Φ375Φ180~3000.75~1.5400~630420~28m
    3Capstan4Φ375Φ180~3000.75~1.5400~630420~28m
    4Capstan4Φ500Φ3001.5630~800420~35m
    5Capstan4Φ500Φ300~4201.5630~800420~35m
    6Capstan4Φ500Φ300~4201.5630~800420~35m
    7Capstan4Φ630Φ4201.5630~1000425~38m
    8Capstan4Φ630Φ4201.5630~1000425~38m
    9Capstan4Φ630Φ4201.5630~1000425~38m
    10Capstan/ Caterpillar5.6Φ630Φ420~8001.5/3.7800~12505.528~40m
    11Capstan/ Caterpillar5.6Φ630Φ420~8001.5/3.7800~12505.528~40m
    12Caterpillar5.61250~22005.532~55m
    13Caterpillar5.61600~25005.532~55m
    14Caterpillar5.62200~31505.532~55m



    4. Afetr service


    1). Delivery dates: 25 days
    2). Payment: TT or L/C
    3). Packing: Wood packing and PE plastic packing ensure the goods safety on the transportation.
    4). Install and training service: 2 professional engineers who has over 5 years overseas install and cable manufacture training experience.
    5) after service phone number online



    5. Professional and Strong Manufacture and Sells Team



    GEM YOUNG R&D TEAM
    NamePositionworking experienceMain researchsuccessful project
    zanyang XieGeneral engineer10 yearsDrawing and designerpower cable machine
    xiaohua HuVice general engineer8 yearsDesignercate5 cable machine
    jingxin Liucable technology engineer15 yearscable making designerteflon cable machine
    weihua Lielectrical engineer7 yearselectrical researchover seas machine install
    kangyou Wuproduce manager6 yearsproduct producecar cable machine
    Jacksells manager5 yearsexport service3 times overseas after service


    Exhibitions
    In 2019, Hooha participated in the Thailand Equipment Show held in Thailand
    In 2019, Hooha participated in the Equipment Show held in Moscow, Russia
    Shanghai exhibition 2014
    Guangzhou exhibition 2019
    India exhibition
